Natalbany
Lumber Co.
New
Orleans, Natalbany & Natchez Railroad (1902-1938)
36" gauge, converted to standard gauge by 1904, 45 and 60-lb rail
Headquarters:
Mill Location: Natalbany, LA (Tangipahoa Parish)
Mill Capacity:
Years of Operation: 1902-1938
Miles Operated: NON&N Main Line: Natalbany, LA to Grangeville, LA, 28.226 miles.
Locomotives Owned:
|
Equipment:
1907: 20 miles, 5 locomotives, 57 cars.
1910: 20 miles, 5 locomotives, 57 cars.
In
1926 the NON&N consisted of 29 miles of railroad, 155 freight cars, 5
passenger cars, 16 misc. cars. (Lima Card) In addition, the lumber company
reported 50 miles of railroad.
|

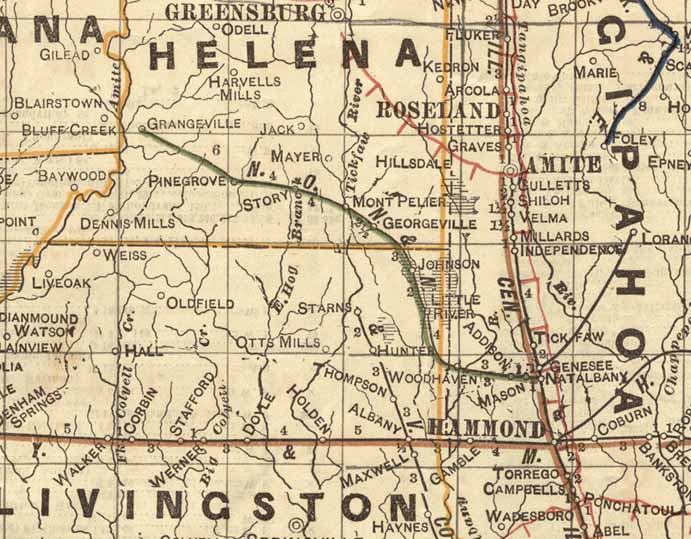

Click Map for Larger Version |
History
by Tony Howe:
On
May 29, 1894, the Natalbany Lumber Co. purchased a sawmill at Natalbany, 3
miles north of Hammond, from Caryl Young and Henry Dakin known as the
"Live Oak Mill" that included a narrow gauge logging railroad for
$45,000. The new owners greatly expanded the operation in the next decade.
They converted the railroad to standard gauge by 1902. The railroad was
incorporated as the New Orleans, Natalbany & Natchez Railroad on June 5,
1902. The railroad was completed to Grangeville by 1916, a distance of 28.27
miles. Natalbany Lumber also had trackage rights over the Baton Rouge,
Hammond & Eastern between Hammond and Baton Rouge and had logging spurs
in the vicinity of Livingston. In 1929, the railroad was extended from
Grangeville west to a connection with the Y&MV just north of Slaughter.
Natalbany Lumber Co. obtained trackage rights over the Y&MV to run log
trains at least as far as Gloster, MS. Natalbany Lumber was owned by the
Denkmann Lumber syndicate of Rock Island, Ill. The mill at Natalbany burned
in 1938, and the railroad was abandoned shortly thereafter. The portion of
the railroad from Slaughter to near Grangeville was sold to the Feliciana
Eastern and used to haul gravel for several more years.
|

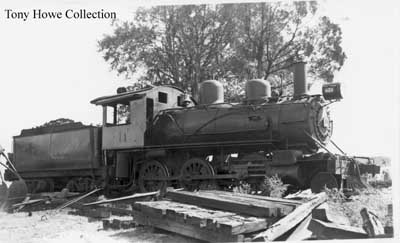

Natalbany Lumber No. 12 was a former NO&NE 2-6-0 bought by the
lumber company in 1915. |
An early view of NON&N No. 9, an ancient 4-4-0. |

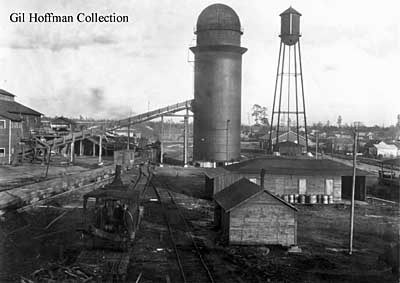

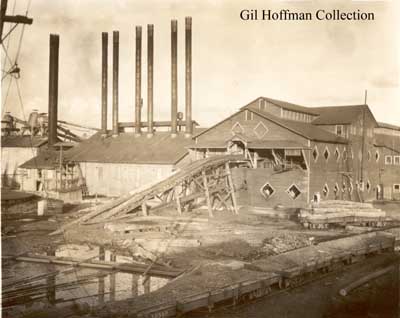

The Natalbany Lumber Co. mill at Natalbany at its peak. |
This photo and the one on the left were part of a panoramic photo
looking east from the mill area towards the IC depot. |

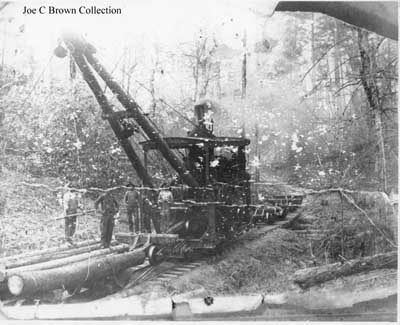

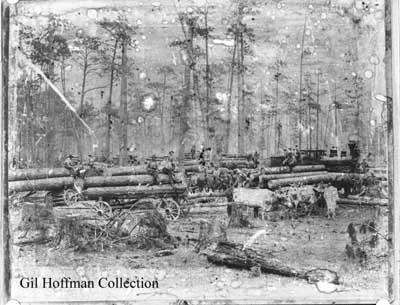

An early view thought to be on the Natalbany Lumber Co. railroad when
it was still narrow gauge. Pictured is a Clyde Decker loader. |

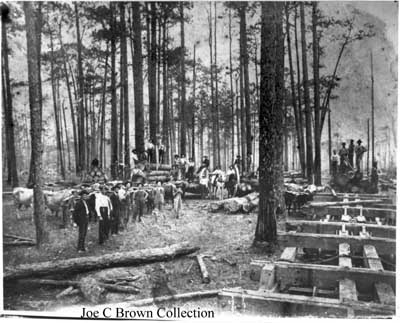

Another early Natalbany log loading scene. |

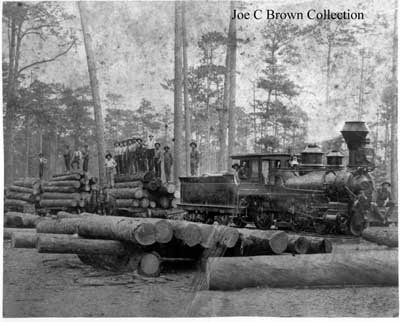

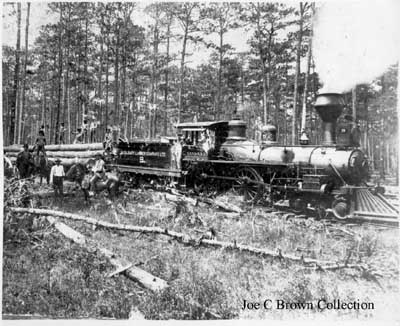

Natalbany Lumber Co. 36" gauge 2-6-0 about 1900. |
Another view of the same scene on the left. Both photos came from two
different sources! |
NON&N 11 was an old Lake Shore & Michigan Southern 2-6-0. |

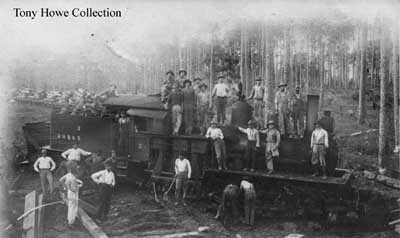

Shay No. 2 was lettered for the NON&N. The wreck happened near Pine
Grove in 1914. |

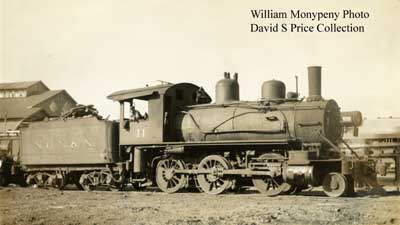

Another nice view of NON&N No. 11 at Natalbany on February 6, 1935. |

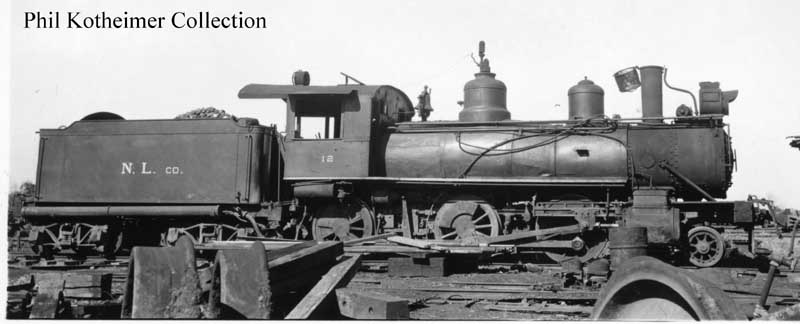

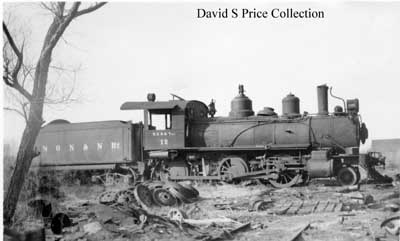

NON&N 12 at Natalbany on February 6, 1935. |

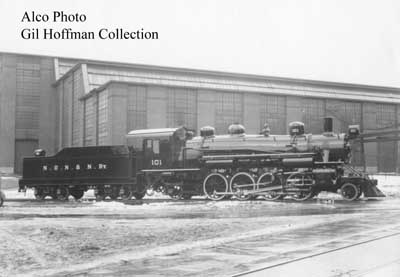

NON&N 101 was built new by Alco in 1930. |

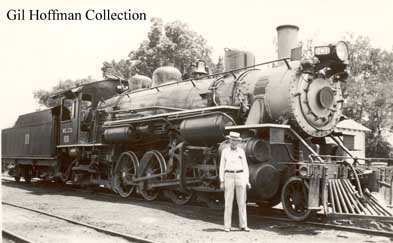

A fabulous photo of trim 2-8-2 No. 101 lettered for Natalbany Lumber
Co. |

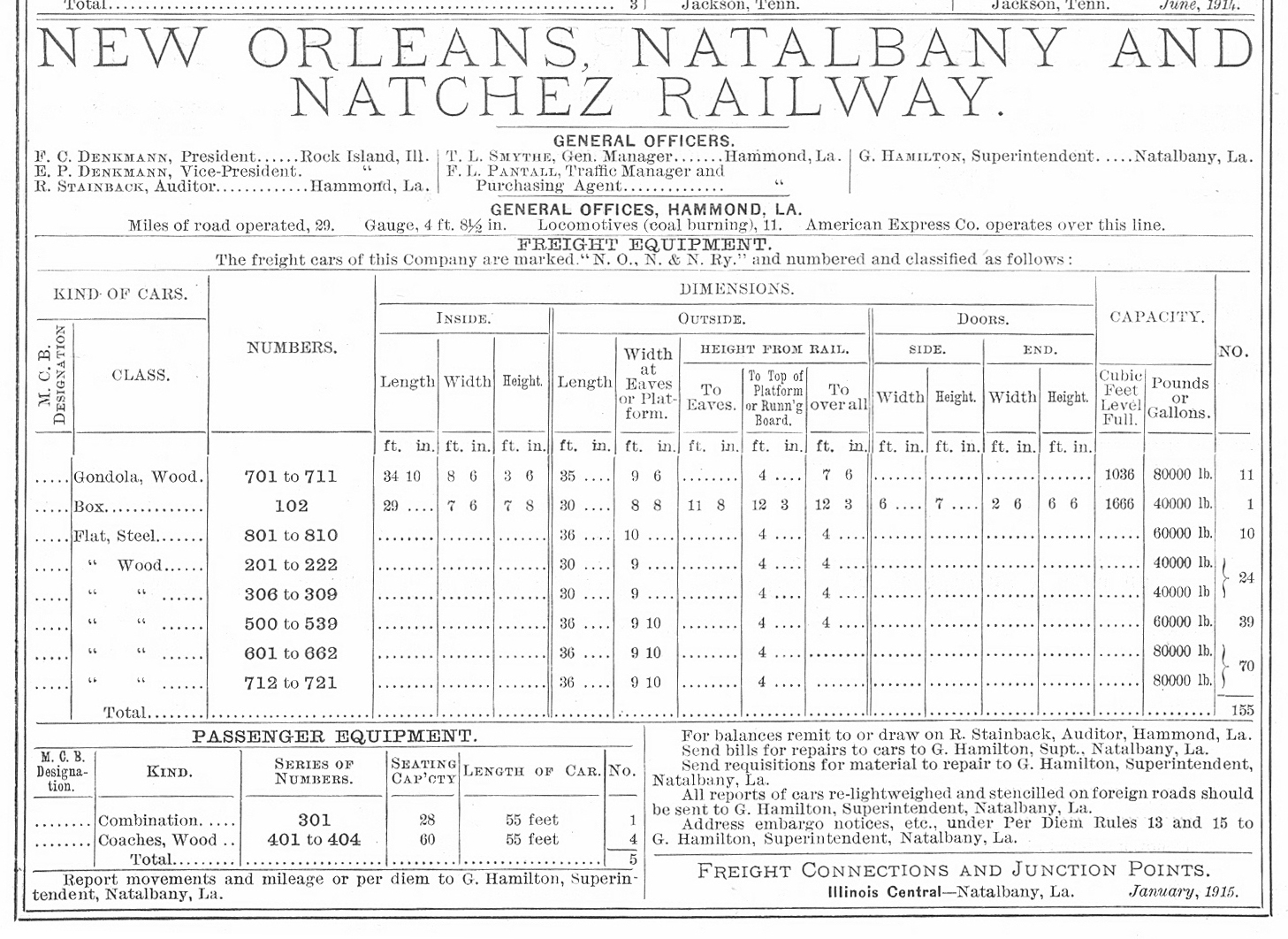

January 1915 Official Railway Equipment Register- Art Richardson Collection
|
|

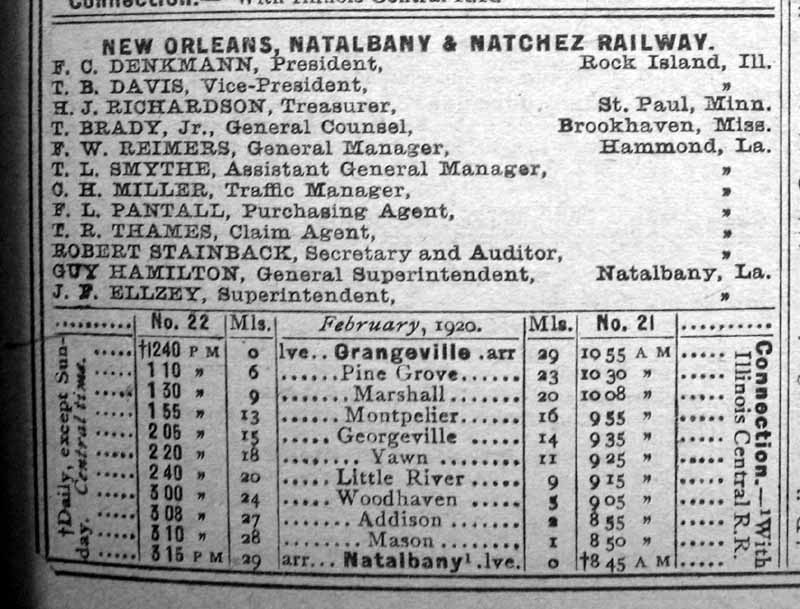

September 1910 Official Guide of the Railways |
|

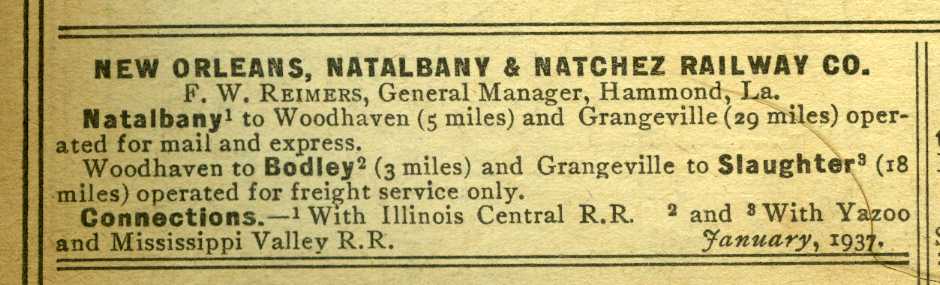

March 1937 Official Guide of the Railways- Tony Howe Collection |
|
ROSTER by Judge Leon Ford III and Gil Hoffman:
Road
No.
|
Type
|
Builder
|
C.N.
|
Date
|
Cyls.
|
Dri.
Dia.
|
Engine
Wt.
|
Previous
Ownership
|
Disposition
|
1
|
50-2
Shay
|
Lima
|
2037
|
1/1908
|
3-11x12
|
32
|
100000
|
New for New Orleans, Natalbany &
Natchez.
|
Natalbany
Lumber Co. #1
Apollonia
Lumber Co. #1, Pelahatchie, MS, by 8/1924.
Pearl River Valley Lumber Co. #1,
Canton, MS, on 2/7/1929.
|
2
|
50-2
Shay
|
Lima
|
2038
|
1/1908
|
3-11x12
|
32
|
100000
|
New for New Orleans, Natalbany &
Natchez.
|
Natalbany Lumber Co. #2
|
1st
3
|
2-8-0
|
Baldwin
|
6146
|
4/1882
|
15x20
|
36
|
60000
|
Denver
& Rio Grande Ry. #295
Built
36" gauge.
Denver
& Rio Grande Western Ry. #295,
on
7/12/1886.
Rio
Grande Western Ry. #110, in 6/1889.
Rebuilt
to standard gauge in 3/1890.
Re.
#10 in 1892.
Fitz-Hugh
Luther Co., Chicago, IL (dealer),
on
9/27/1903.
George
Cousin, Des Allemands, LA
Natalbany
Lumber Co. 1st #3, by 10/1906.
Baldwin class 10-24½ E 65
|
|
2nd
3
|
50-2
Shay
|
Lima
|
2159
|
5/1909
|
3-11x12
|
32
|
100000
|
Argentine
Central Ry. #7, Silver Plume, CO
Built
36" gauge.
Argentine
& Grays Peak Ry. #7, Silver Plume, CO, in 1913.
Amos
Kent Lumber & Brick Co. #7, Kentwood, LA, by 8/1918. Too
heavy.
Natalbany Lumber Co. 2nd #3, in
5/1921.
|
Rebuilt to standard gauge in 6/1921.
|
1st
4
|
28-2
Shay
|
Lima
|
446
|
9/1893
|
3-10x10
|
28
|
56000
|
Log
Mountain Coal, Coke & Timber Co. #446, Pineville, KY
Louisville
& Nashville R.R. 1st #1200,
in
9/1901.
Natalbany Lumber Co. #4, in 1904.
|
Wrecked and scrapped, 1911.
|
2nd
4
|
70-3
Shay
|
Lima
|
2308
|
5/1910
|
3-12x15
|
36
|
140000
|
Natchez,
Columbia & Mobile #4, Norfield, MS
Butterfield
Lumber Co. #4, Norfield, MS
Denkmann
Lumber Co. #4, Norfield, MS,
on
1/22/1918.
Natalbany Lumber Co. #4, ca. 1933.
|
Pearl
River Valley Lumber Co. #17, Canton, MS
Scrapped 5/1938.
|
1st
5
|
60-3
Shay
|
Lima
|
577
|
9/1899
|
3-13x13
|
32
|
135000
|
Kaul
& Hall Lumber Co. #72, St. Marys, PA
Re.
#172 about 1911.
Kaul
Lumber Co. #10, Tuscaloosa, AL,
in
1912.
W.
A. Zelnicker Supply Co., St. Louis, MO
Tallahala
Lumber Co. #172, Ora, MS
Re.
#5.
Natalbany Lumber Co. #5, ca. 1921.
|
|
2nd
5
|
4-6-0
|
Vulcan
|
2045
|
11/1913
|
18x24
|
50
|
109500
|
James
H. Corbett & Son Co. #5, West Mosgrove, PA
New
Orleans, Natalbany & Natchez #5,
by
6/1926.
|
King-Edwards-Fuller
Co. #5, North St. Francisville, LA
King
Lumber Industries #5, Canton, MS
Canton
& Carthage R.R. #5, Canton, MS
Scrapped 1956.
|
6
|
4-6-0
|
Vulcan
|
2136
|
4/1913
|
18x24
|
51
|
108000
|
James
H. Corbett & Son Co. #6, Kittaning, PA
New Orleans, Natalbany & Natchez
Ry. #6
|
|
7
|
4-4-0
|
Baldwin
|
4873
|
12/1879
|
17x24
|
61
|
71000
|
Cincinnati
Southern Ry. #34
New
Orleans & Northeastern #201, in 12/1884.
Re.
2nd #210.
Watkins
Machine & Foundry Co., Hattiesburg, MS (dealer).
New
Orleans, Natalbany & Natchez #7,
by
12/1912.
Baldwin class 8-28 C 215
|
In service 6/30/1916.
|
1st
8
|
4-6-0
|
Baldwin
|
3386
|
8/1873
|
18x22
|
56
|
|
Central
Railroad of New Jersey #289
Re.
#825 in June 1903.
J.
E. Bowen, Norfolk, VA (dealer).
W.
B. Seymour, Hattiesburg, MS (dealer),
in
8/1906.
Pine
Lumber Co., Mish, MS
New
Orleans, Natalbany & Natchez #8,
by
5/1912.
Baldwin class 10-30 D 25
|
Dropped by 6/30/1916.
|
2nd
8
|
4-6-0
|
Lima
|
|
|
16x24
|
|
100000
|
Unknown.
New Orleans, Natalbany & Natchez
#8, on ?
|
In service 6/30/1916.
|
1st
9
|
4-4-0
|
|
|
|
|
|
|
Unknown.
New
Orleans, Natalbany & Natchez #9, on ?
Lettered “U. S.”
|
Dropped by 6/30/1916.
|
2nd
9
|
2-6-0
|
Baldwin
|
10892
|
5/1890
|
16x24
|
50
|
76000
|
Manistique
Ry. #3, Grand Marais, MI
New
Orleans, Natalbany & Natchez #9, on ?
Baldwin class 8-26 D 96
|
In
service 6/30/1916.
Helena
Land & Lumber Co., Helena, AR,
by 5/1923.
|
10
|
0-4-0
|
CRI&P
|
|
1884
|
15x24
|
52
|
61000
|
Chicago,
Rock Island & Pacific #30-32
New Orleans, Natalbany & Natchez
#10, on ?
|
In service 6/30/1916.
|
11
|
2-6-0
|
LS&MS
|
|
1905
|
19x24
|
57
|
|
Lake
Shore & Michigan Southern E-46 or
E-47
class.
New Orleans, Natalbany & Natchez
#11, on ?
|
In
service 6/30/1916.
Flint
Sand & Gravel Co. #11, Amite, LA,
in 1938.
|
12
|
2-6-0
|
Baldwin
|
7442
|
9/1884
|
19x24
|
52½
|
94700
|
New
Orleans & Northeastern R.R. #227
Re.
#245.
Natalbany
Lumber Co. #12, in 1915.
Baldwin class 8-32 D 87
|
|
13
|
2-8-2
|
Baldwin
|
40734
|
10/1913
|
20x24
|
50
|
164700
|
Fernwood
Lumber Co. #13, Fernwood, MS
Apollonia
Lumber Co. #13, Pelahatchie, MS
Natalbany
Lumber Co. #13, on ?
Baldwin class 12-34¼ E 27
|
Jahncke
Service Co. #13, Bluff Creek, LA
Scrapped
|
101
|
2-8-2
|
A/Schen.
|
68279
|
1/1930
|
20x28
|
56
|
178000
|
New
for New Orleans, Natalbany & Natchez
|
Denkmann
Lumber Co. #101, Canton, MS
Canton
& Carthage #101, Canton, MS
Scrapped 2/1955 at Canton, MS.
|
201
|
2-8-2
|
A/Schen.
|
65349
|
9/1924
|
20x28
|
56
|
178000
|
Natchez,
Columbia & Mobile #201, Norfield, MS
New
Orleans, Natalbany & Natchez #201,
ca. 1933.
|
Denkmann
Lumber Co. #201, Canton, MS, ca. 1938.
Canton
& Carthage #201, Canton, MS
Scrapped 2/1955 at Canton, MS.
|
204
|
2-8-2
|
A/Schen.
|
67665
|
11/1928
|
23x28
|
56
|
254000
|
Denkmann
Lumber Co. #204, Norfield, MS
Equipped
with tender booster.
New
Orleans, Natalbany & Natchez #204,
ca. 1933.
|
Louisiana
& Arkansas #544, in 1934.
Scrapped 2/1953.
|
|
