Mississippi Export #60

SPECIFICATIONS:
Builder: Electro-Motive Division (EMD)
Model: GP-9
Built: 10-1957
Serial number: 23985
Frame number: 5557-1
Engine: 567C 16 cylinder
Trucks: B-B
Weight: 249,000 lbs.
Fuel (gallons): 800 gallons
Sand (cu. feet): 18 cu. ft.
Horsepower: 1750
Traction Motors: GM - D37 (four)
Tractive Effort: starting: 62,750 lbrs. @ 25%  continuous: 44,600 lbs. @ 9.3 mph
Gearing: 62:15

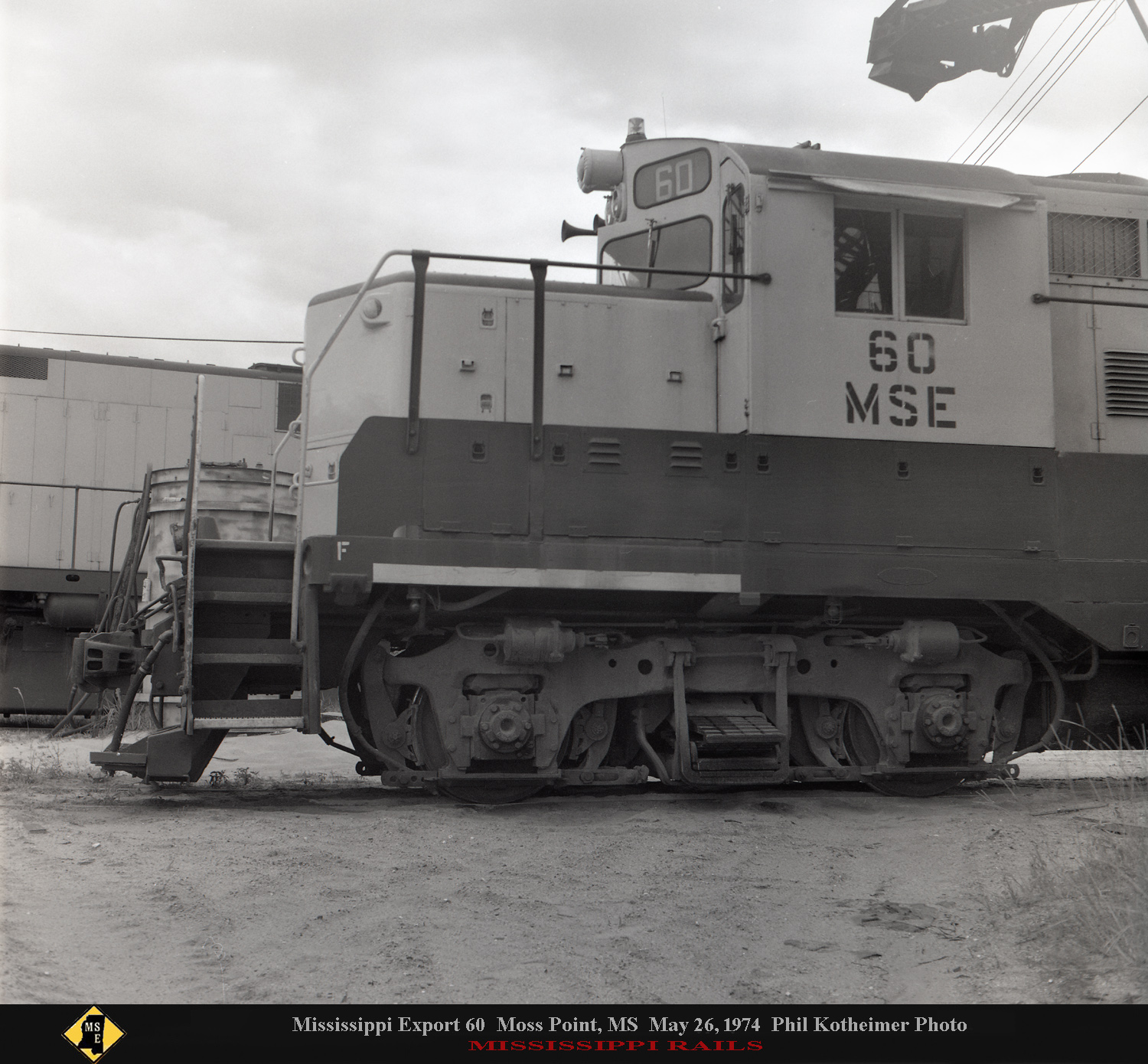

Notes: Rebuilt with low short hood circa 1973-74.

OWNERSHIP HISTORY:
1) Built new as Mississippi Export #60

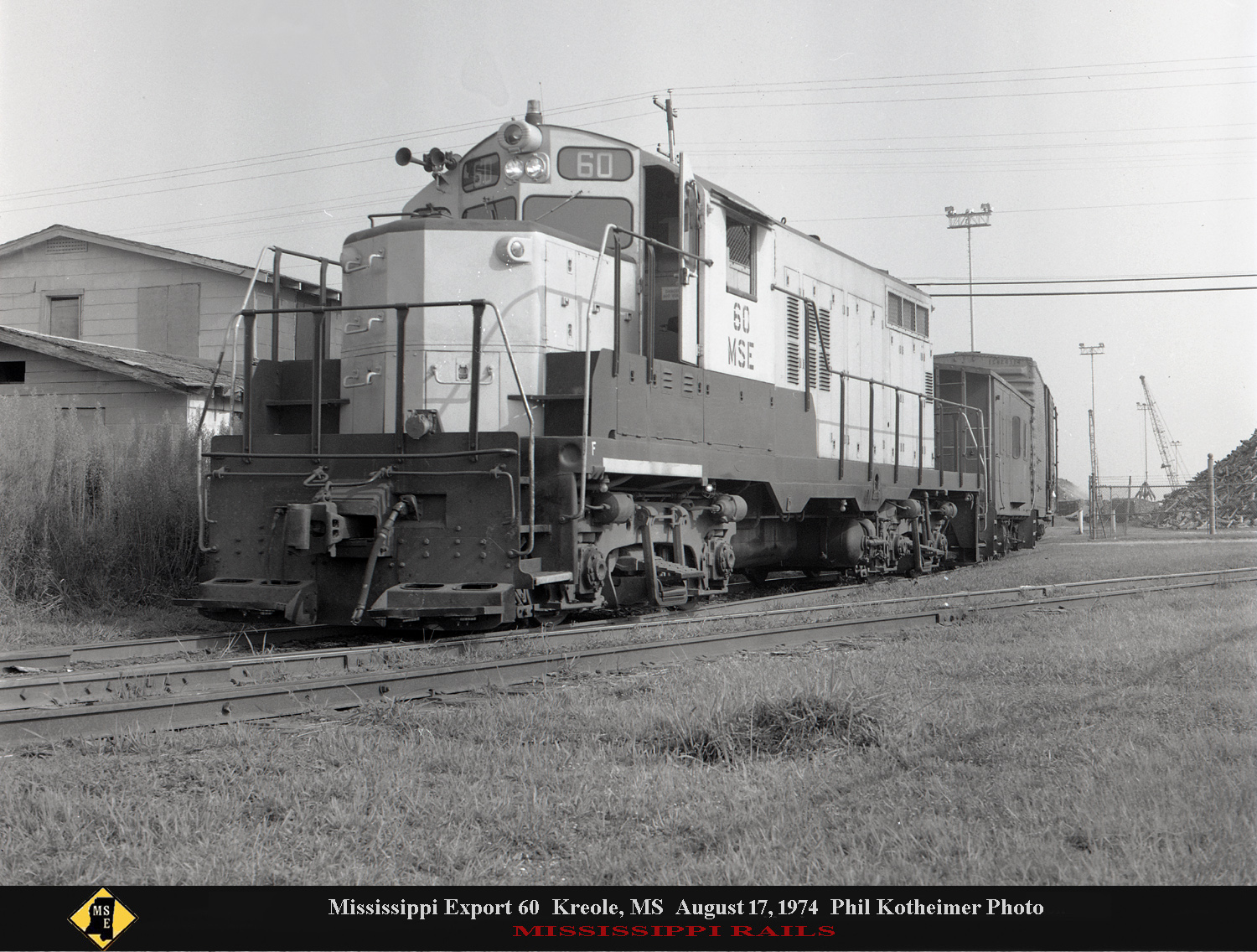

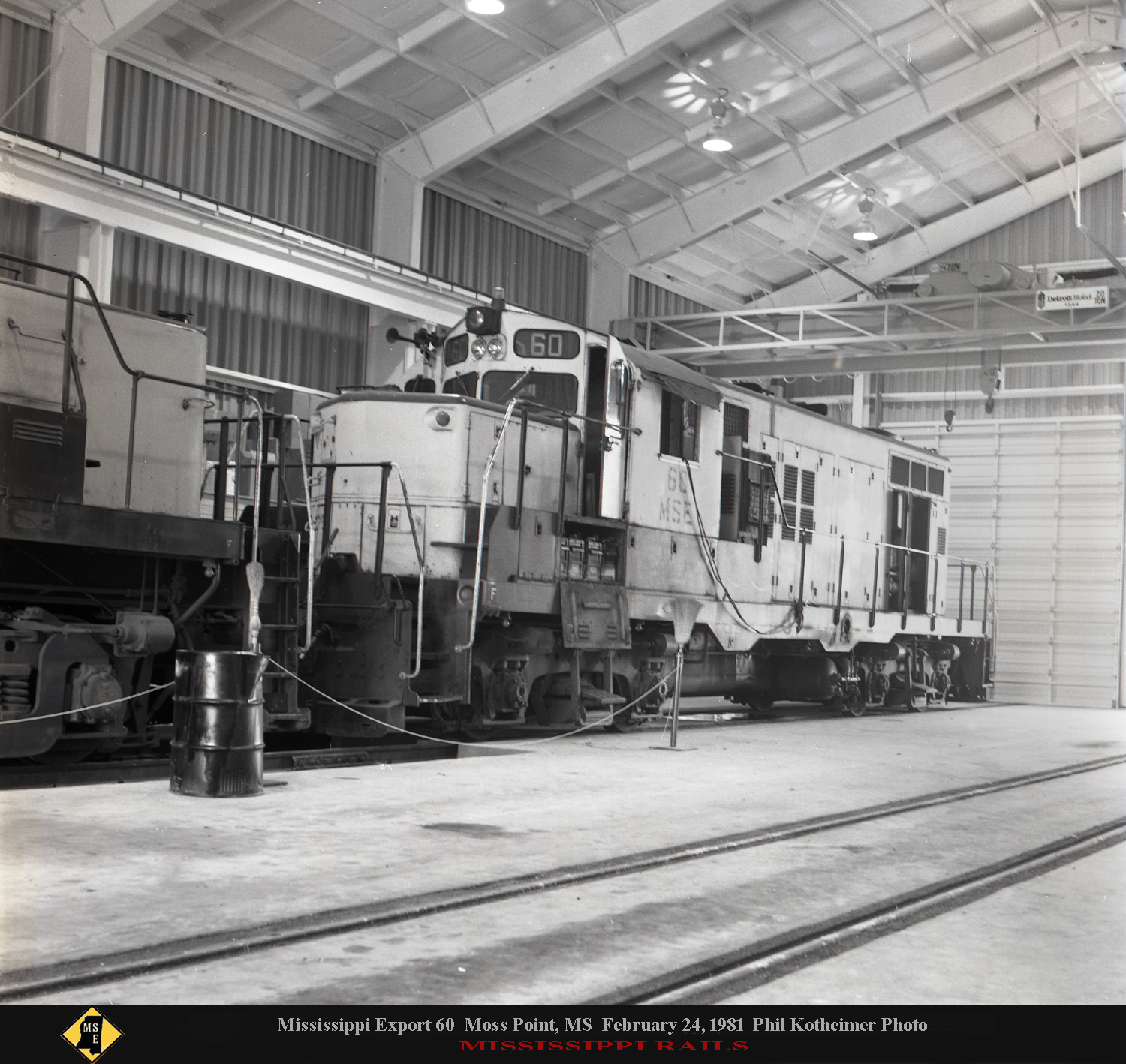

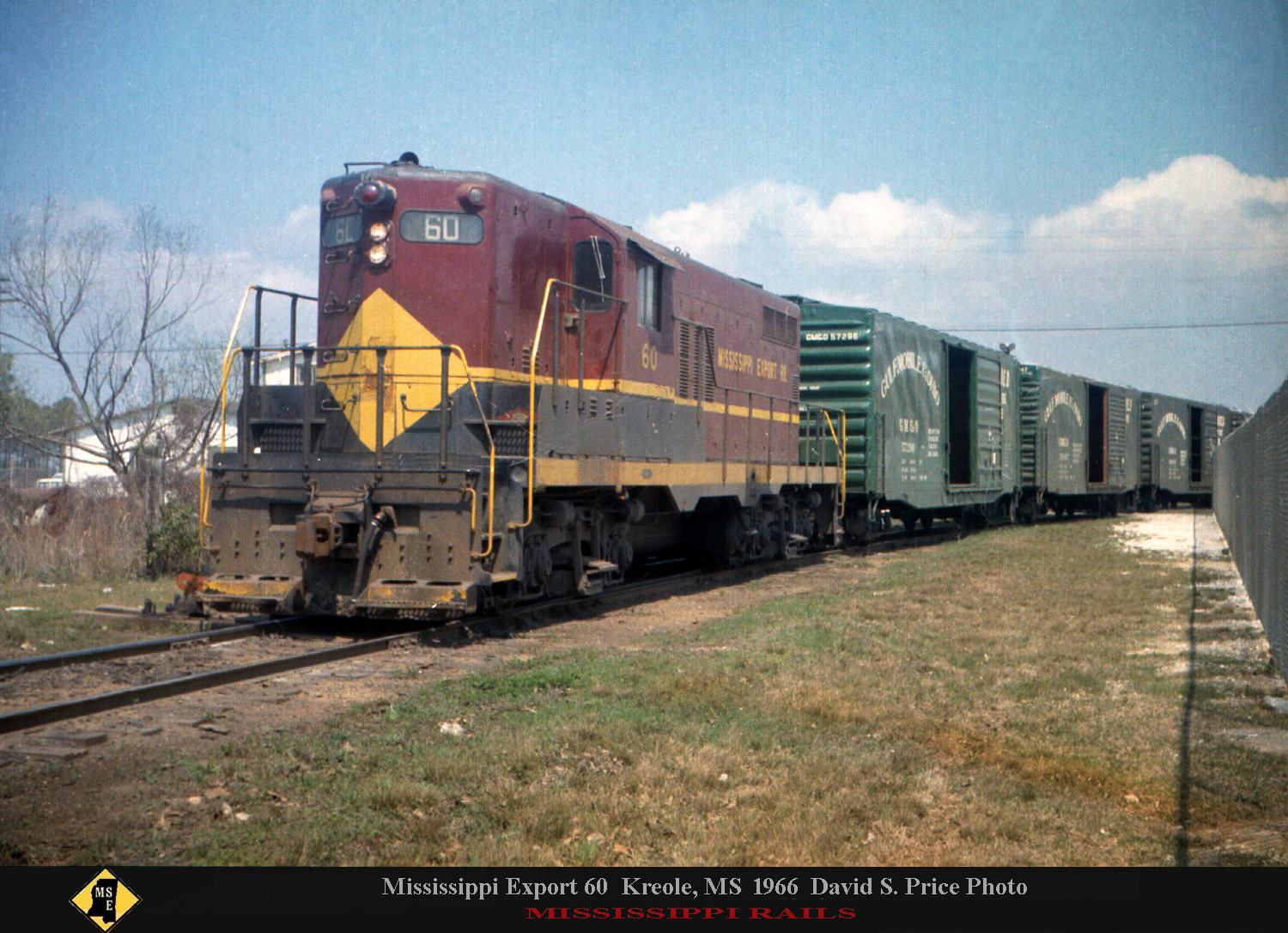

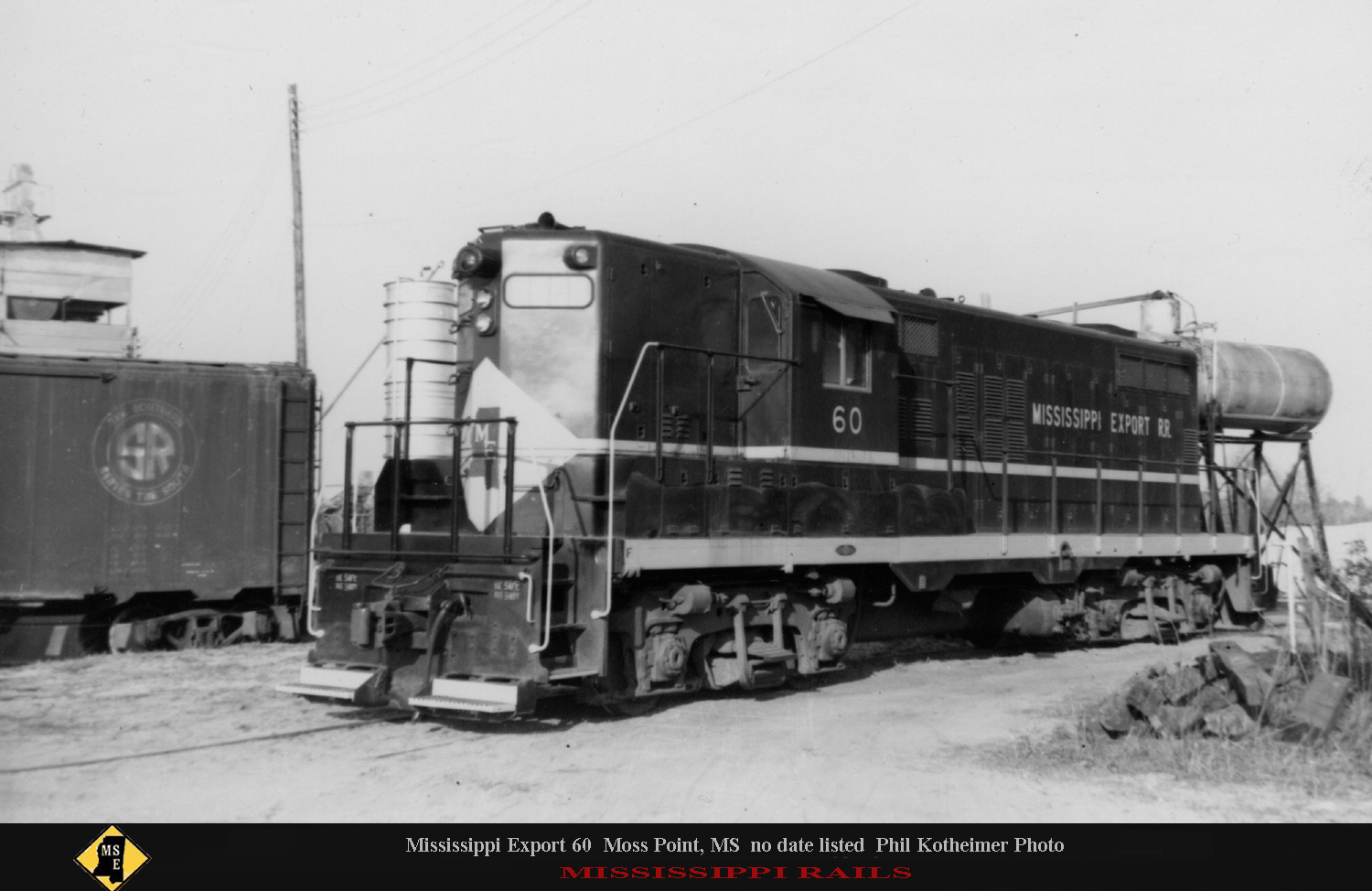

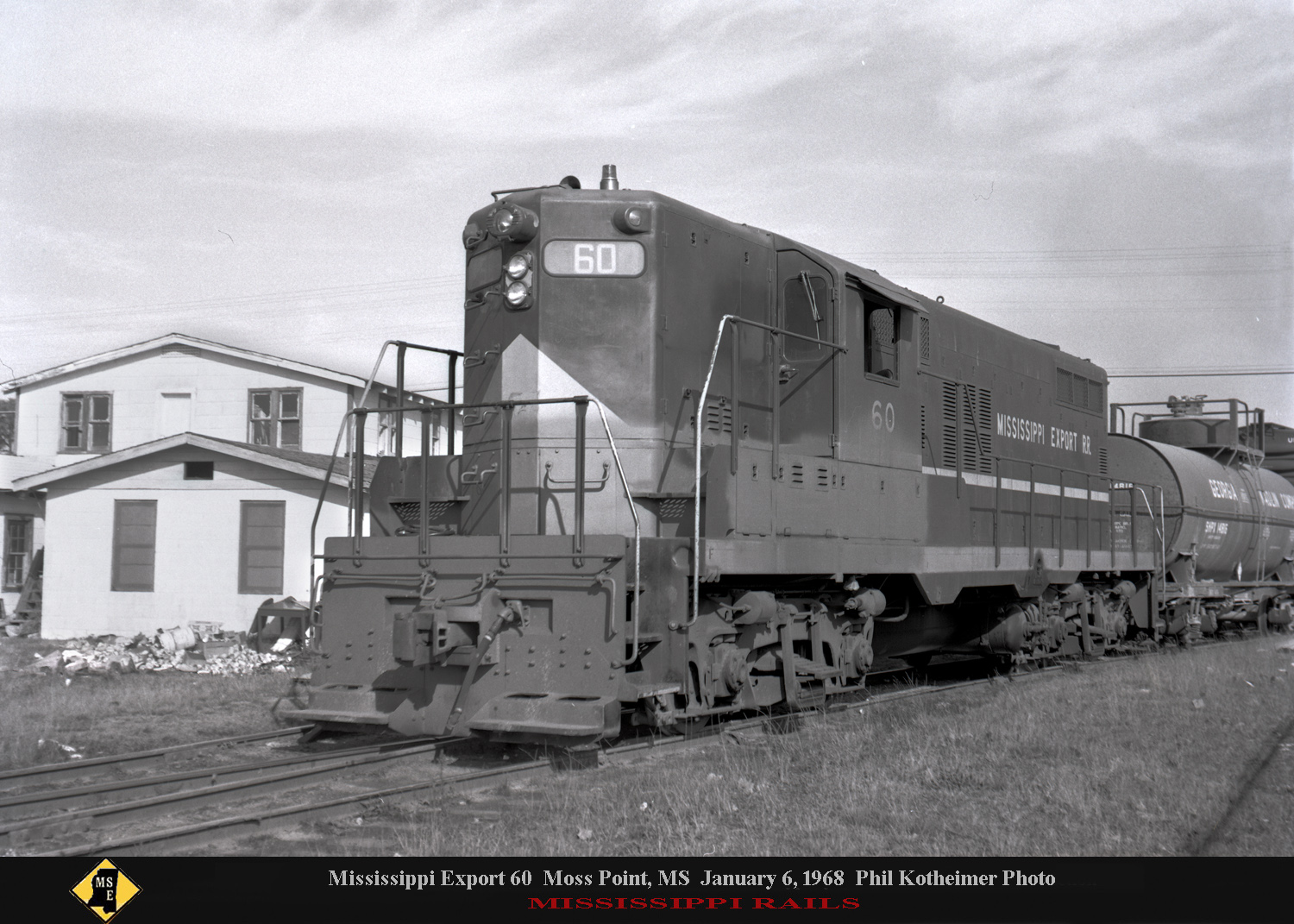

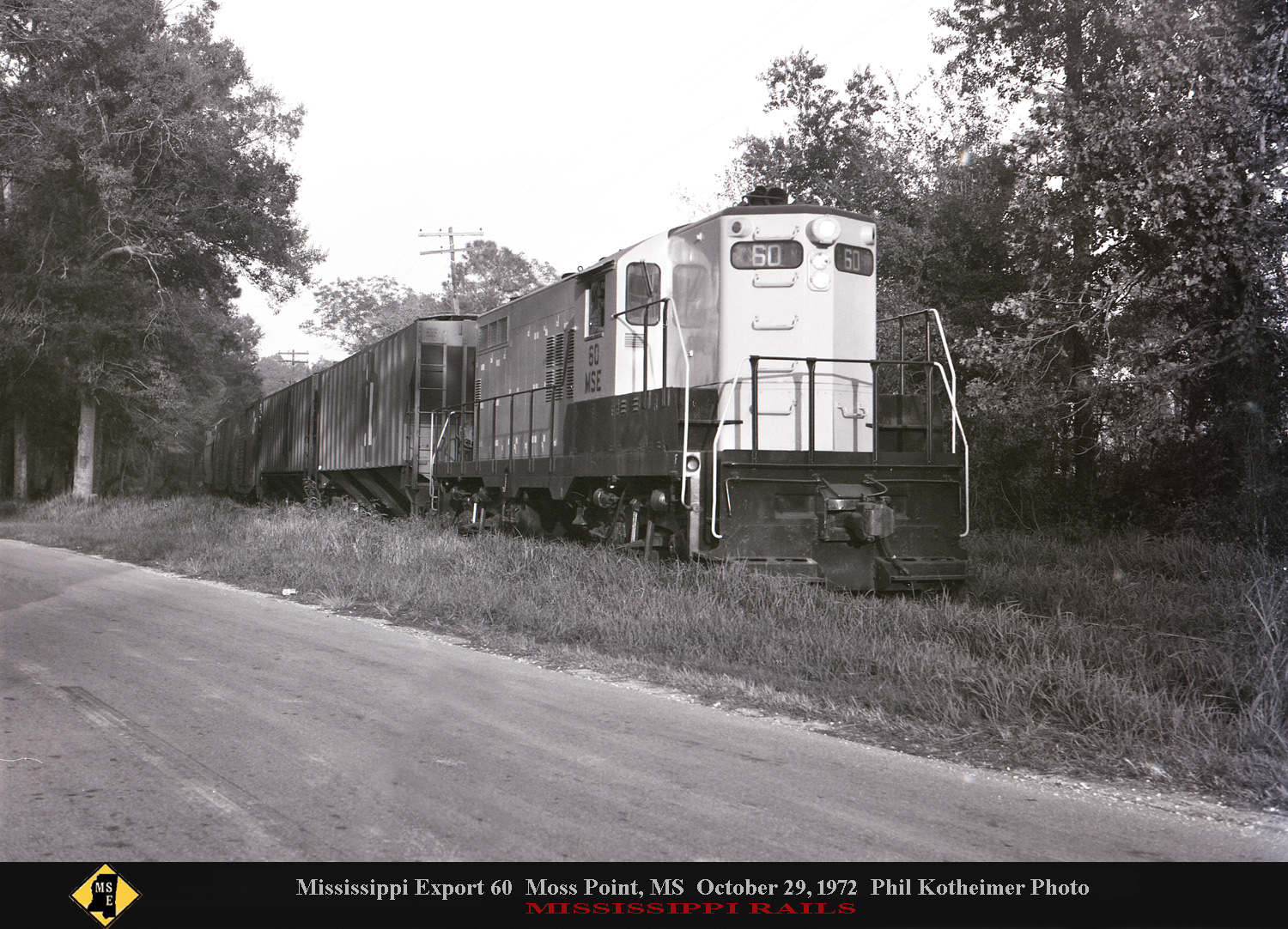

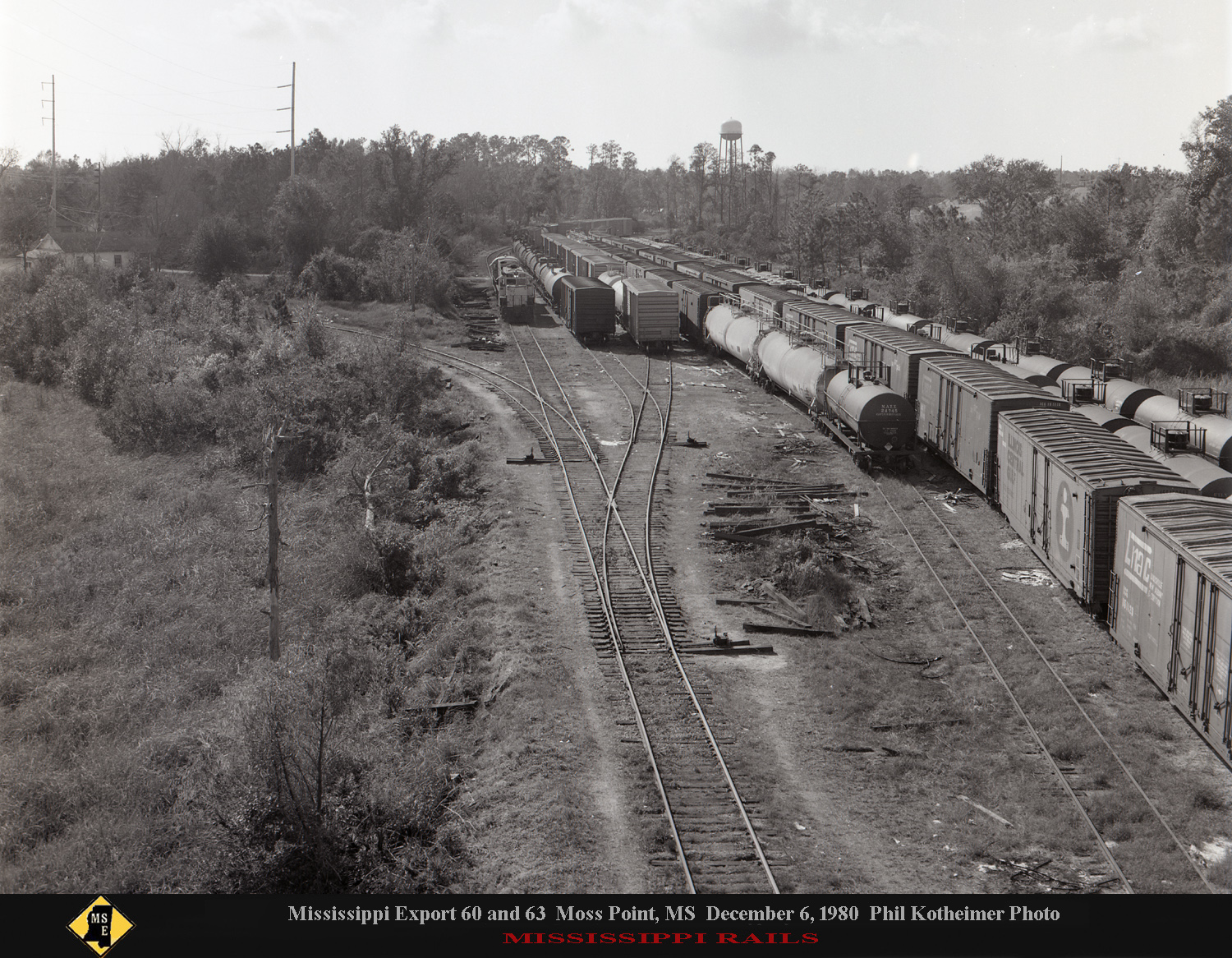

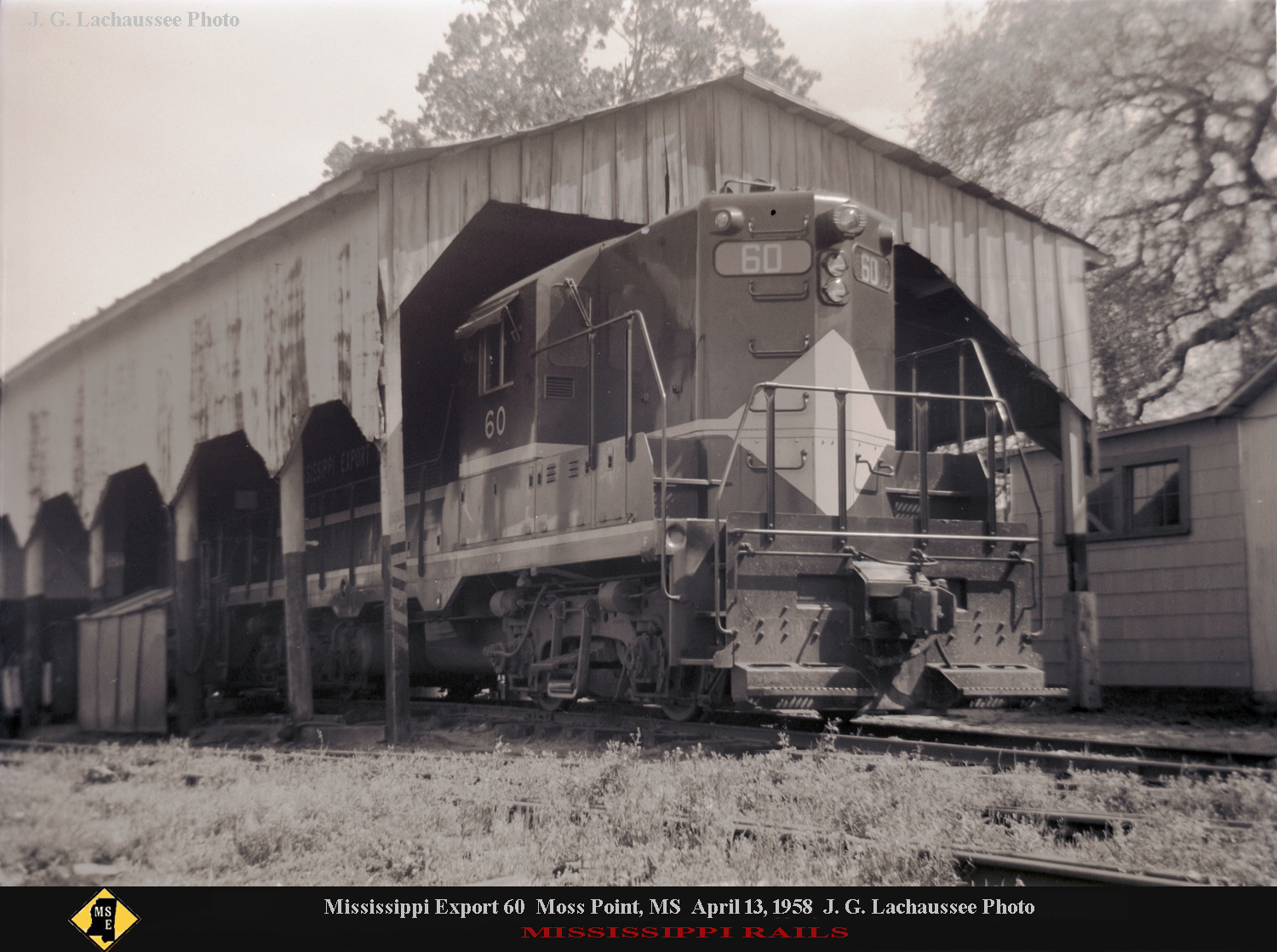

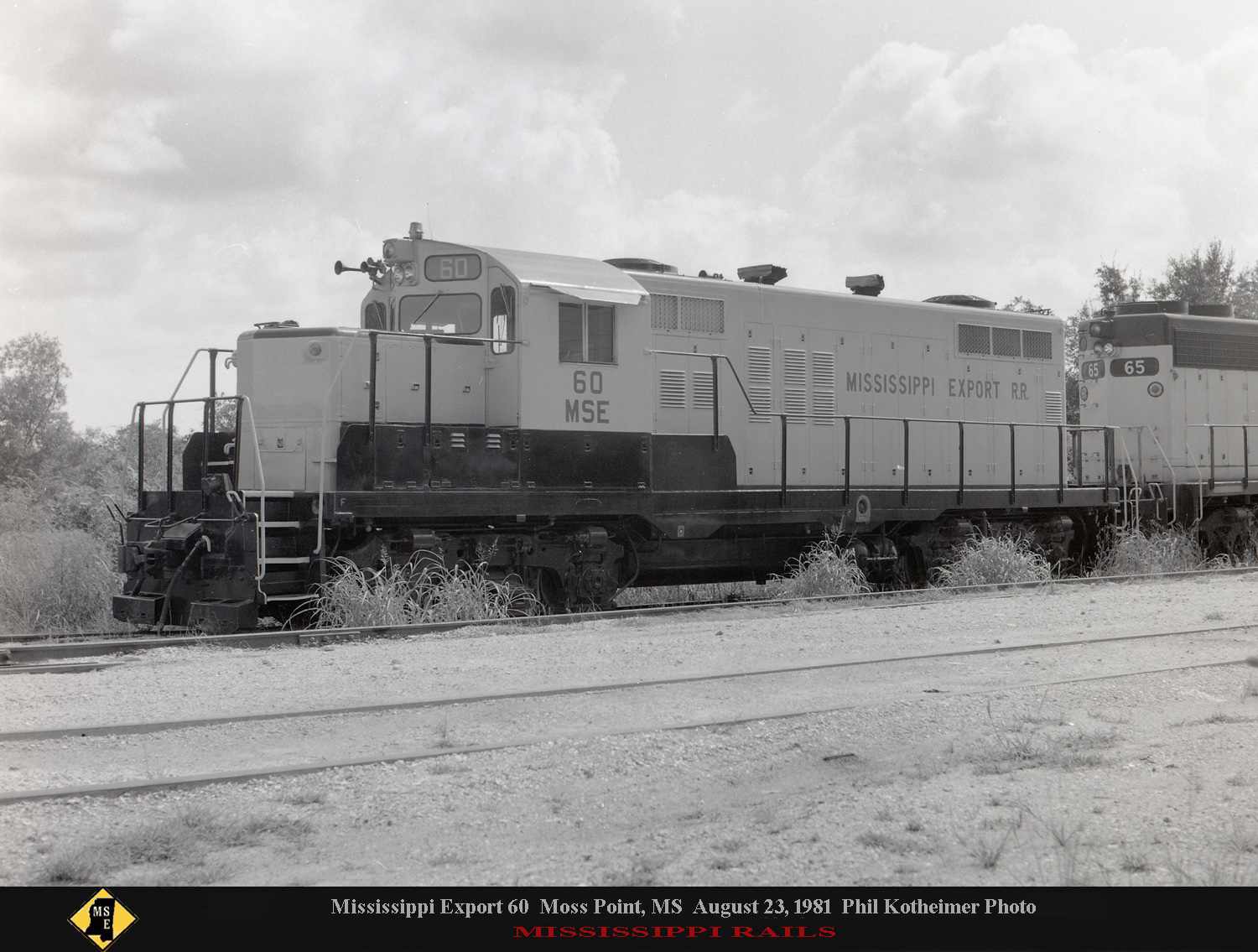

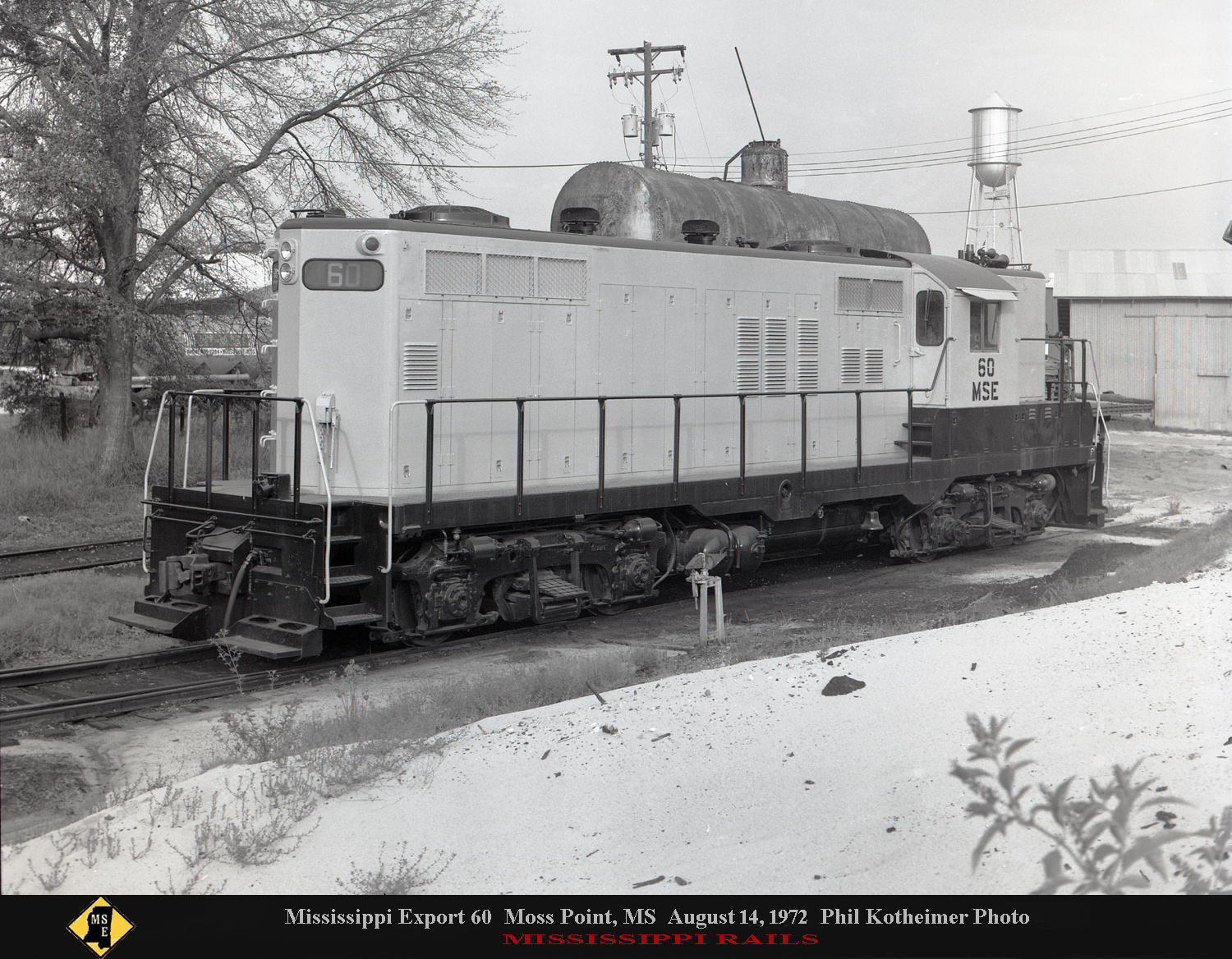

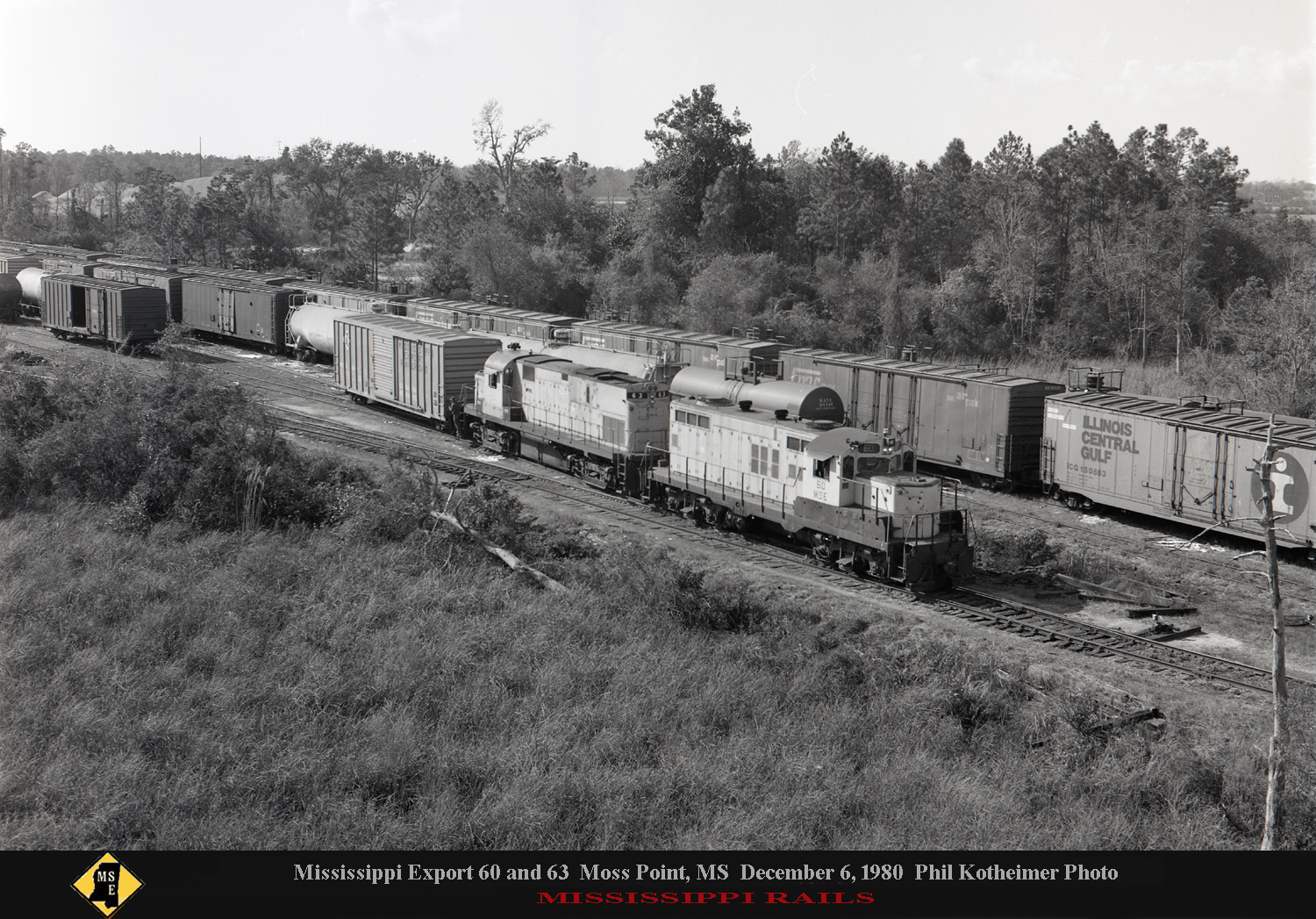

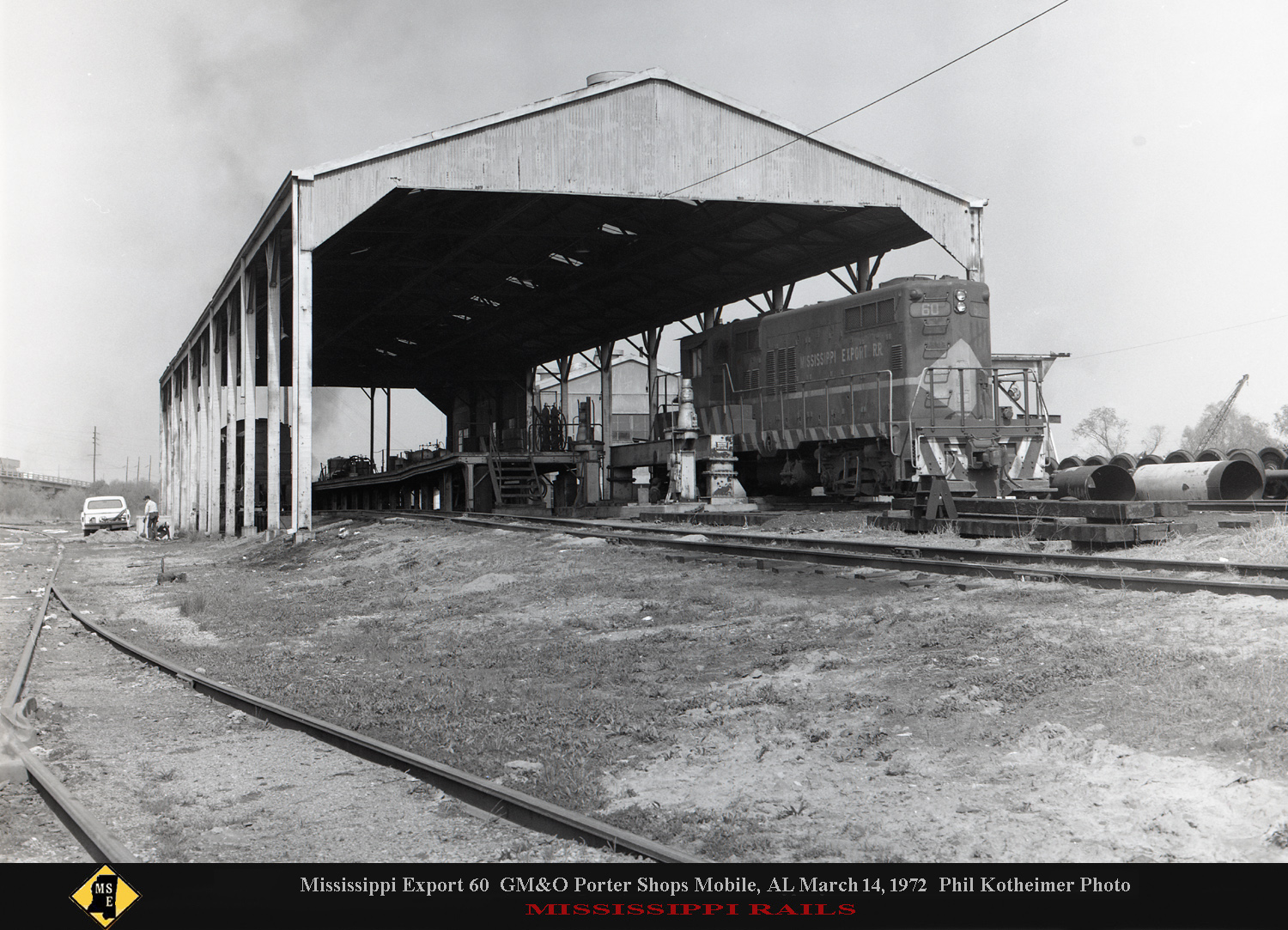

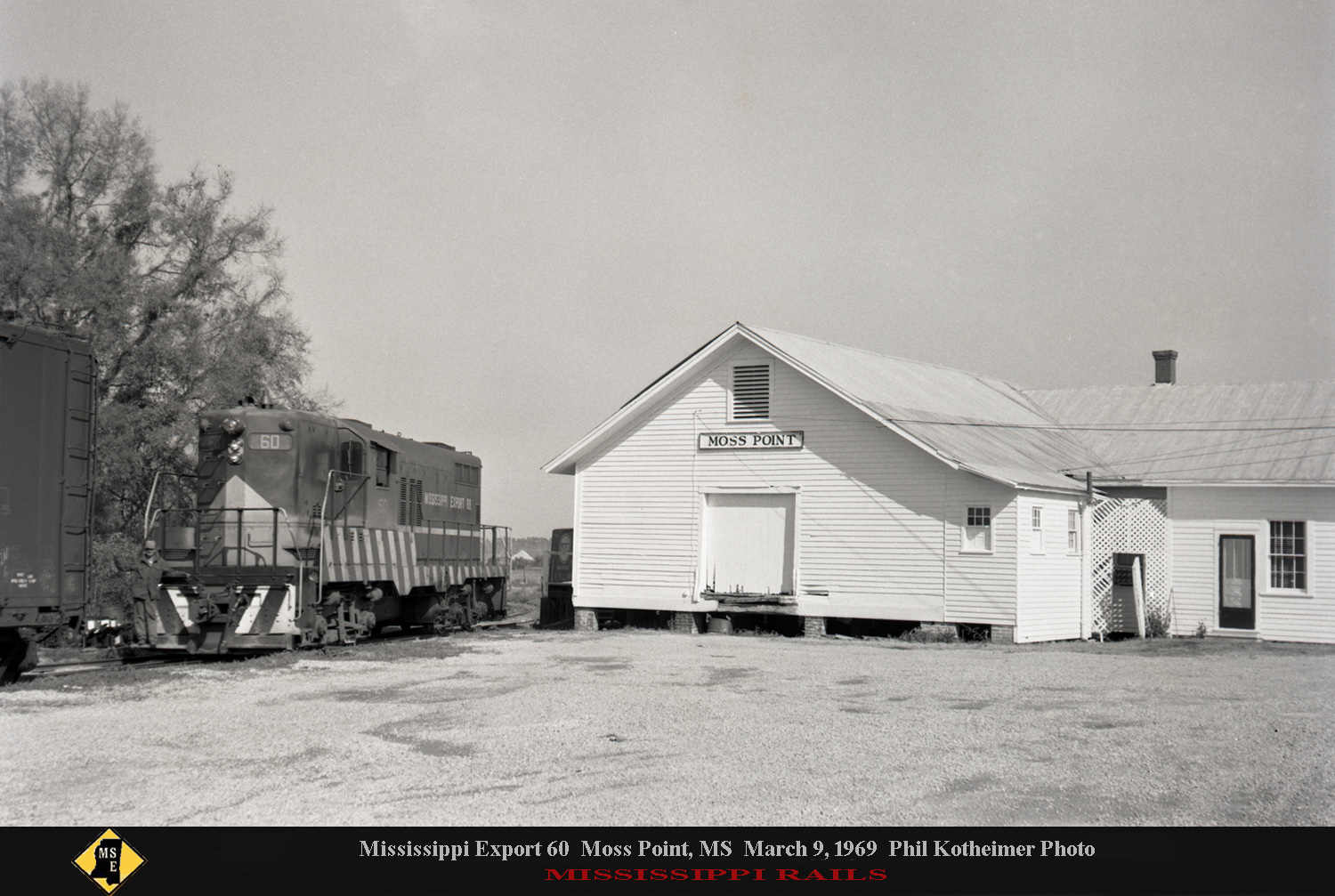

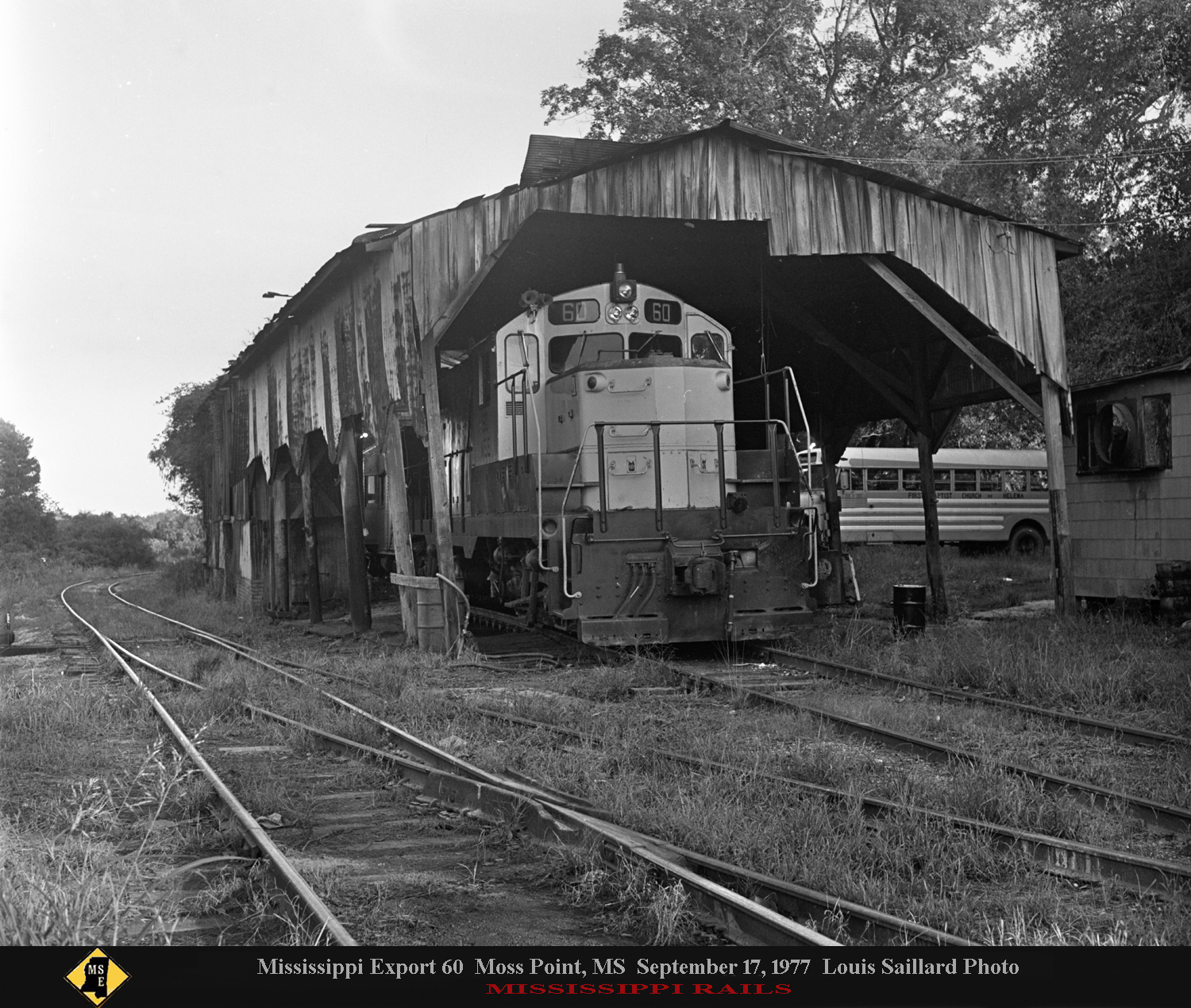

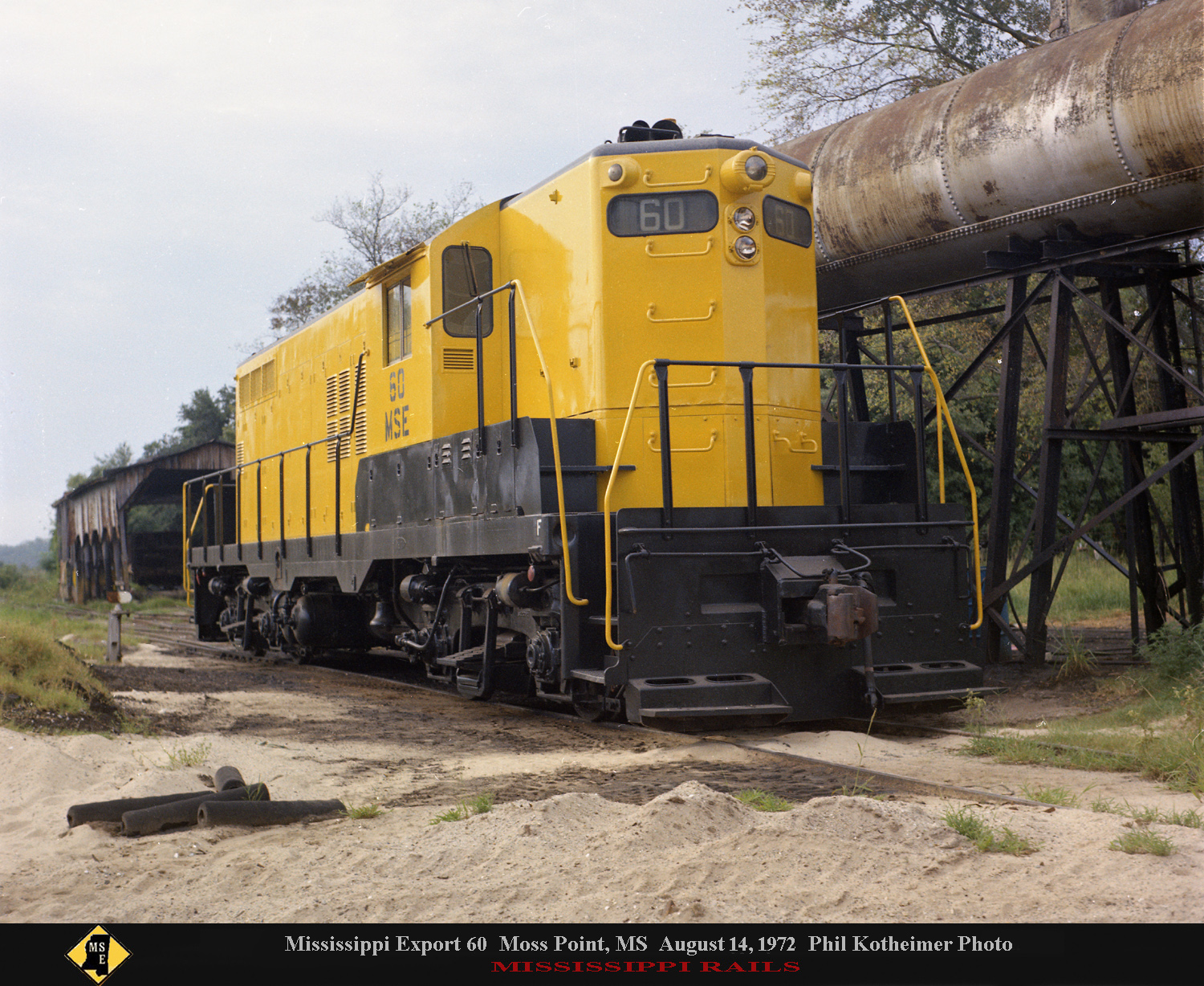

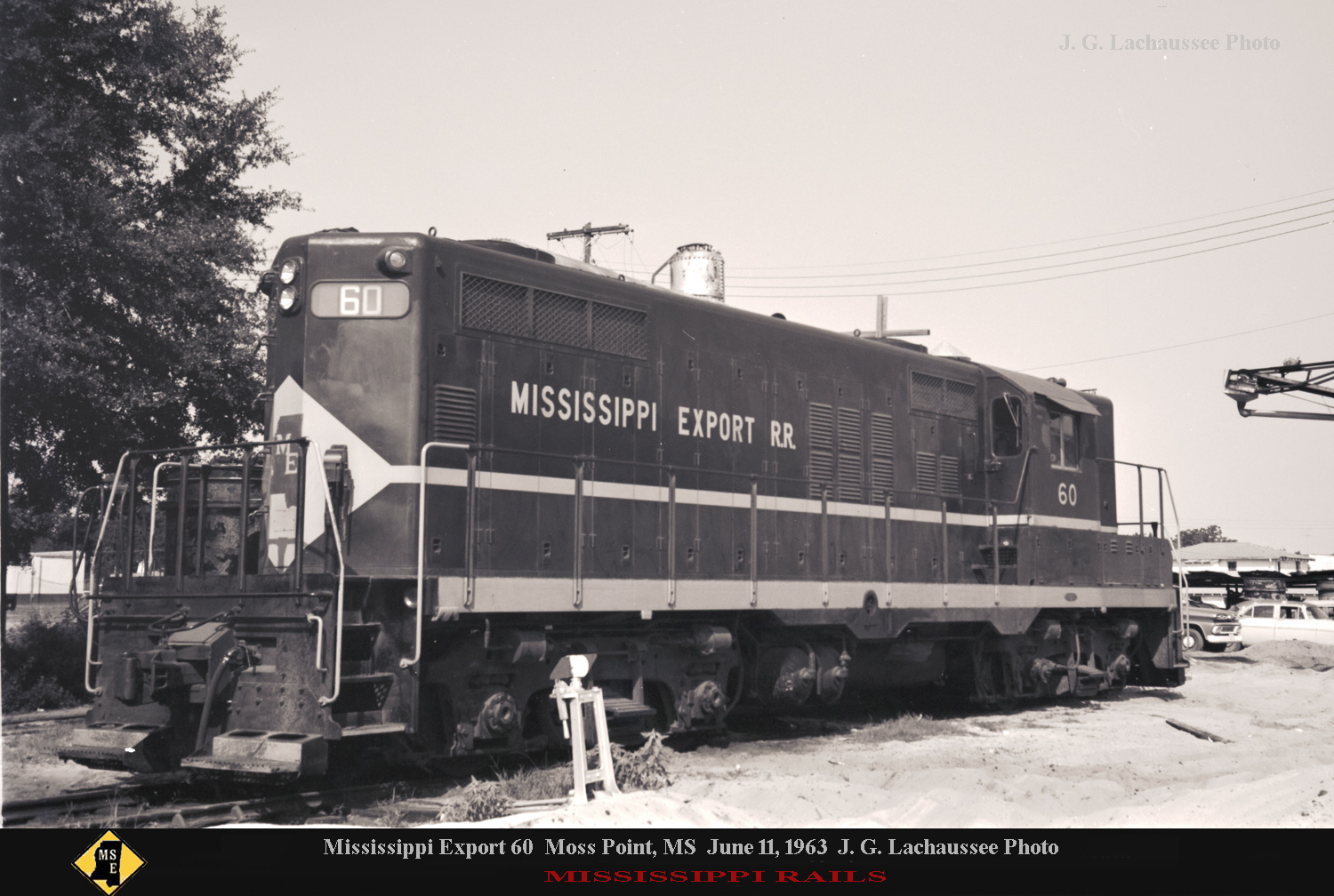

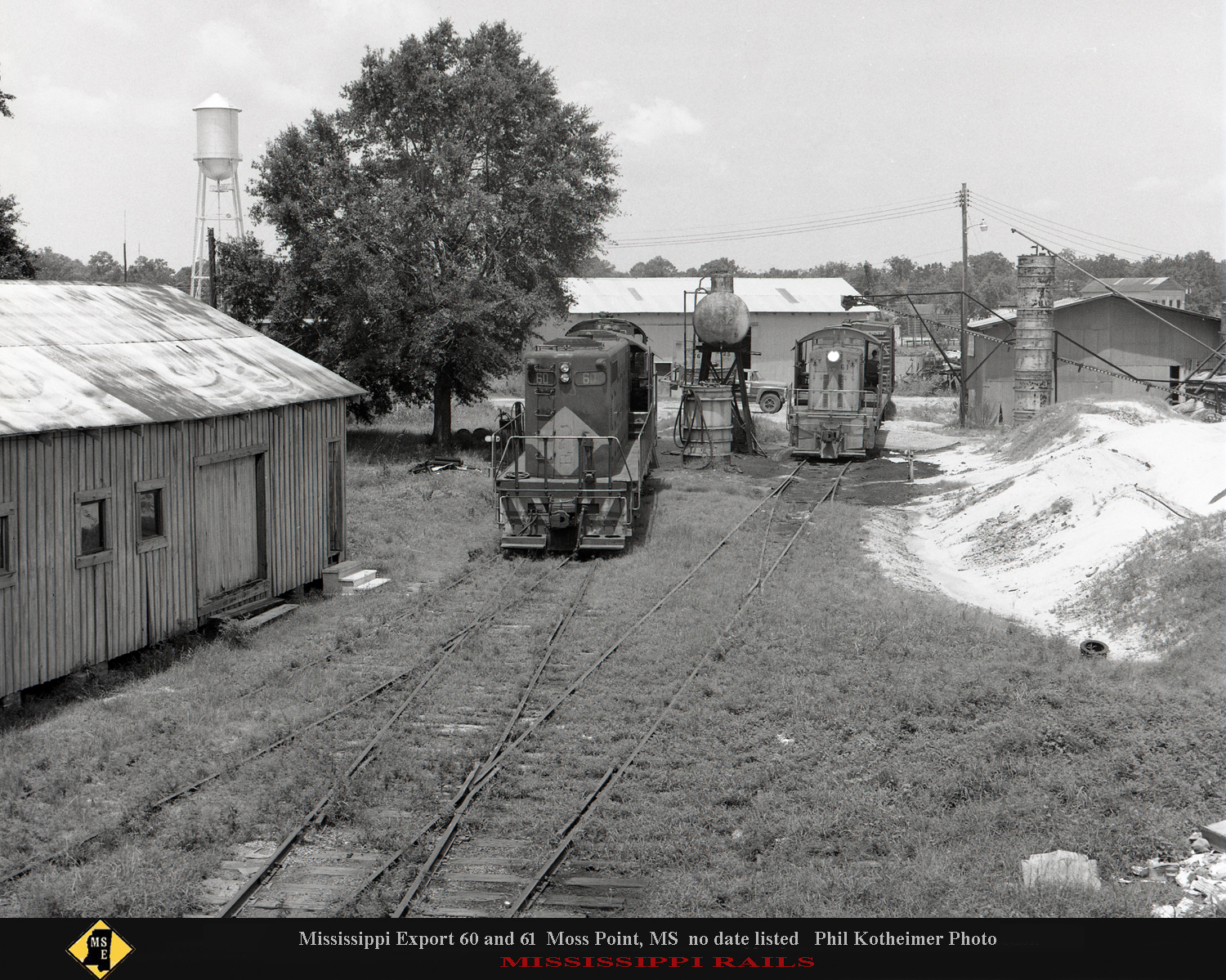

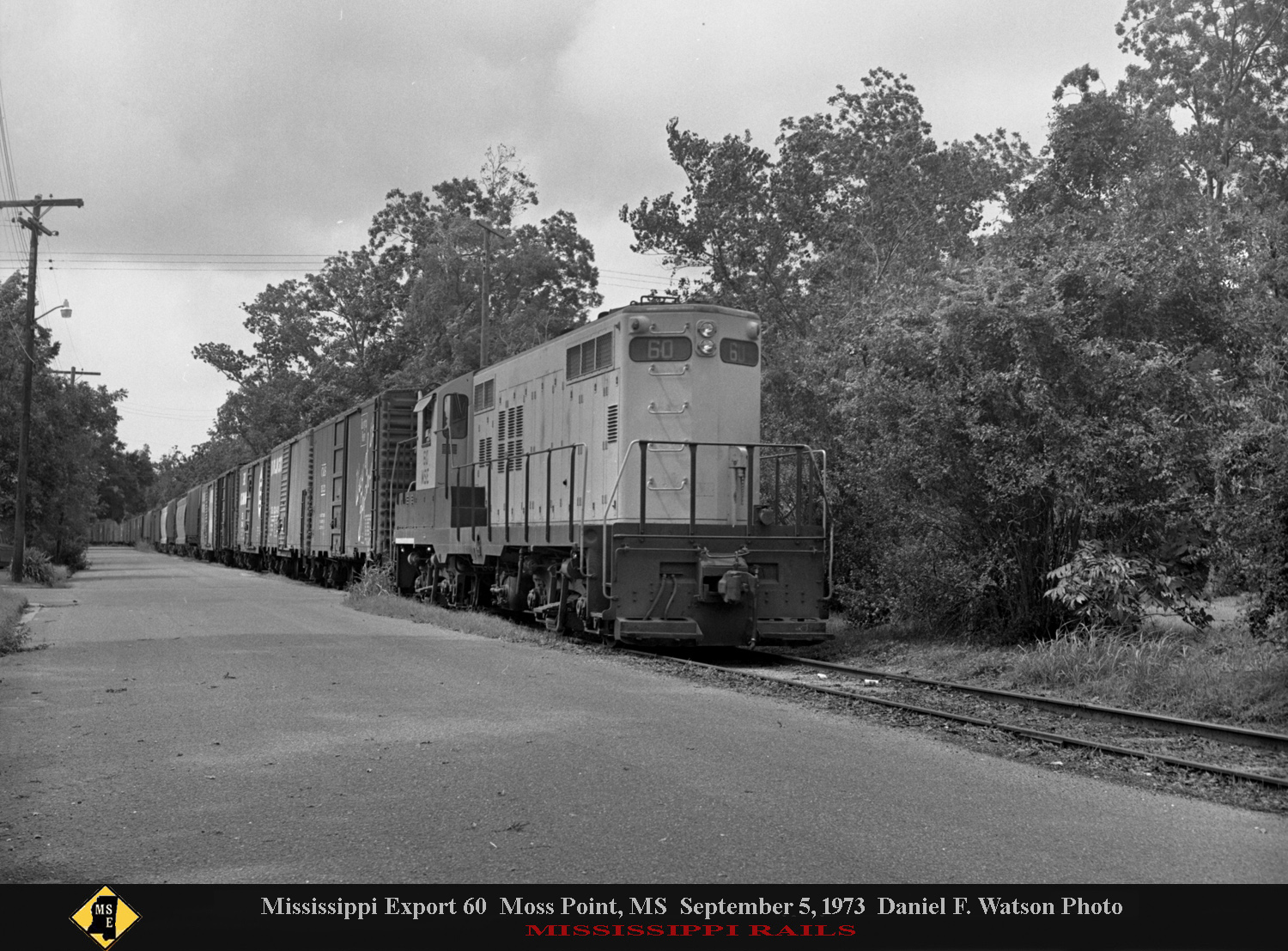

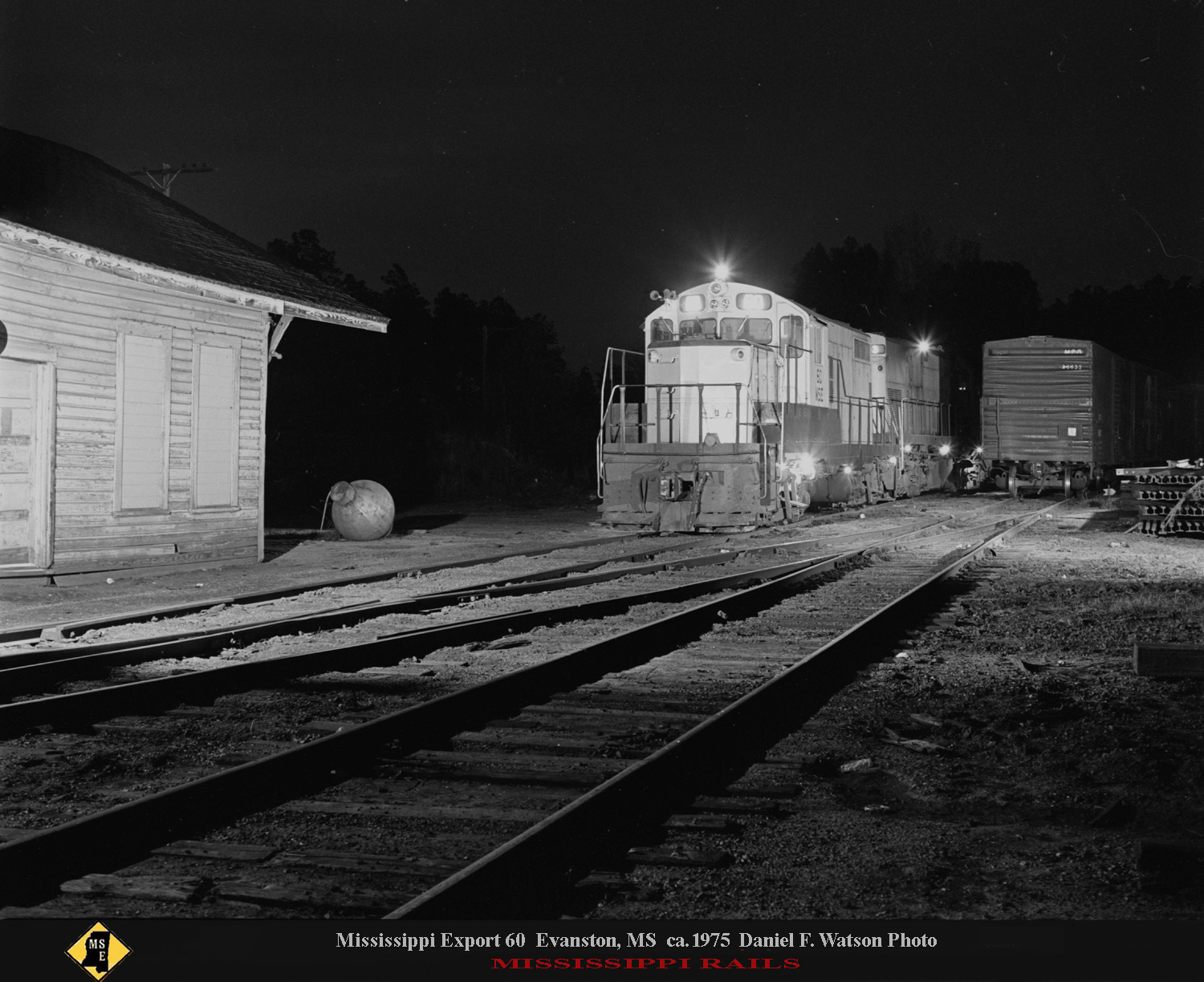

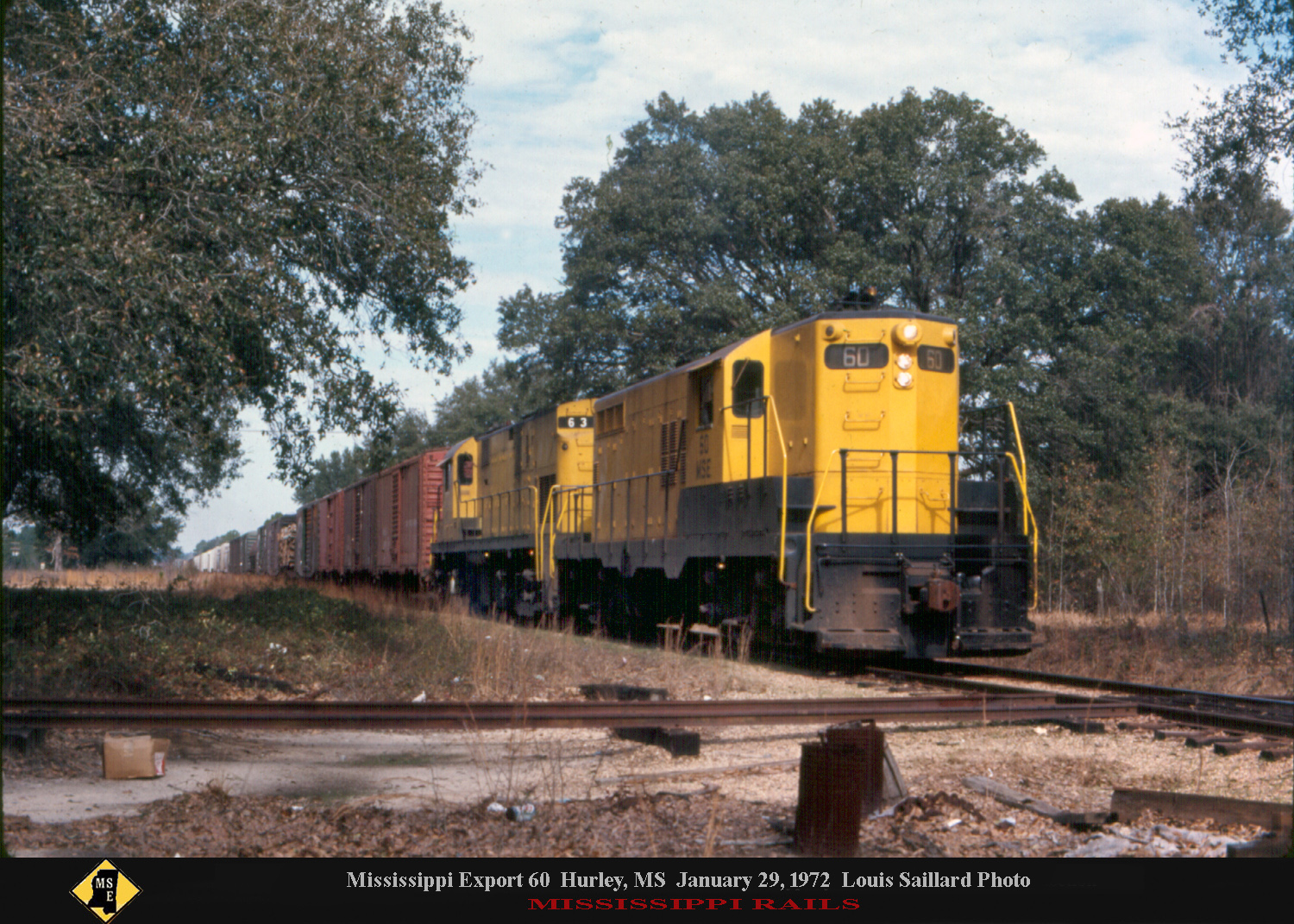

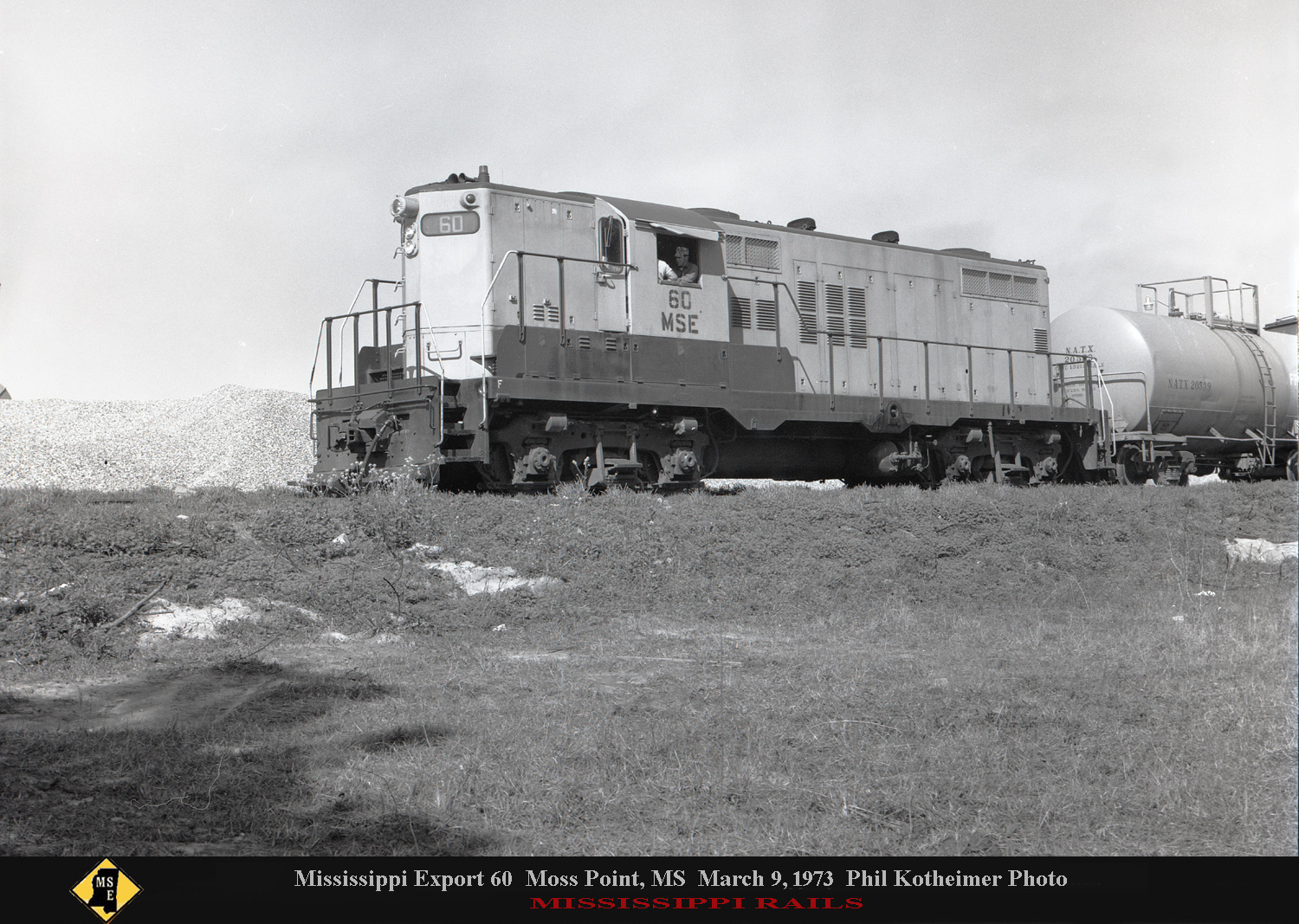

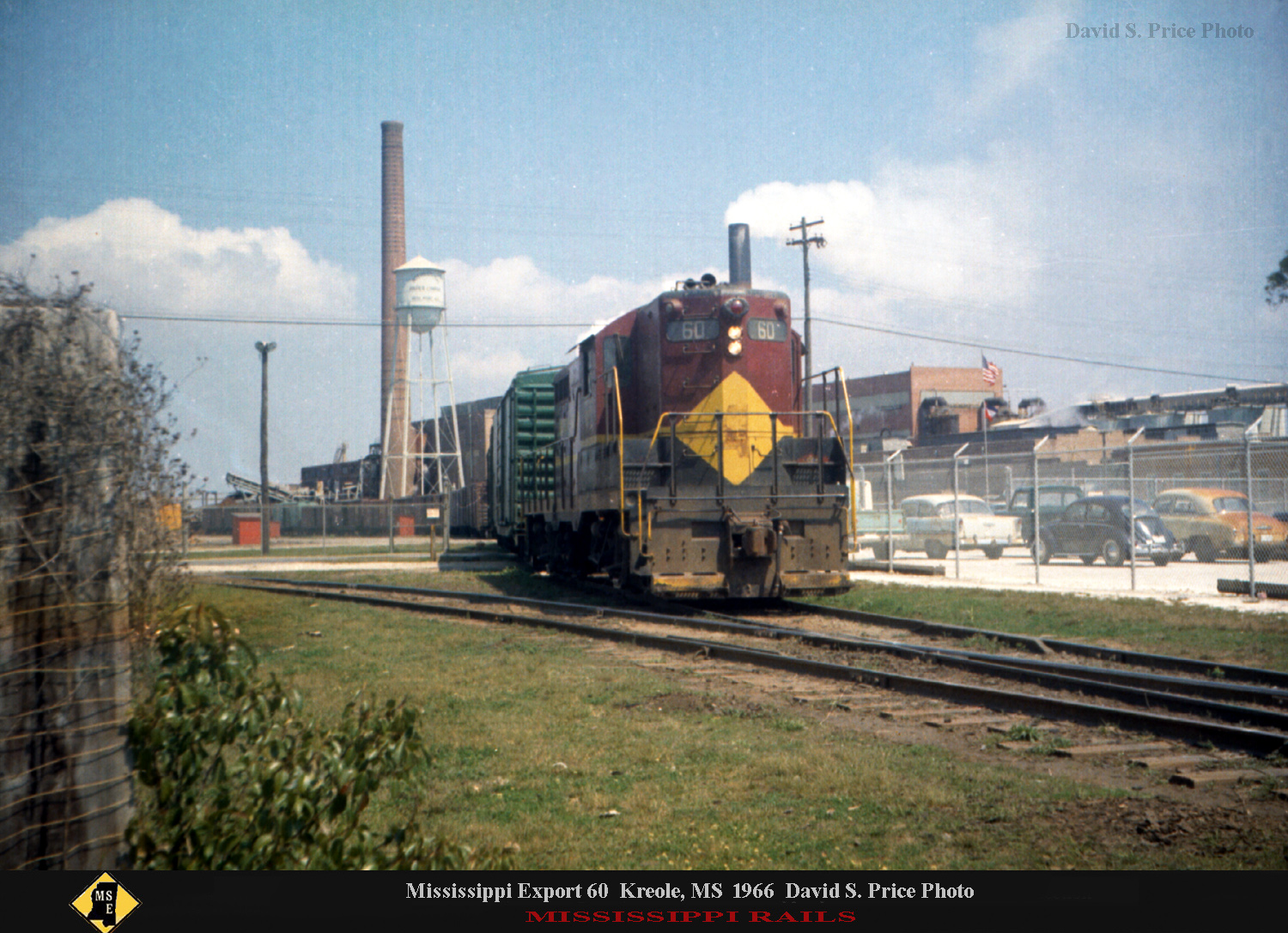

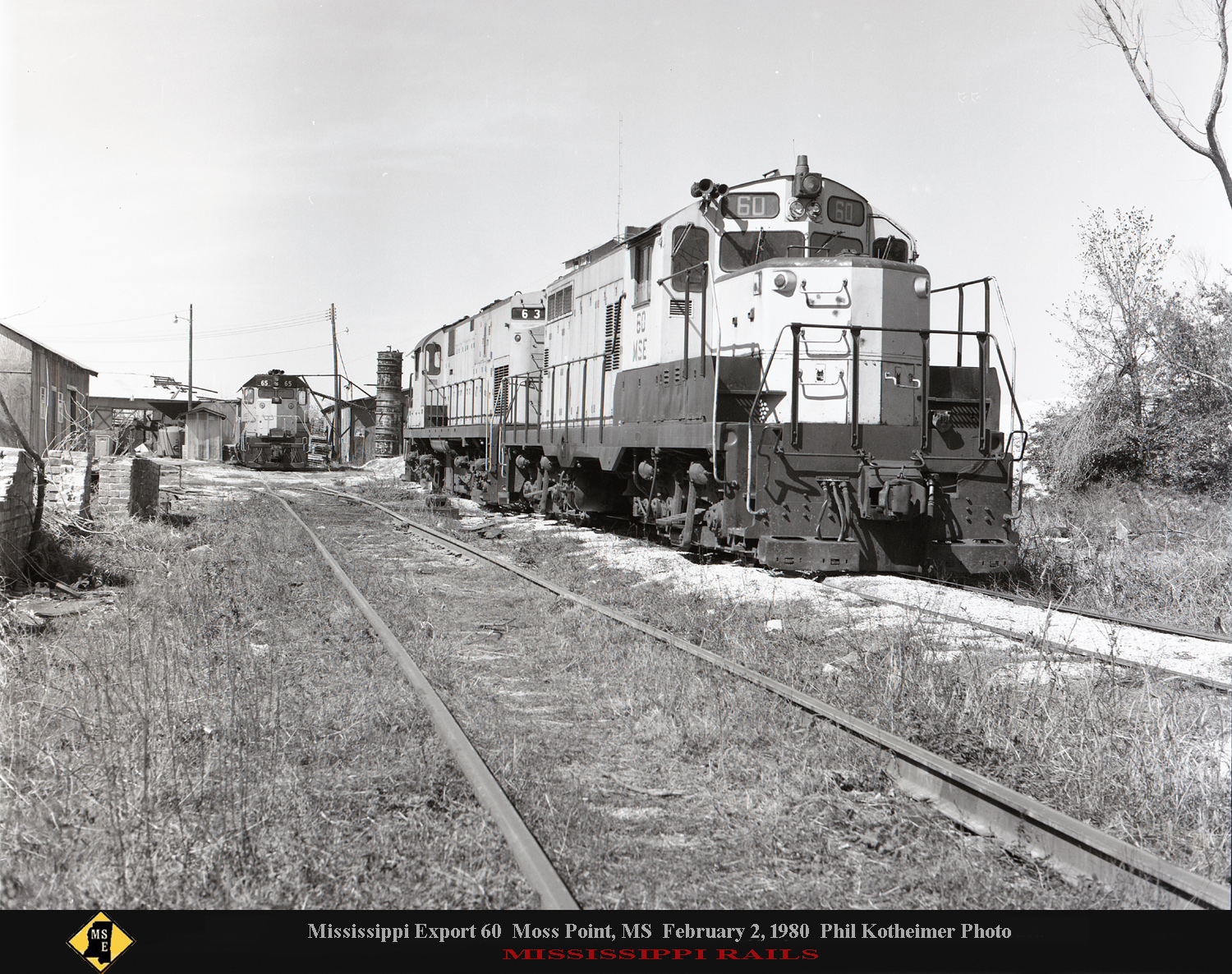

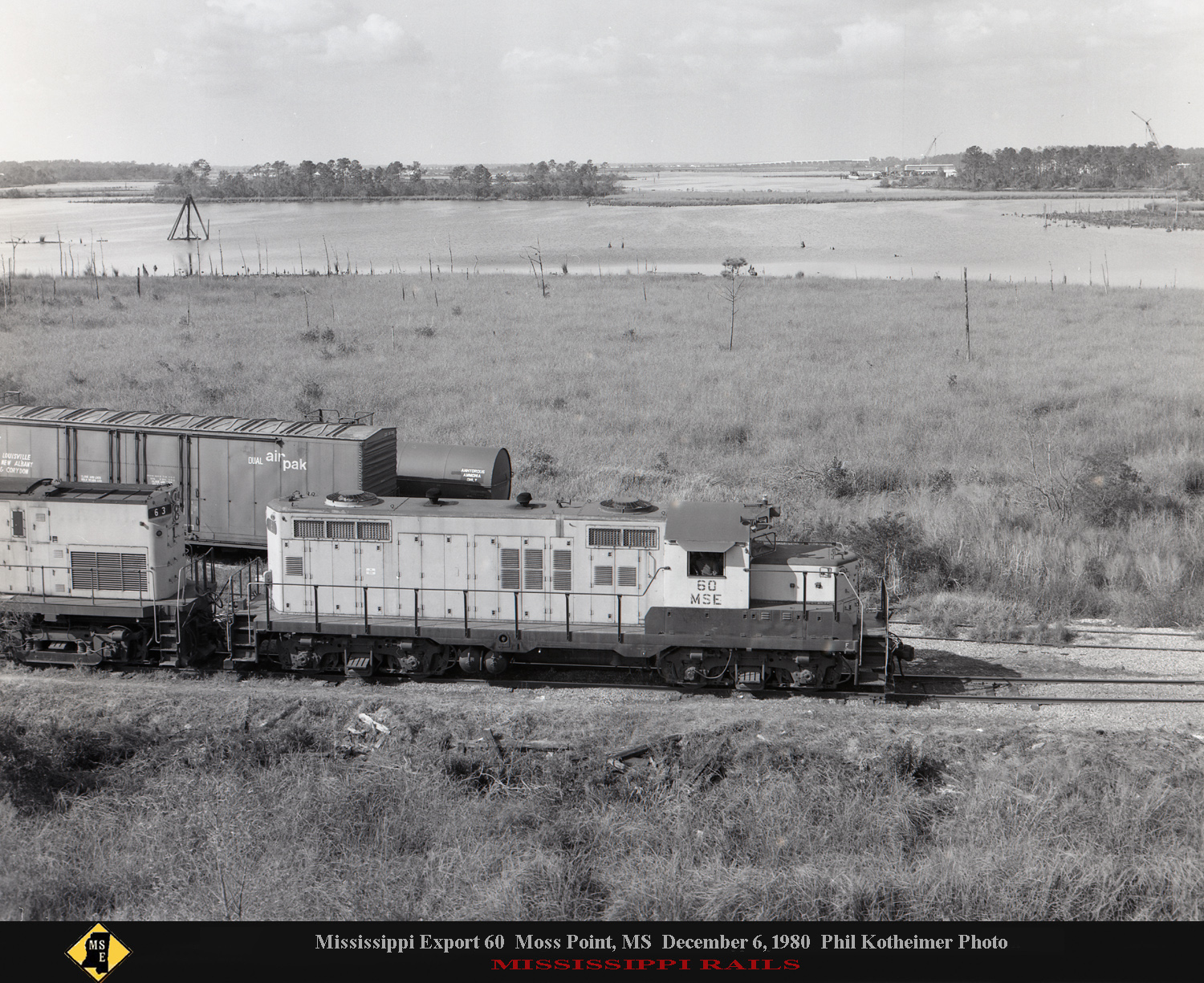

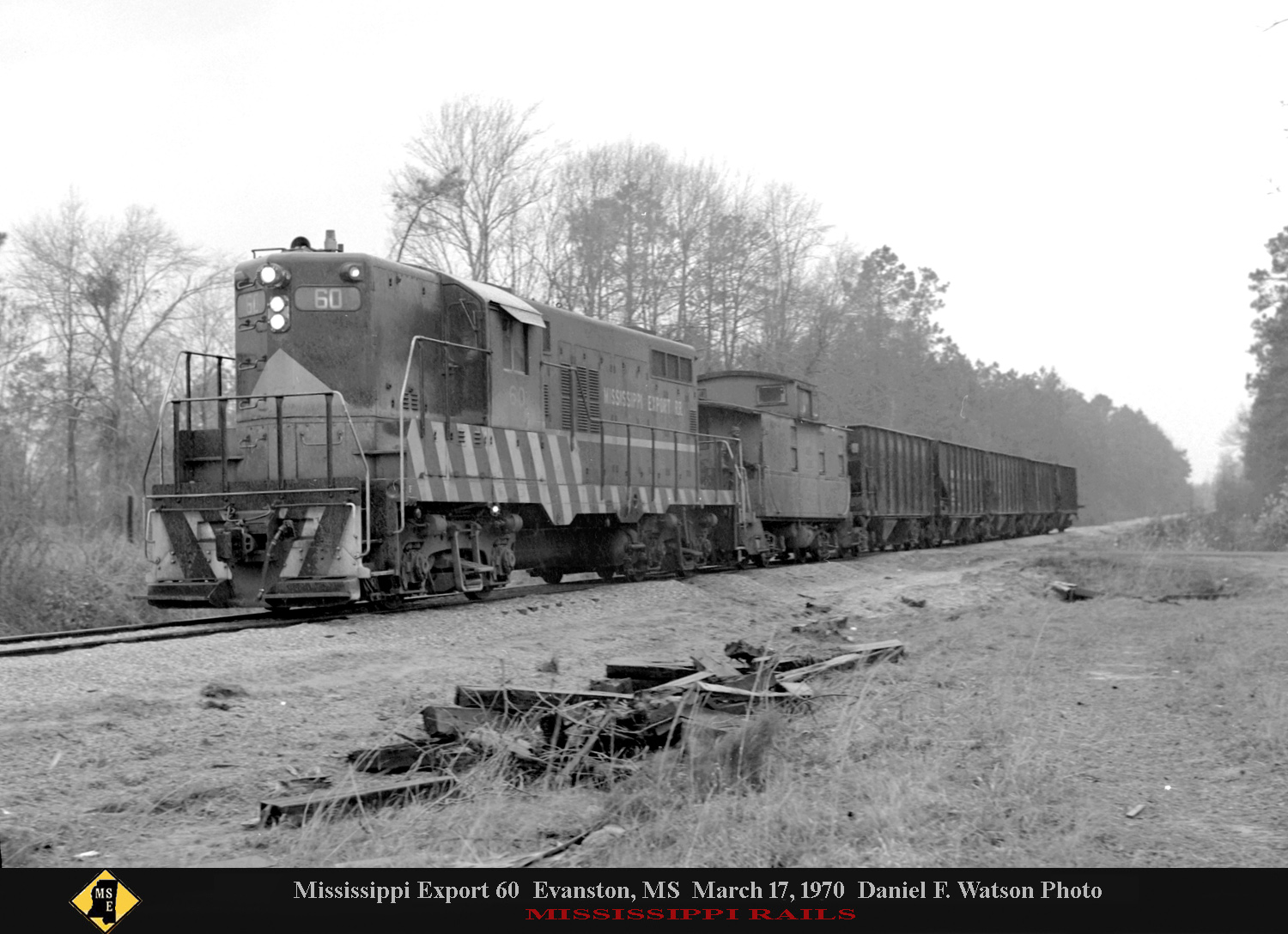

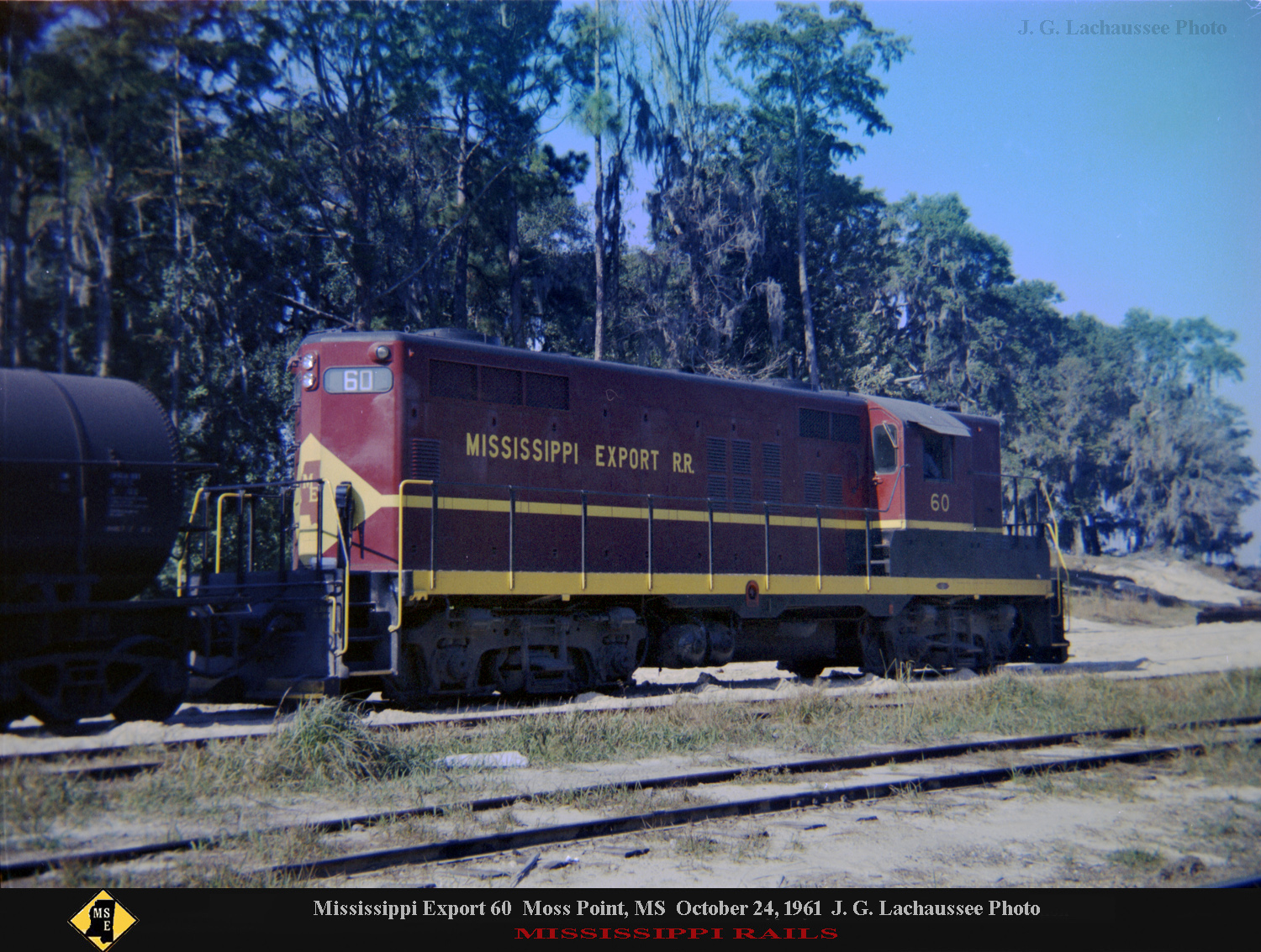

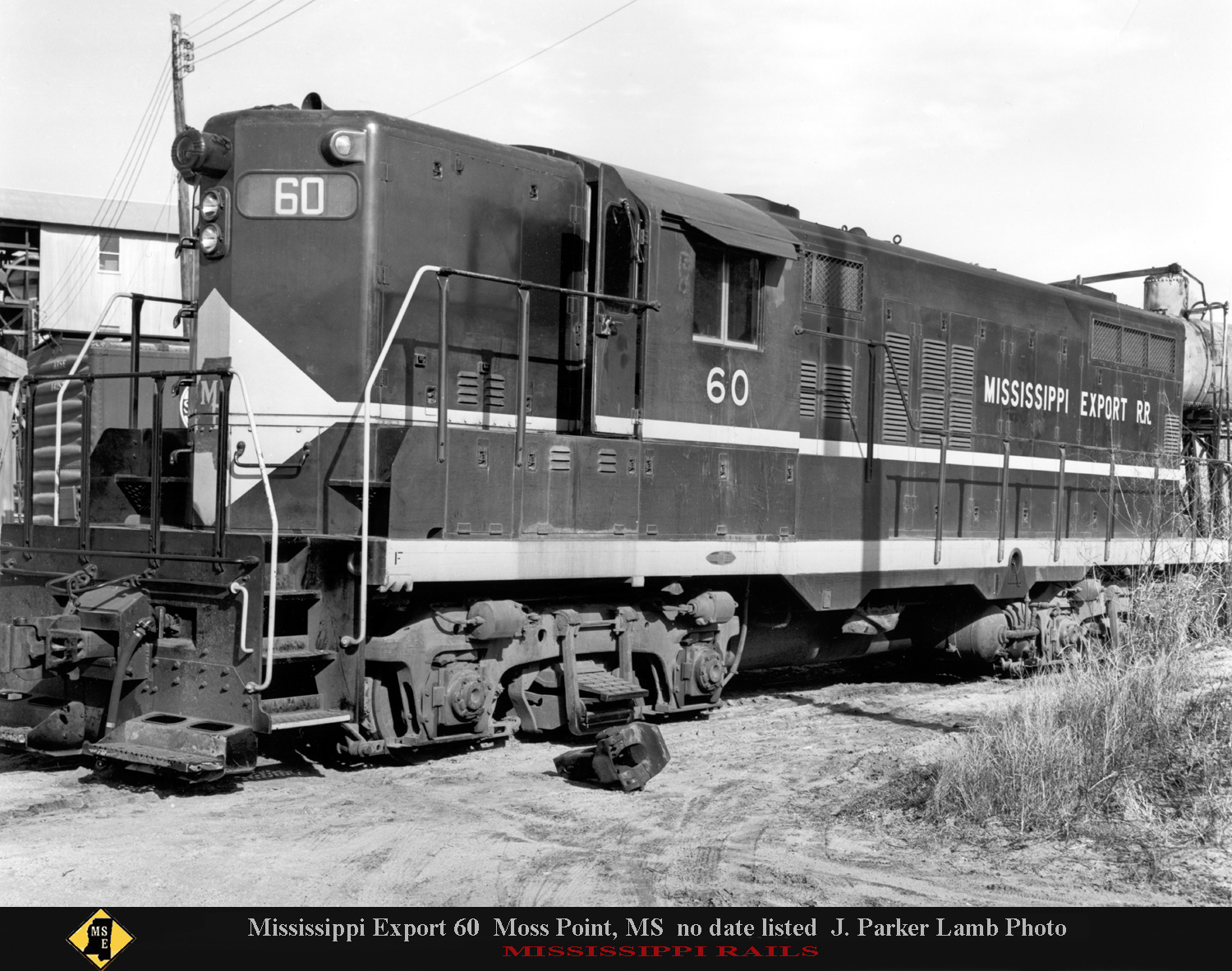

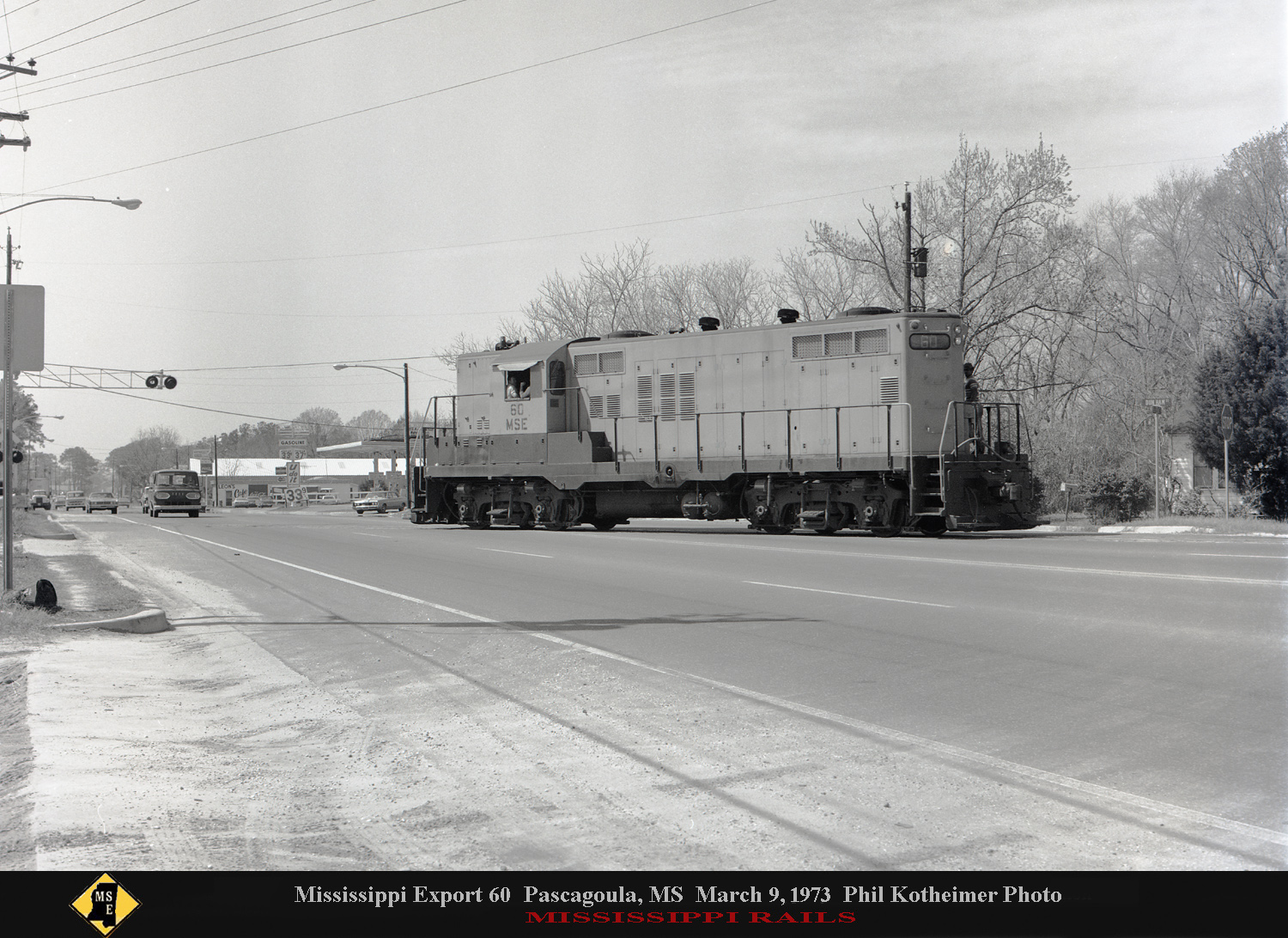

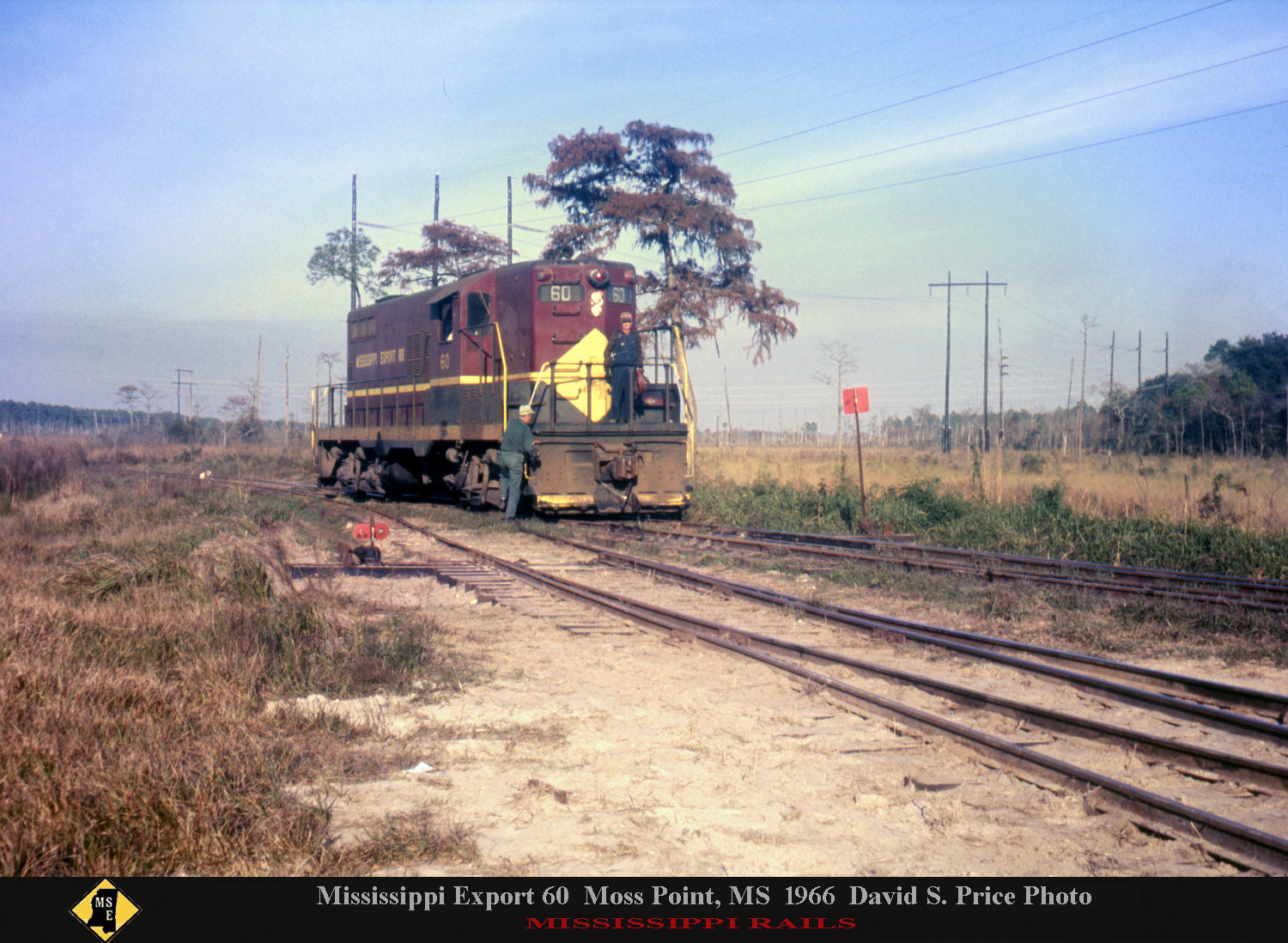

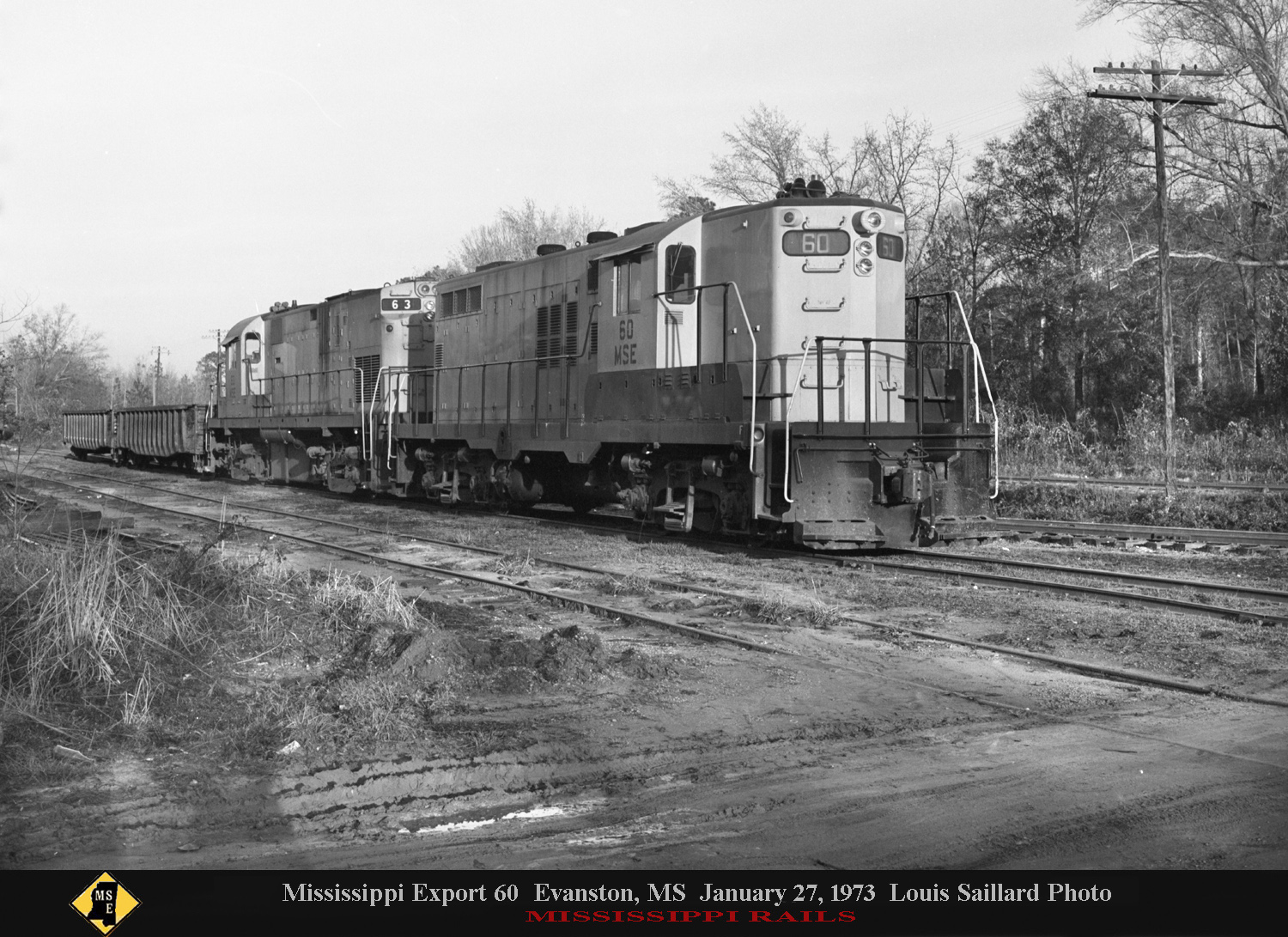

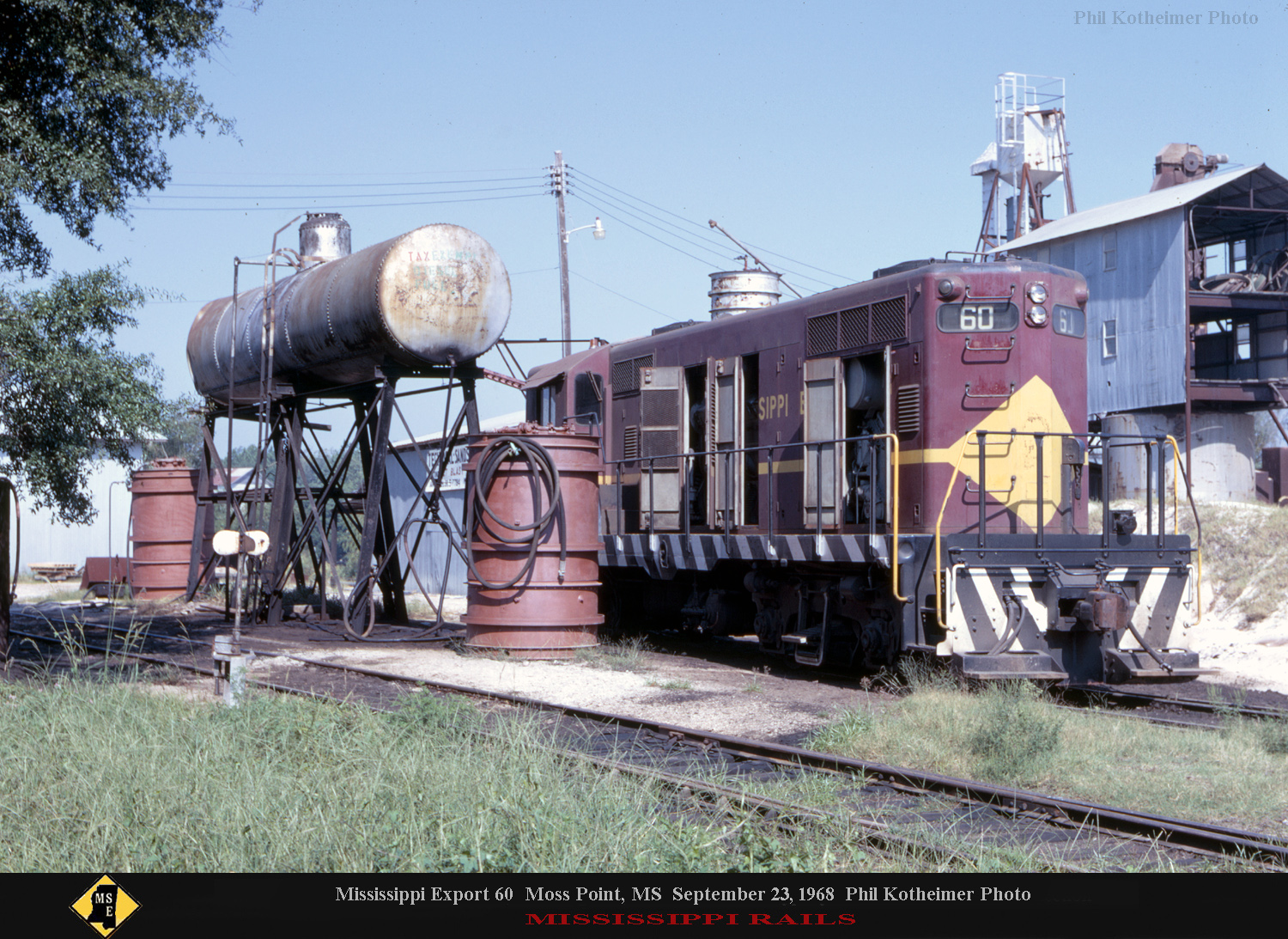

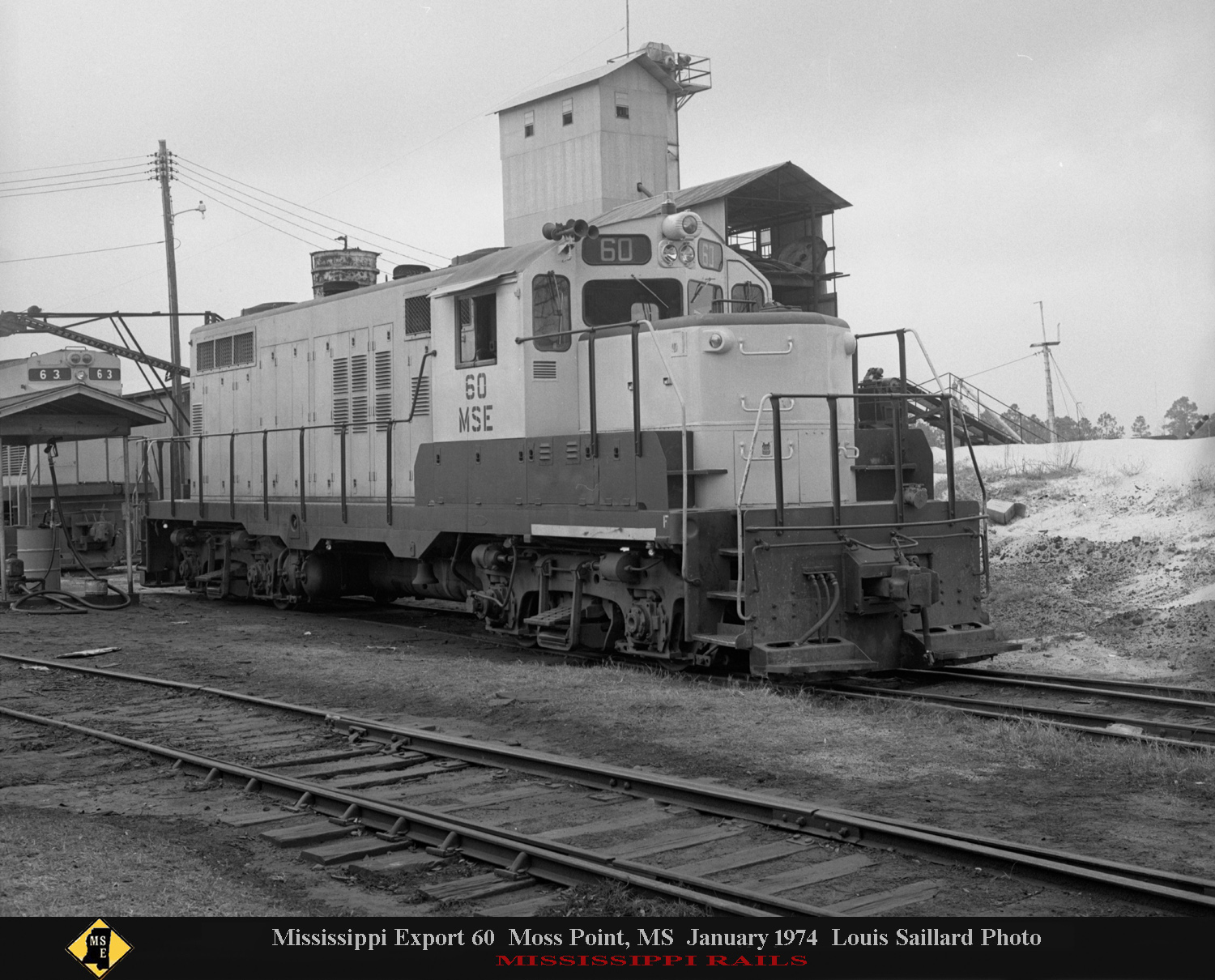

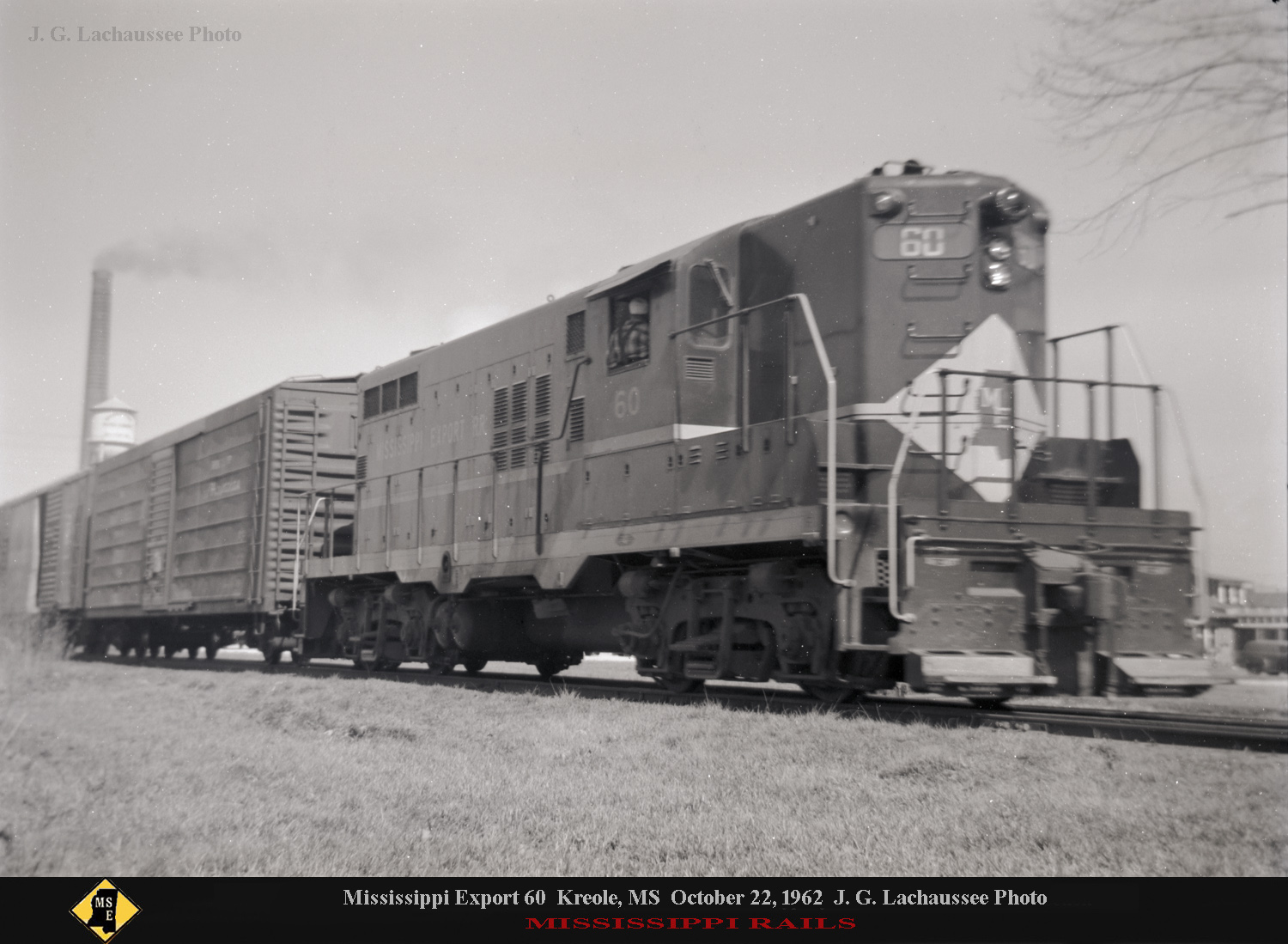

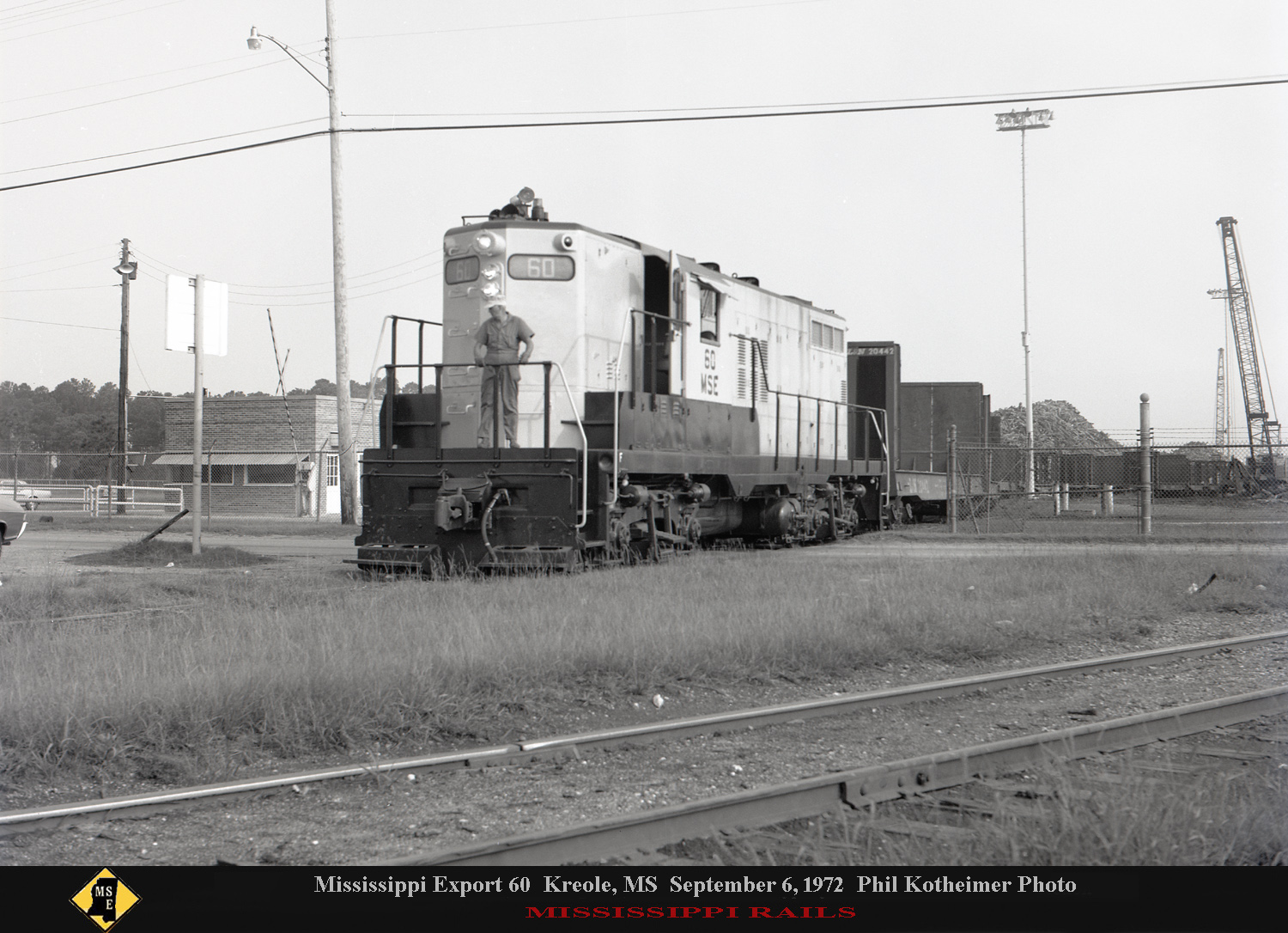

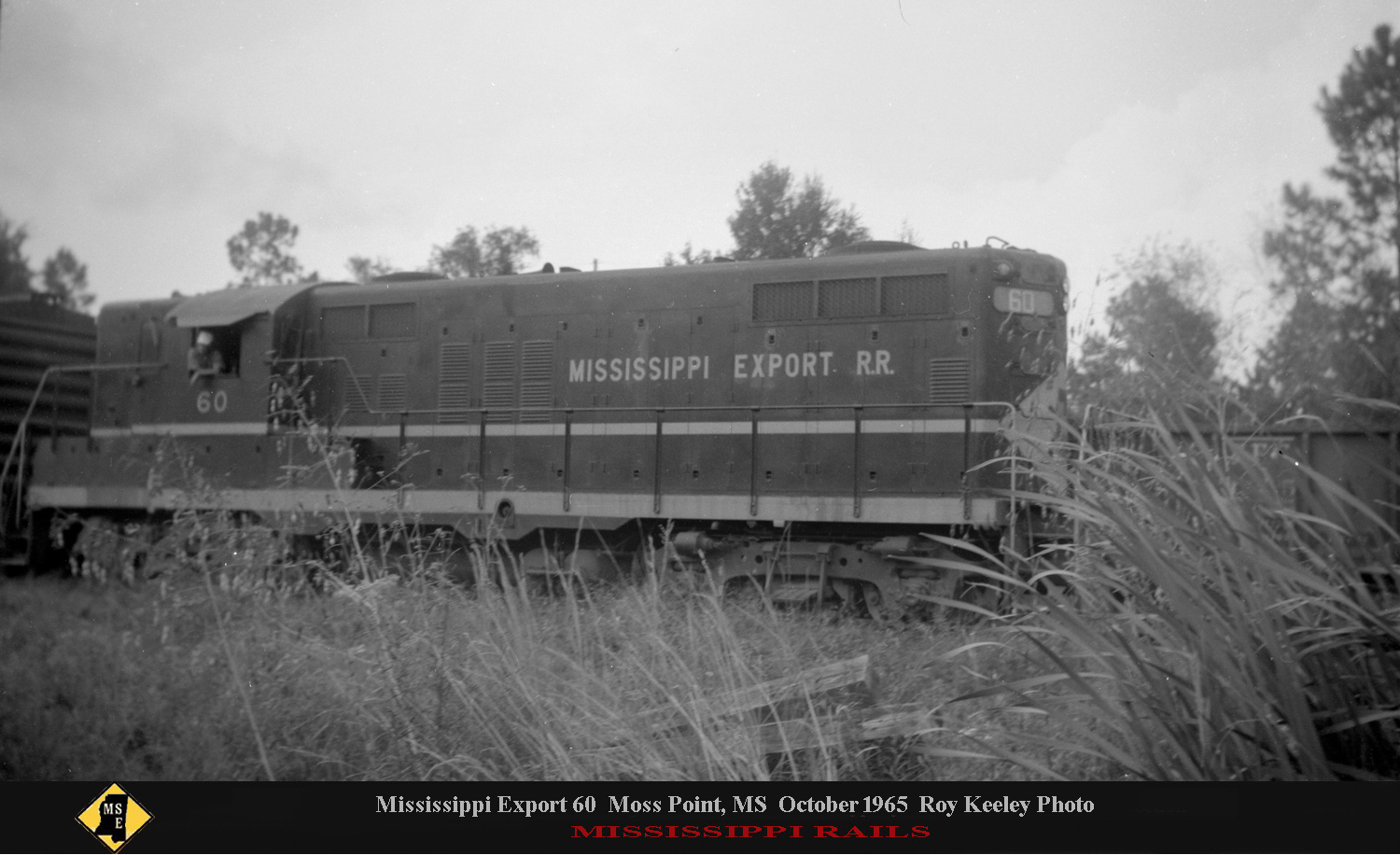

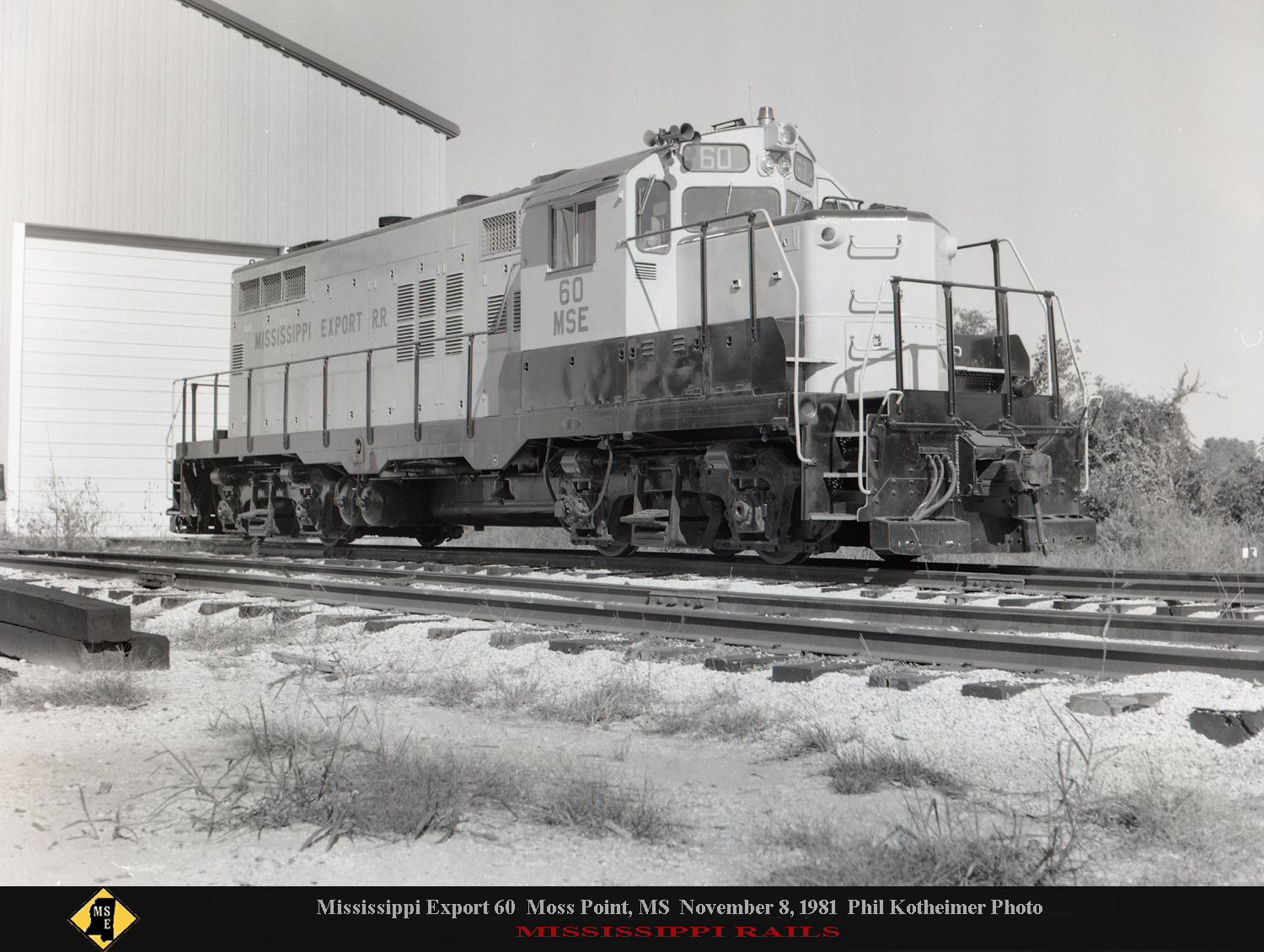

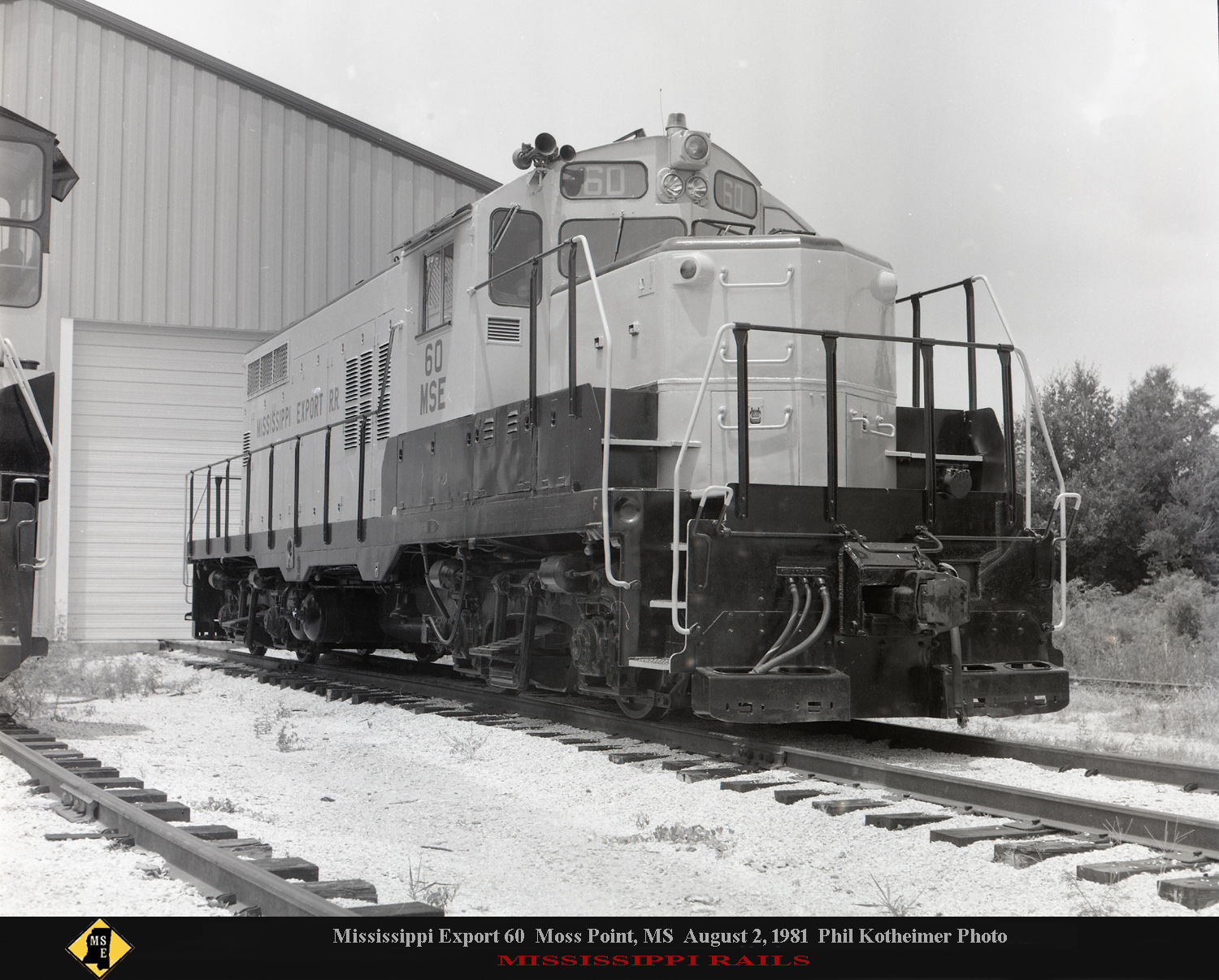

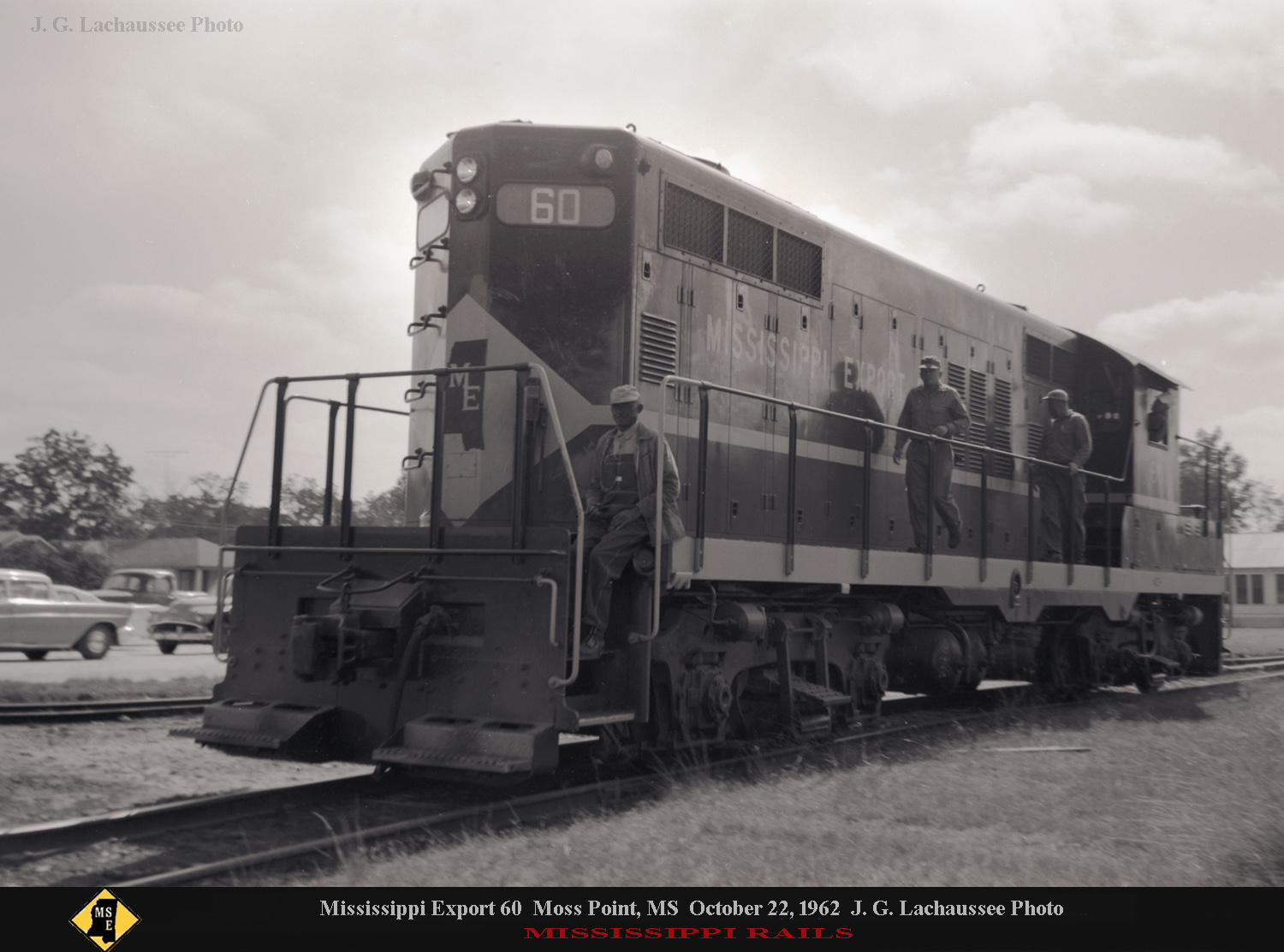

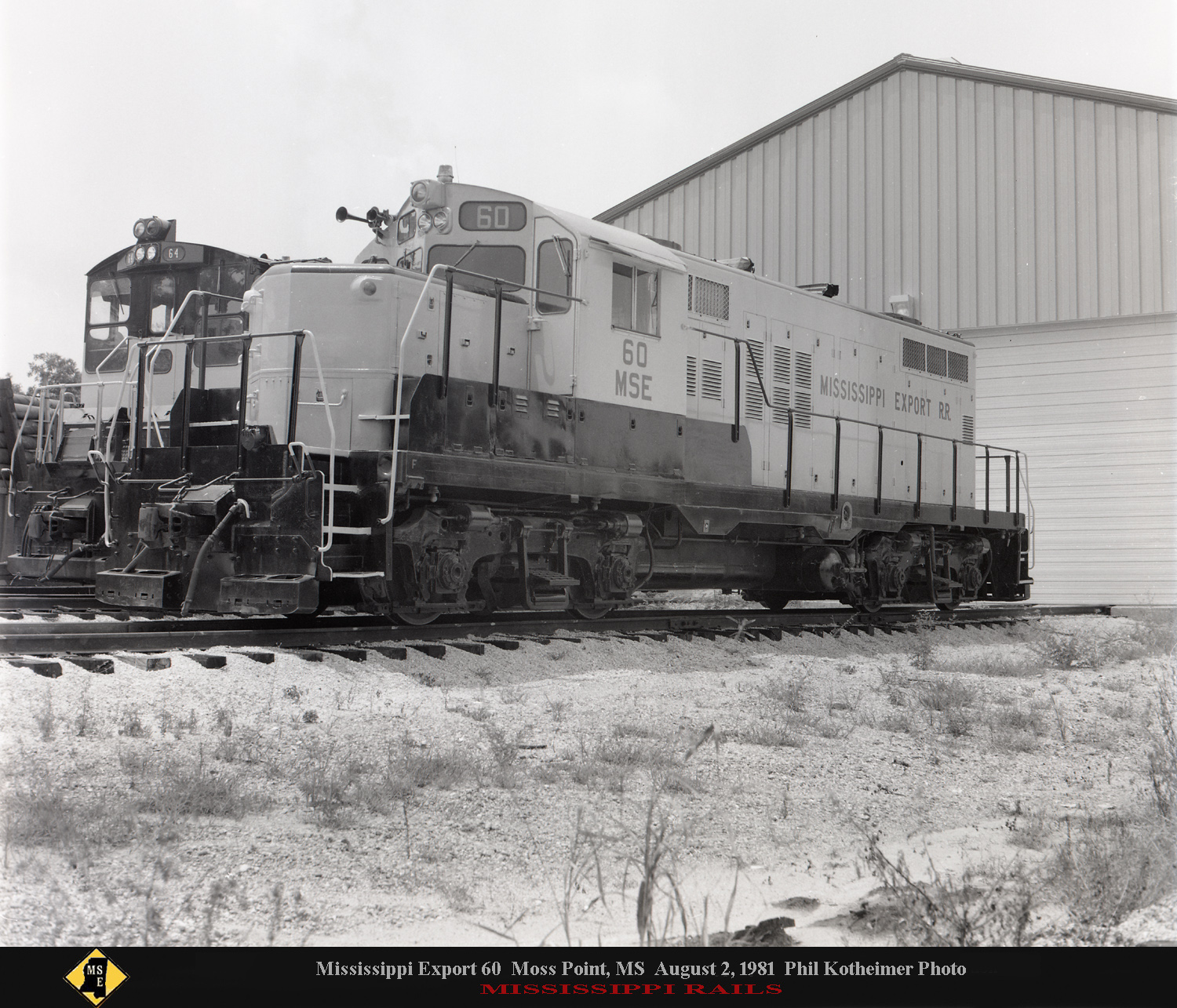

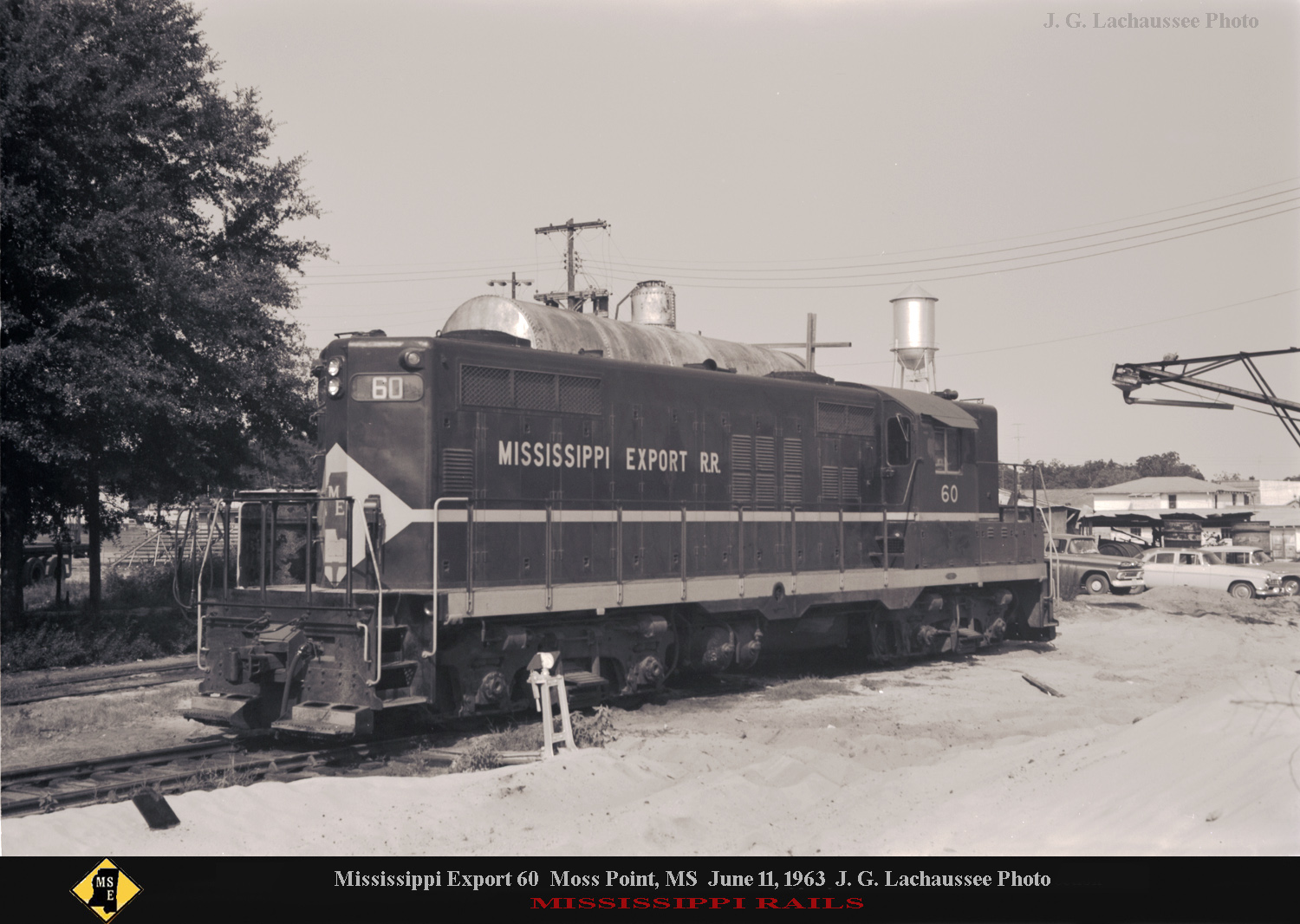

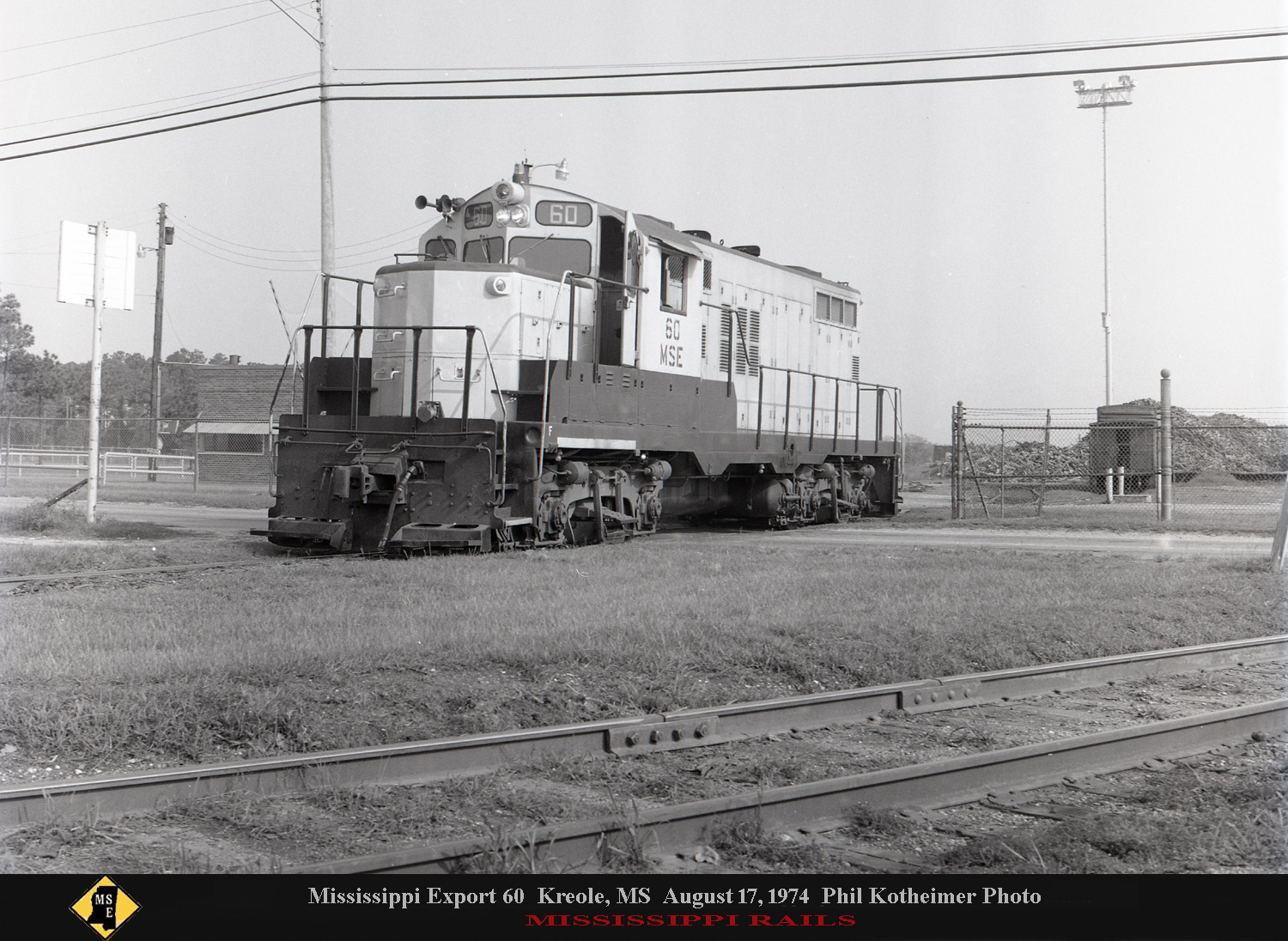

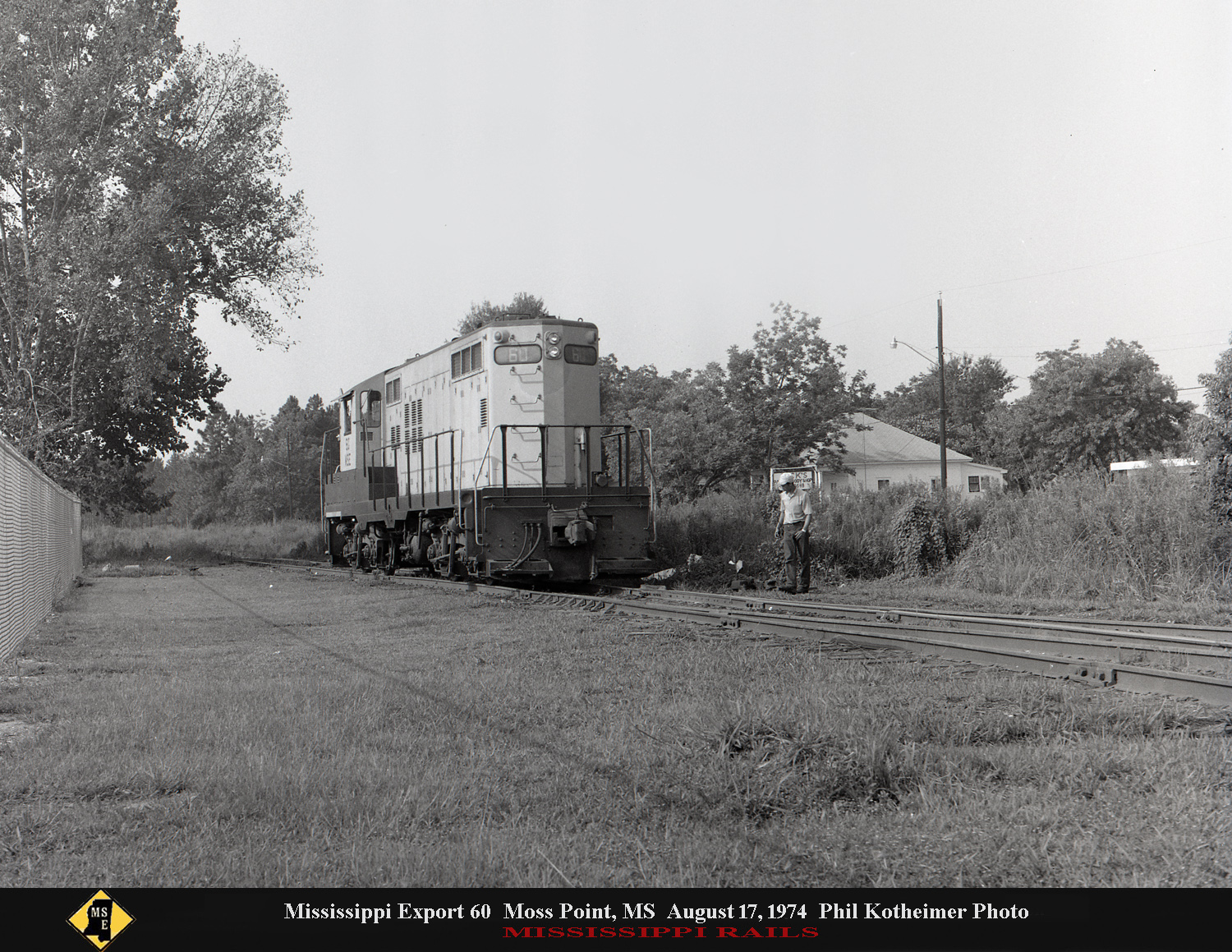

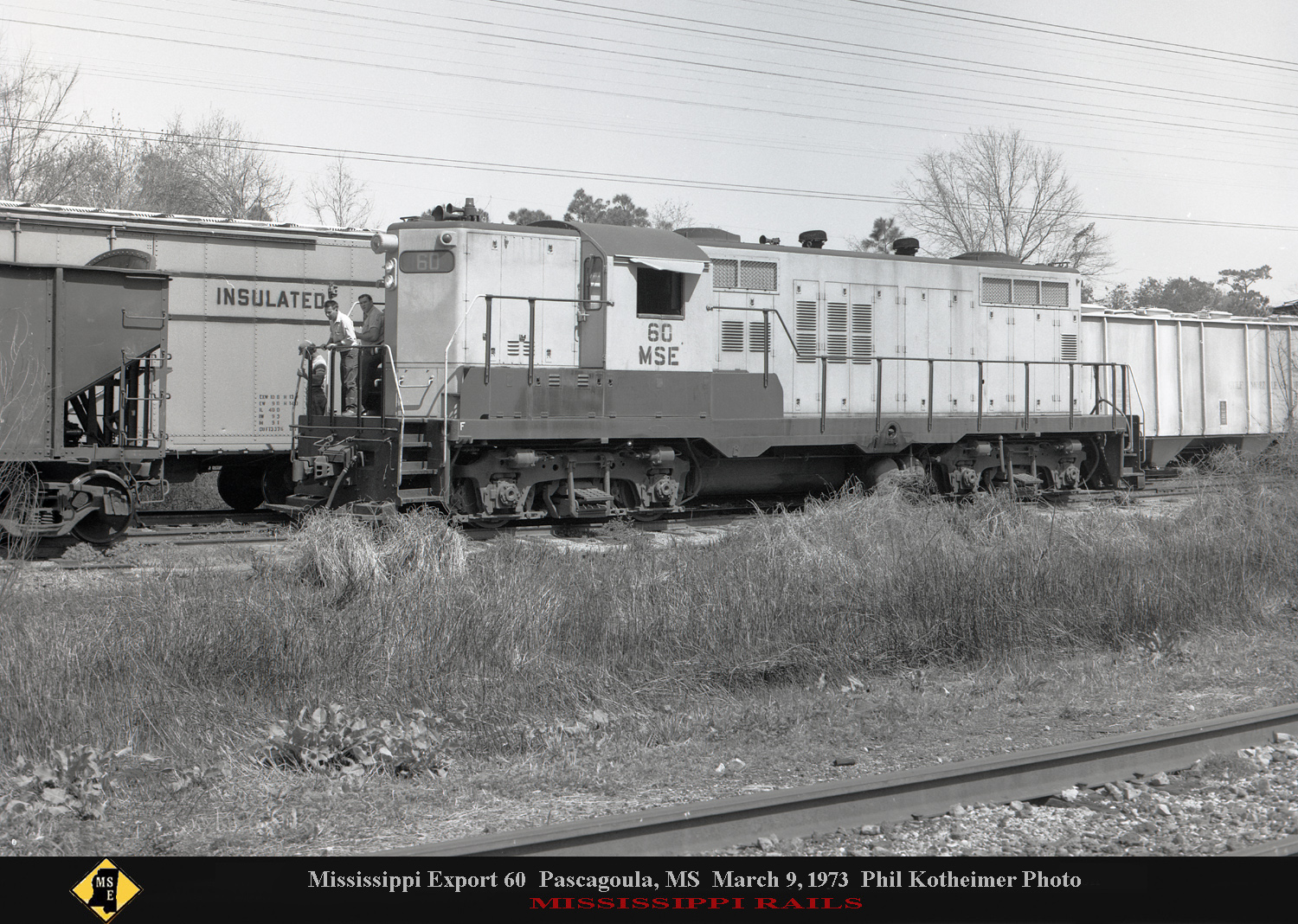

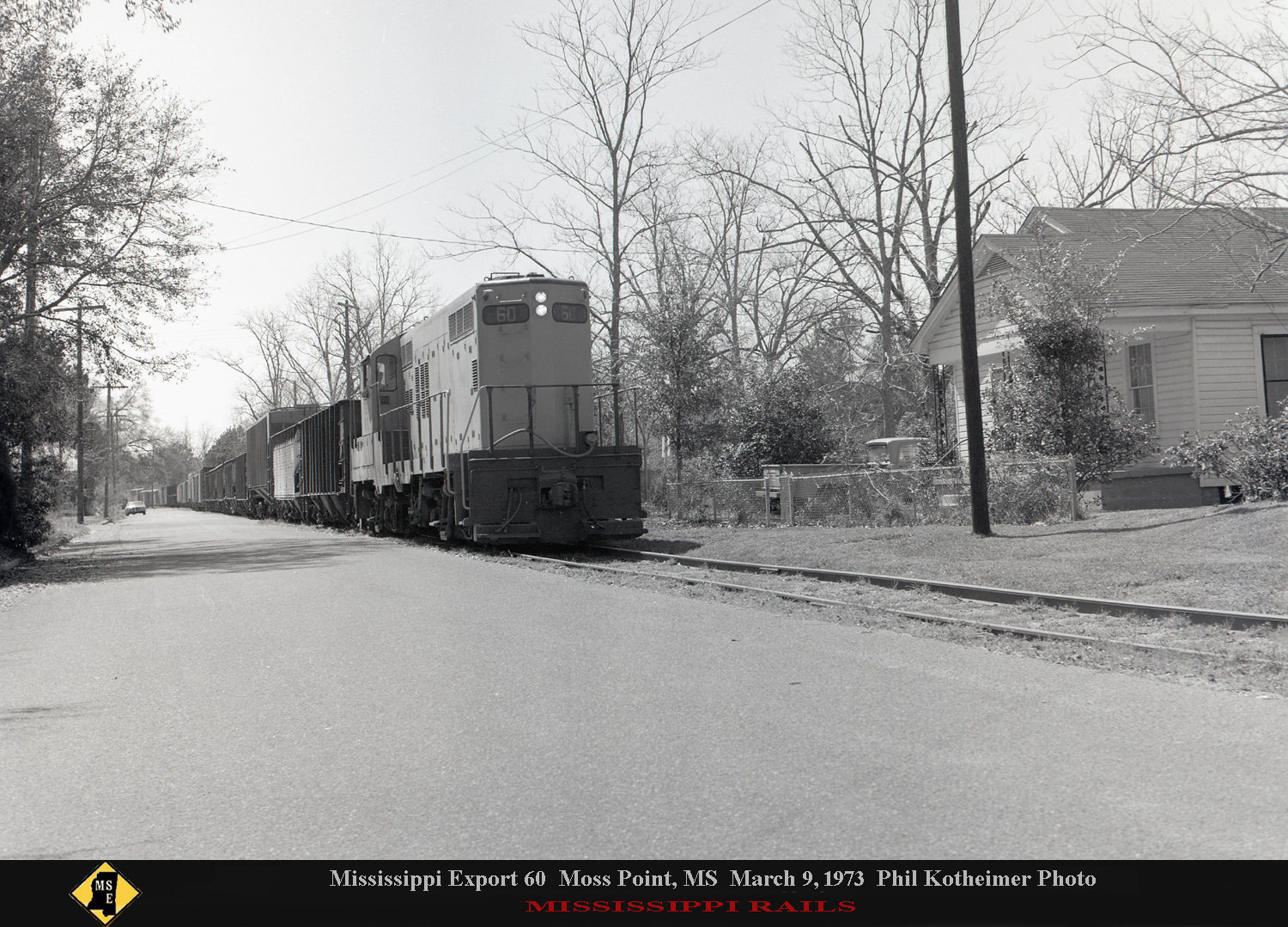

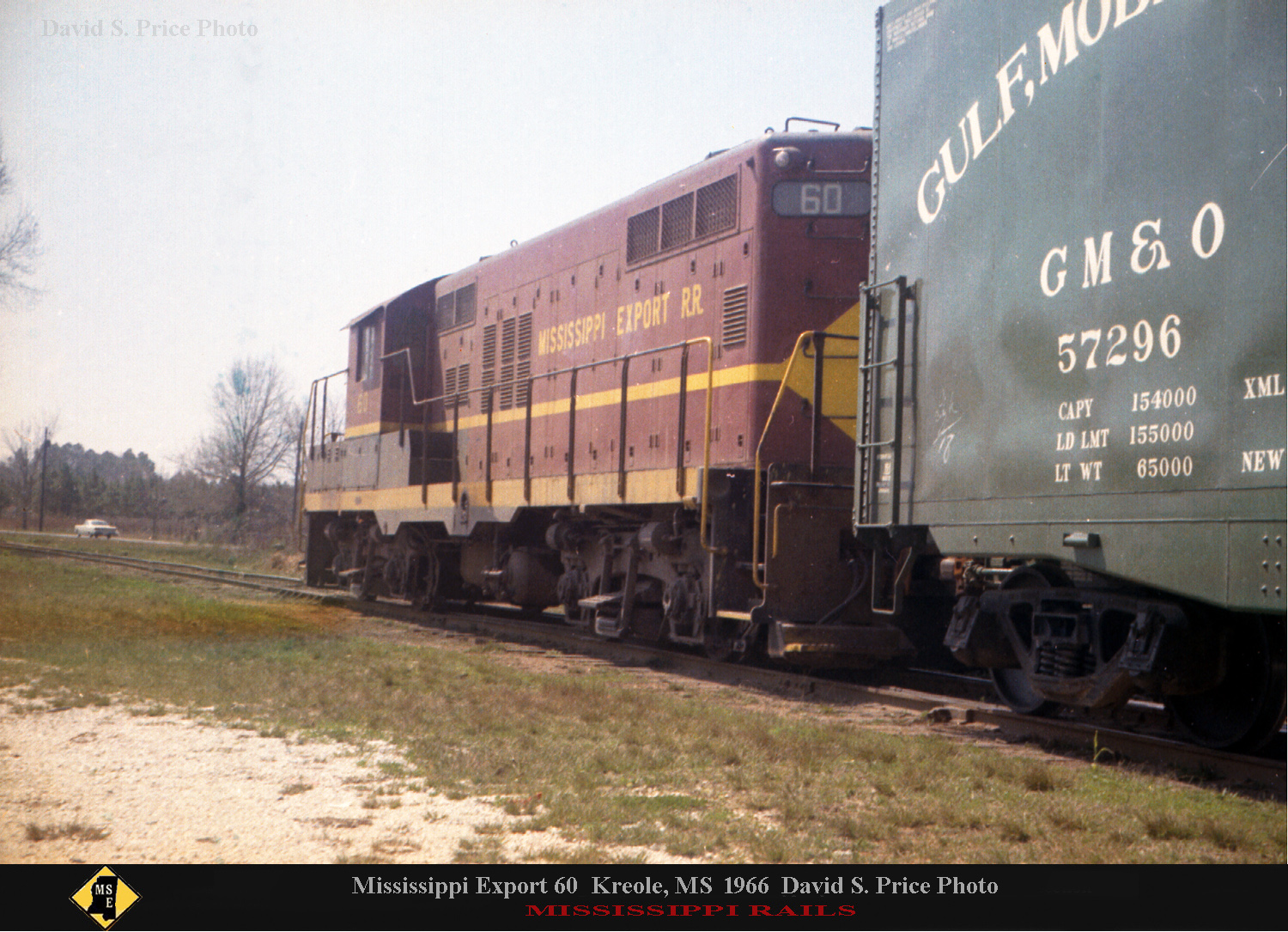

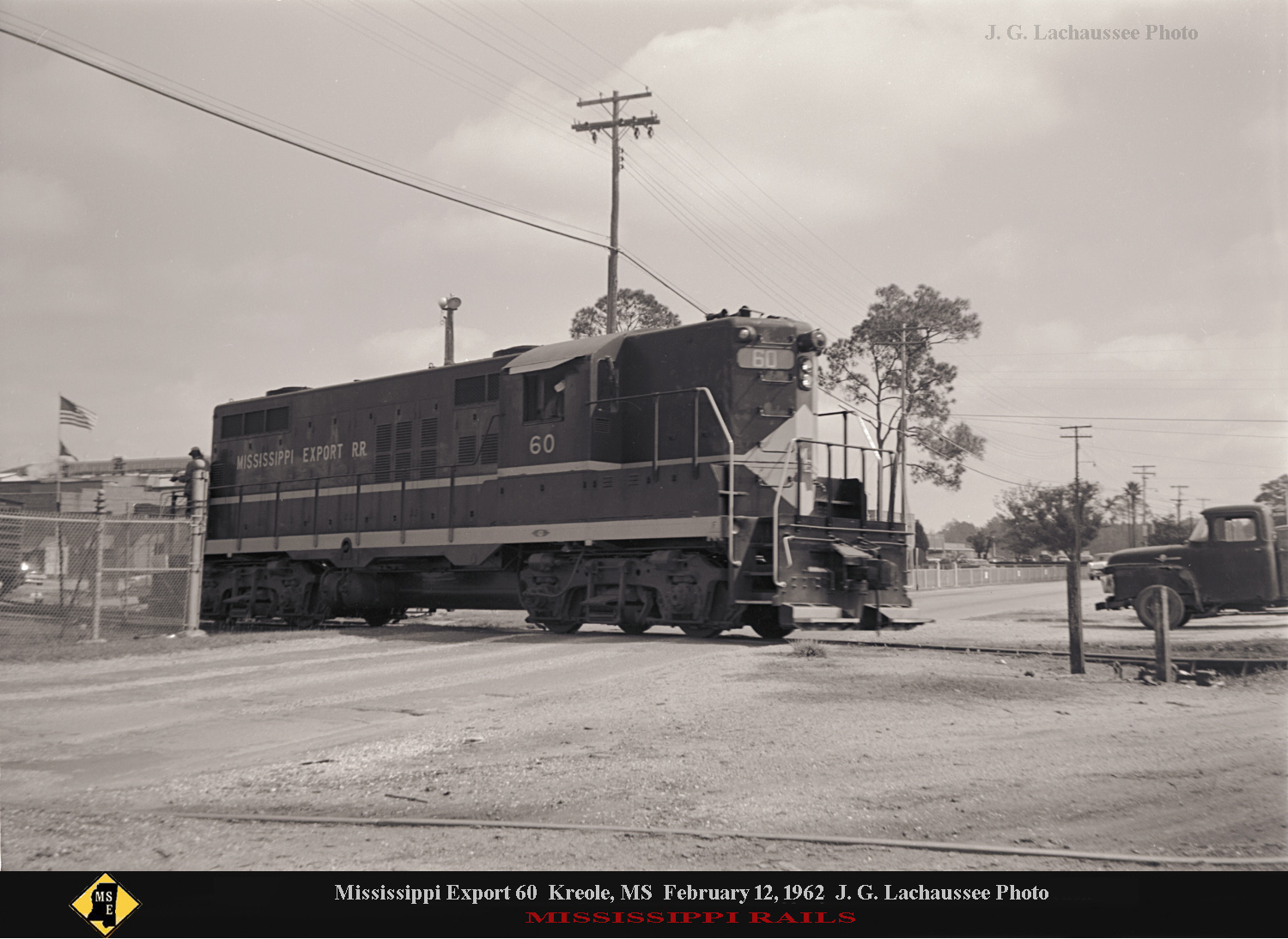

PHOTOS:
