Tuskegee Railroad

36" gauge, converted to standard Gauge in 1898

Headquarters: Tuskegee, AL

Years of Operation: 1869-1953

Predecessor Roads: none

Successor Roads: none

Miles Operated: Tuskegee to Chehaw, AL, 5.713 miles

Locomotives Owned:

Equipment

6/30/1888: Locomotives: 2. Cars: 1 passenger, 1 baggage, etc., 2 box, 4 flat, 1 other.

6/30/1895: Locomotives: 2. Cars: 2 passenger, 1 baggage, etc., 3 box, 4 flat.

  6/30/1914: Locomotives: 2. Cars: 1 passenger, 1 baggage, mail & express.

6/30/1916: Locomotives: 2. Cars: 2 passenger





Click Map for Larger Version

HISTORY by Gil Hoffman:

The original Tuskegee Rail Road Company was incorporated February 20, 1860, under special act of the State of Alabama. The company built 5.73 miles of 60-inch gauge railroad from Chehaw to Tuskegee, AL. It was operated until 1863 when it was wrecked as a consequence of the Civil War and operations ceased.

 On January 7, 1869, the property of the old company was sold at a sheriff’s sale to William G. Swanson and others, who entered into an agreement with E. T. Varner & Company, in February 1871, for a reconstruction of the road between Chehaw and Tuskegee, and equipping It by January 1872. Upon fulfillment of this agreement, the property would be transferred to the Varner Company.. The agreement was fulfilled and the property transferred to Varner on January 2, 1872. Afterwards the road was operated as a partnership by E. T. Varner & Company under the name Tuskegee Railroad Company until 1902, when transferred to a new company of the same name. The partnership was composed of E. T. Varner, L. V. Alexander and Campbell & Wright, each owning a third share.

The line built by E. T. Varner & Company from Tuskegee to Chehaw was a 36-inch gauge railroad laid on the right-of-way of the old Tuskegee Rail Road Company of 1860. The gauge was broadened to standard in August 1898.

The Tuskegee Railroad was incorporated in Alabama on October 8, 1902, for the purpose of acquiring a railroad owned by E. T. Varner & Company, which was done on October 18, 1902. The date of organization was October 8, 1902. Authorized capital stock was $75,000, all ow which was issued. The main purpose of the railroad was to facilitate entrance into the grounds of the Tuskegee Normal & Industrial Institute.

The line extended from a connection with the Western Railway of Alabama at Chehaw to the end of line at Tuskegee, 5.713 miles. As originally built, the railroad was narrow gauge, but was converted to standard in August 1898. The first two miles of the line was in the valley of a small stream, but from there to its end, the line rose on a broad plateau. The line was ballasted with cinders, gravel and sand.

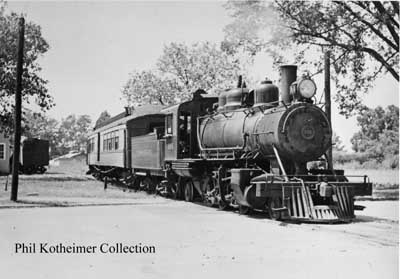

Tuskegee 101 and combine.

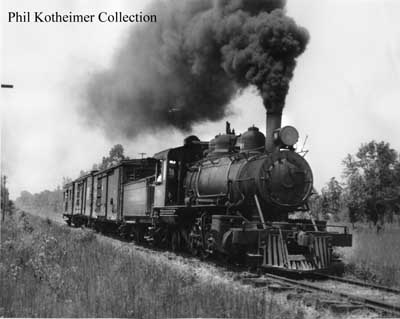

Tuskegee 2-6-2 No. 101 and mixed train.

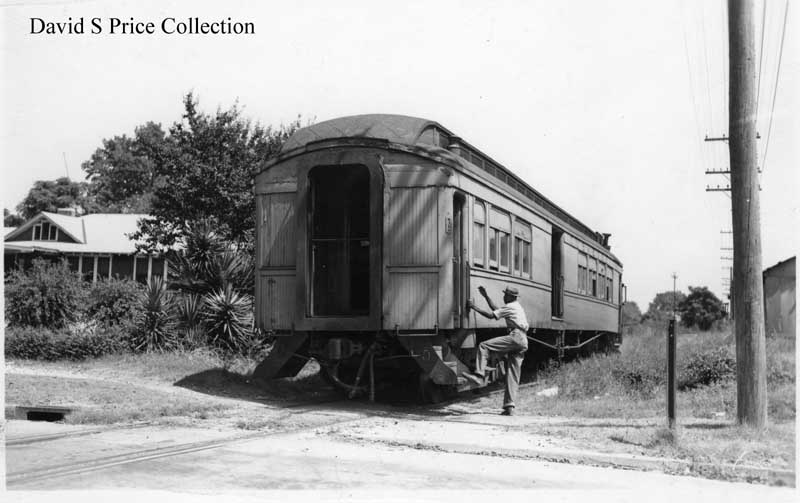

Tuskegee's wood divided "Jim Crow" combine.













Narrow Gauge ROSTER by Gil Hoffman:





Road No.



Type



Builder



C.N.



Date



Cyls.



Dri. Dia.



Engine

Wt.



Previous Ownership



Disposition



1



2-4-2T



Danforth



740



7/1871



9x12













New



Southern Iron & Equipment Co. #472.

Converted to 0-4-2T by SI&E Co..

Lane Brothers #7, Esmont, VA, on 2/23/1907.



2



0-4-4TB



Porter



332



6/1879



8x16



36







New, via E. T. Varner & Co.

Named Tuskegee



J. Thomas Bennett, Wadesboro, NC, by 10/1909.



3



0-4-4TB



Porter



1297



7/1891



9x14











New, via E. T. Varner & Co.



No record.



Standard Gauge ROSTER by Gil Hoffman:





Road No.



Type



Builder



C.N.



Date



Cyls.



Dri. Dia.



Engine

Wt.



Previous Ownership



Disposition



6



4-4-0



Baldwin



22019



4/1903



14x22



54



71000



New. Cost $6,000.

Baldwin class 8-22 C 122



In service 6/30/1918.



7



2-6-0



A/Rogers



38606



10/1905



17x22



50



87000



New.



East Alabama Lumber Co. #7, Tuskegee, AL, in 1928.



101



2-6-2



Baldwin



58057



10/1924



17x24



44



120000



New. Cost $21,250.

Baldwin class 10-28¼ D 172



T. R. Miller Mill Co. #101, Brewton, AL,

in 1954.

Herbert Hansen, Elgin, IL, in 7/1969.

Illinois Railway Museum, Union, IL



102



4-6-0



Rogers



5606



8/1900



18x26



56



129000



Mobile & Ohio #185.

Georgia Car & Locomotive Co. #540

Tuskegee R.R. #102, in 10/1925. Cost $9,000.



No record.



103



2-8-0



Baldwin



58614



8/1925



18x24



44



121000



Built for Cuban stock. Sold to:

Central Cespedes #8, Cuba

Wrecked in Florida enroute to Cuba. Returned to Baldwin and repaired. In stock for 6 years.

Sold to:

Birmingham Rail & Locomotive Co., on 7/24/1931.

Tuskegee R.R. #103, on 10/15/1931.

Baldwin class 10-30 E 227



Birmingham Rail & Locomotive Co. #1794.

U. S. Bureau of Reclamation #4, Yuma, AZ, on 5/18/1933.



124



4-6-0



Baldwin



23649



1/1904



19x24



56



140000



Mobile, Jackson & Kansas City #74.

New Orleans, Mobile & Chicago #74, in 12/1909.

Gulf, Mobile & Northern  #74, in 1/1917.

Re. #174 in 1923.

Georgia Car & Locomotive Co.

Tuskegee R.R. #124, on 2/17/1944. Cost $6,250.

Baldwin class 10-32 D 799



No record.



750



2-8-0



A/Cooke



65187



6/1924



19x26



48



141000



Built for Cuban stock. Shipped to:

High Point, Thomasville & Denton R.R. Engine G, High Point, NC, on 6/23/1924.

Re. #750.

Georgia Car & Locomotive Co. - Birmingham Rail & Locomotive Co. (joint account), on 5/26/1947.

Tuskegee R.R. #750, on 6/28/1947.

Cost $8,000.



No record.
