R. J. Darnell (1911-?)

Batesville Southwestern Railroad (1911-1931)

Standard Gauge 56-lb rail

Headquarters: Batesville, MS (Panola County)

Mill Capacity: 100,000 ft/day

Years of Operation: 1911-1931

Miles Operated: 17

Locomotives Owned

Equipment:

June 30, 1914- 2 locomotives, 7 freight, 2 service cars

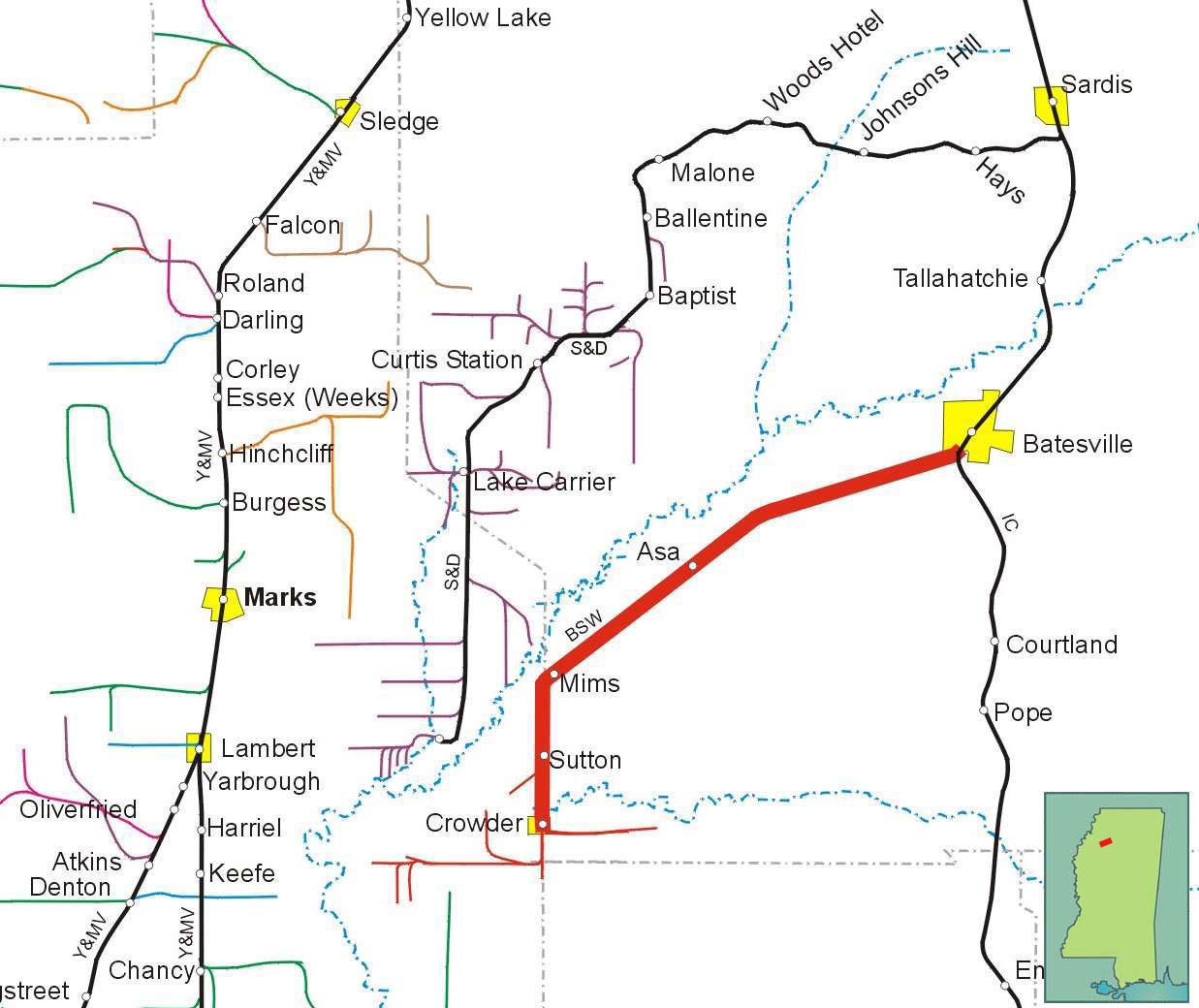

Click Map for Larger Version

History by  Tony Howe:

The Batesville Southwestern Railroad was incorporated on June 7, 1910 by R. J. Darnell, who was then operating a large mill at Memphis. A contract was signed with the Illinois Central to jointly build the Batesville Southwestern, with Darnell to maintain and operate the railroad, and the IC paid him $143 per mile per year. At the end of the twenty year contract, IC would become owner of the property. One provision of the contract was that it could be terminated by the IC at any time before the 20 years was up. Construction of the BSW commenced about June 1911, and Darnell began operating it as a common carrier in March 1912, but its construction wasn't complete until June 1914. In 1912 Darnell owned about 19,000 acres of timber in the area around Crowder, the end of the railroad. Darnell's mill at Memphis burned in June 1913, and a new mill was built at Batesville to replace it. This new mill opened on March 17, 1914. The mill closed and Darnell and the ICC approved the abandonment of the BSW on Feb. 5, 1931.



For more info, see court case involving the Batesville Southwestern here.

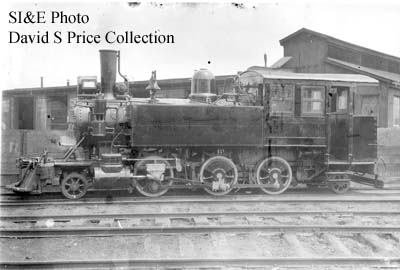

Batesville Southwestern 2-6-2T Number 11 at SI&E.

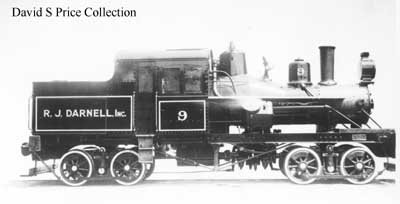

Builder's view of R. J. Darnell Heisler No. 9.



























ROSTER by Gil Hoffman:







Road No.



Type



Builder



C.N.



Date



Cyls.



Dri. Dia.



Engine

Wt.



Previous Ownership



Disposition



2



17-2

Heisler



Stearns



1087



1906



10x10



30



34000



R. J. Darnell, Inc. #2, Darling, MS

Transferred to Darnell operation at Batesville, MS.



Riechman-Crosby Co., Memphis, TN (dealer), in 1915.

Melton Lumber Co., Micanopy, FL



5



26-2

Heisler



Heisler



1202



1910



12x10



30



52000



New by Batesville Southwestern R.R.



In service 6/30/1915.

Louisiana-Arkansas Lumber Co., Wilmot, AR



6



4-6-0



Brooks







1892



18x24











Unknown.

Batesville Southwestern R.R. #6

In service 6/30/1915.







7



2-4-2T



Vulcan



1670



12/1910



13x18



36



66500



Naples & Northwestern R.R. #3, Naples, TX

Birmingham Rail & Locomotive Co. #1137

R. J. Darnell, Inc. #7, Batesville, MS,

on 4/4/1917.







9



32-2

Heisler



Heisler



1361



1917



12x12



33



64000



New by R. J. Darnell, Inc.



R. J. Hackney Lumber Co. #9, Ravenswood, LA

Turner Lumber Co. #9, Lemoyen, LA

Derelict at Lemoyen, 1956.



10



2-8-0



Baldwin



7157



2/1884



19x24



50



105000



New York, West Shore & Buffalo Ry. #145

Buffalo, Rochester & Pittsburgh Ry. #67,

in 8/1887.

New Baldwin boiler in 1897. Rebuilt by BR&P Ry. in 1897 with 19" bore.

Southern Iron & Equipment Co. #1478

Batesville Southwestern R.R. #10,

on 9/24/1919. Cost $11,500.

Baldwin class 10-34 E 383



Southern Iron & Equipment Co. #1990, on 9/13/1924, in trade on #11.

Legan & McClure Lumber Co. #6, Estes, MS, on 10/8/1924.

Lamiss Lumber Co., Estes, MS, on 4/6/1931.



11



0-6-0T



Porter



3107



12/1904



14x20



42



82000



Nelson & Albemarle Ry., Schuyler, VA

Built as 2-6-2T.

Southern Iron & Equipment Co. #1939

Converted to 0-6-0T.

Batesville Southwestern R.R. #11,

on 9/13/1924. Cost $5,000 with $2,500 allowed in trade on #10.



Southern Iron & Equipment Co. #2483
