Union Springs & Northern Railway (1901-1911)

Birmingham & Southeastern Railway (1911-?)

Standard Gauge 56 and 60-lb. rail

Headquarters: Tallassee, AL after 1911

Years of Operation: 1901-?

Predecessor Roads: Tallassee & Montgomery Ry

Successor Roads: none

Miles Operated: Union Springs, AL to Eclectic, AL, 46.894 miles

Locomotives Owned:

Equipment

1903: Locomotives: 2. Cars: 2 passenger, 1 baggage, etc., 1 flat.

6/30/1914: Locomotives: 5. Cars: 4 passenger, 3 combination, 2 freight, 1 service.

6/30/1918: Locomotives: 4. Cars: 4 passenger, 3 flat, 2 camp.





Click Map for Larger Version

HISTORY by Gil Hoffman:

The Union Springs & Northern Railway was incorporated in Alabama on March 8, 1901, and was controlled by W. M Blount. Authorized capital stock was $100,000. On April 26, 1911, the name was changed by charter amendment to Birmingham & Southeastern Railway. On June 24, 1912, the company purchased the property of the Tallassee & Montgomery Railway. The B&SE was controlled by W. M. Blount and F. J. Lisman.

 The Tallassee & Montgomery Railway was incorporated in Alabama on August 10, 1895, and was controlled through stock ownership by the Tallassee Falls Manufacturing Company

The line extended from Union Springs, AL in a northerly direction to Eclectic, AL, 46.894 miles. It connected with the Central of Georgia at Union Springs, the Seaboard Air Line at Fort Davis, and the Western Railway of Alabama at Milstead. The line from Union Springs to Fort Davis, 7.50 miles, was built by the Union Springs & Northern Railway and opened for operation in November 1901. From Fort Davis to Milstead, AL, 20.00 miles, was completed and in operation about June 1912, and from Tallassee to Eclectic, 14.42 miles, completed and in operation on June 15, 1913. The entire 41.92 miles of road between Union Springs and Eclectic was built under contract by W. N. Blount. The section between Tallassee and Montgomery, 6.28 miles, acquired from the Tallassee & Montgomery Railway on June 24, 1912, was constructed between September 1895 and March 1896.

The railroad traversed gently rolling country. The line contained 95 timber trestles and one metal bridge over the Tallapoosa River, consisting of two 150-foot through-truss spans on three granite piers. Nearly 75 percent of the rail was new 60-lb. rail. The remained was 60 and 56-lb. relay rail.


REFERENCE



1. “Birmingham & Southeastern Railway Company,” Valuation Docket No. 670, Interstate Commerce Commission Reports, Vol. 135, p. 34-65.

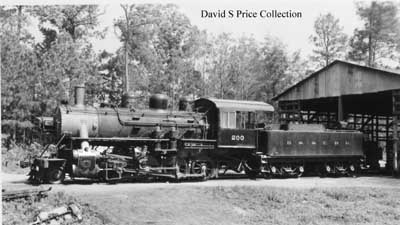

B&SE No. 200 was bought from Alco in 1926.

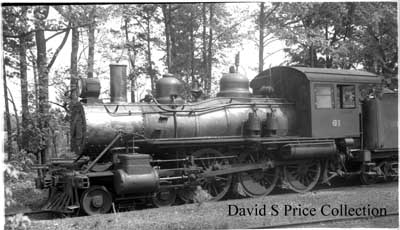

Birmingham & Southeastern No. 61 was bought new in 1913.

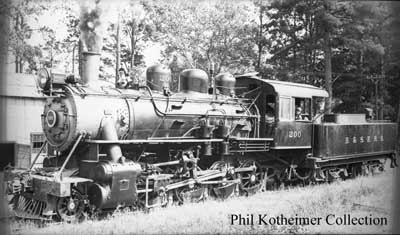

B&SE No. 200 at Tallassee on April 29, 1961.

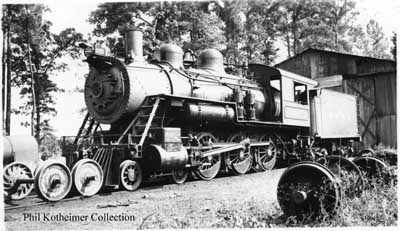

B&SE No. 227 at Tallassee, AL shops on September 14, 1939.

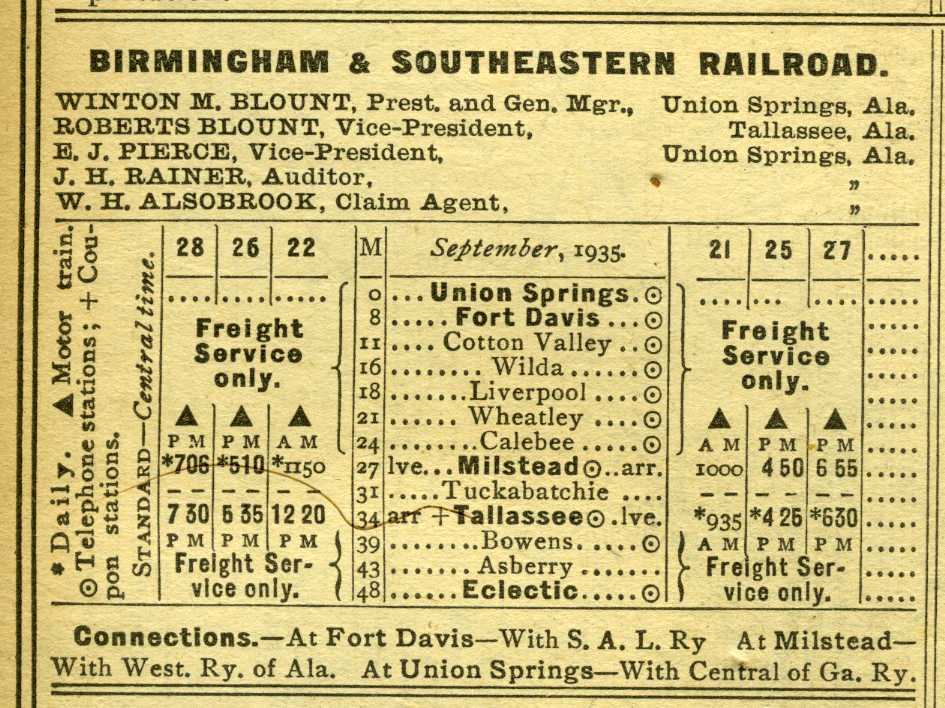

March 1937 Official Guide of the Railways- Tony Howe Collection















ROSTER by Gil Hoffman:





Road No.



Type



Builder



C.N.



Date



Cyls.



Dri. Dia.



Engine

Wt.



Previous Ownership



Disposition



?



No Data



























Unknown.

Union Springs & Northern #?, in 1901.



Birmingham & Southeastern #?,

on 4/26/1911.

Dropped by 6/30/1918.



29



4-6-0



Rogers



4320



6/1890



18x24



54



102000



Atlanta & West Point #29

Union Springs & Northern #29, in 1902.



Birmingham & Southeastern #29,

on 4/26/1911.

Scrapped 1934.



61



4-6-0



Baldwin



39485



3/1913



17x24



60



108000



New. Cost $10,452.

Baldwin class 10-28 D 137



Scrapped 1937.



63



4-6-0



Baldwin



40310



8/1913



17x24



60



108000



New. Cost $10,452.

Baldwin class 10-28 D 138



Scrapped 1939.



100



4-4-0



Baldwin



14551



11/1895



14x22



56



60000



Tallassee & Montgomery Ry. #1 Anna Roman, Tallassee, AL

Birmingham & Southeastern #100, on 6/24/1912.

Baldwin class 8-22 C 114



Out of service & derelict by 1933.

Scrapped 1940.



200



2-8-0



A/Cooke



65188



1923



19x26



48



141000



Stock engine built for export to Cuba. Shipped to Birmingham & Southeastern #200, on 3/5/1926.



Retired 1953.

Stephen P. Bogan, Hartford, CT, in 1963.

Valley R.R. #97, Essex, CT, in 1969.



227



2-6-0



Rogers



5901



3/1903



21x28



61



180800



Atlanta & West Point R.R. #24.

Built as 4-6-0.

Re. #227 in 1907.

Birmingham & Southeastern #227,

in 1923. Converted to 2-6-0.



Wrecked and scrapped, 4/1953.
